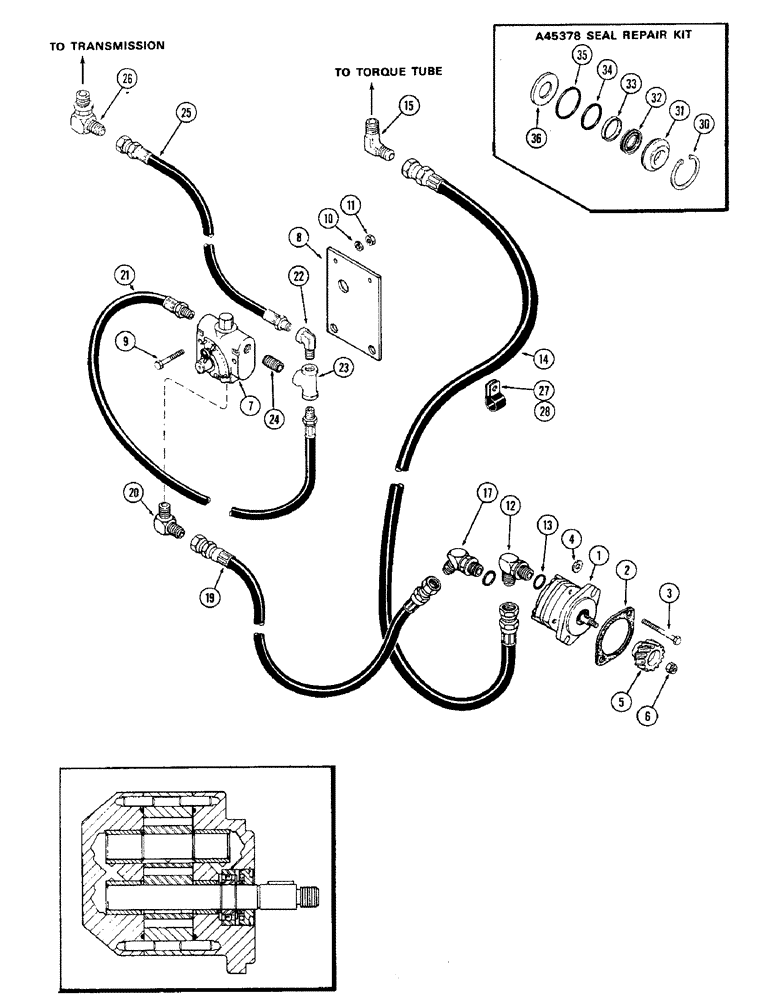

Запчасти Case IH 2470 (217C) - A77254 AUXILIARY HYDRAULIC KIT, 11 GPM (08) - HYDRAULICS

A77254

KIT - auxiliary hydraulics (11 GPM) (Mach. item), Includes: Ref. 1 - 28

1шт.

1

A139693

PUMP

- auxiliary (11 GPM) (See A45378 kit)

1шт.

2

A58617

GASKET

-, Serial Range: pump-block

1шт.

3

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

2шт.

4

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16"

2шт.

5

L43703

GEAR

- drive

1шт.

6

131-58

LOCK NUT,1/2"-20, G5

NUT - 1/2" N.F. Esna lock

1шт.

7

A139696

VALVE

- variable flow

1шт.

8

A139609

BRACKET

- valve mounting

1шт.

9

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 3/4" tube x 11/16", 90 degrees, Incl. Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 15/16 x 1-5/32 x 1/8"

1шт.

14

A141005

HOSE - inlet, 3/4" I.D. x 100" long

1шт.

15

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 3/4" O.D., 37 degrees

1шт.

17

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 3/4" tube x 5/8" O.D., 37 degrees, Incl. Ref 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 15/16 x 1-5/32 x 1/8"

1шт.

19

A141008

HOSE,0.50" ID x 16.00", SAE 100R2

- Outlet 0.50" ID x 16.00", SAE 100R2

1шт.

20

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 3/4" tube x 5/8" O.D., 90 degrees

1шт.

21

A141012

HOSE

- by-pass, 3/8" I.D. x 22" long

1шт.

22

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 1/2", 90 degree street

1шт.

23

221-1424

TEE,Pipe, 1/2" NPT

- 1/2" street

1шт.

24

221-1185

FITTING

NIPPLE - 1/2 x 1-1/8" pipe

1шт.

25

A141011

HOSE - return, 1/2" I.D. x 107" long

1шт.

26

218-499

ELBOW - 7/8" P.T. x 5/8" O.D.

1шт.

27

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- hose

1шт.

28

T50104

CLAMP

- hose

1шт.

A45378

SEAL

KIT - pump seal repair, A45378, Includes: Ref. 30 - 36

1шт.

30

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , brg, outer, seal, A45378 repair kit 1.375", Int, #137

1шт.

31

A45377

SEAL

RETAINER - seal, A45378 repair kit

1шт.

32

A45374

RING

- guard, 15/16 x 1-3/16 x , A45378 seal repair kit

1шт.

33

A45376

COLLAR

- "O" ring, 53/64 x 15/16 x 7/64", A45378 seal repair kit

1шт.

34

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - 15/16 x 1-1/8 x 3/32", A45378 seal repair kit

1шт.

35

A59066

O-RING,1.239" ID x 1.379" OD

"O" RING - 1-1/4 x 1-3/8 x 1/16", A45378 seal repair kit

1шт.

36

A45375

WASHER

- back-up, A45378 seal repair kit

1шт.
