Запчасти Case IH 2470 (215A) - A75812 REMOTE HYDRAULICS VALVE ASSYEMBLY, USED PRIOR TO TRACTOR SERIAL NO. 8713156 (08) - HYDRAULICS

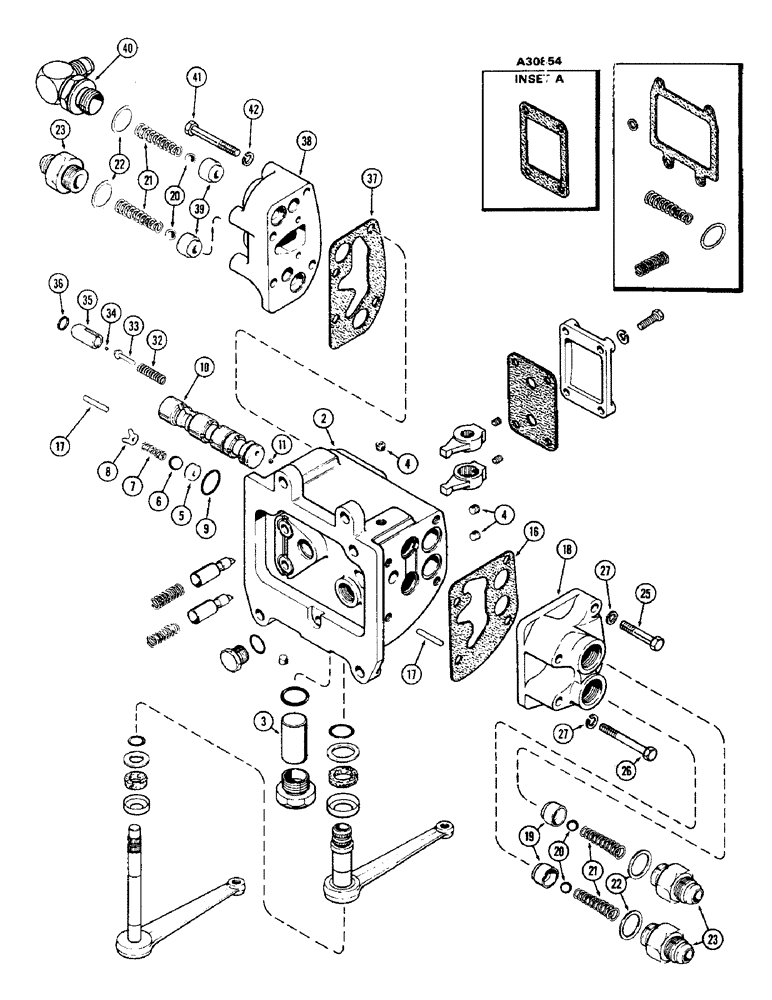

Схема запчастей Case IH 2470 - (215A) - A75812 REMOTE HYDRAULICS VALVE ASSYEMBLY, USED PRIOR TO TRACTOR SERIAL NO. 8713156 (08) - HYDRAULICS
18
2
36
17
23
4
25
21
4
22
16
37
26
10
22
3
23
5
11
20
41
32
8
6
20
40
33
19
9
38
35
39
17
42
27
7
21
34
27

Артикул

Название

Примечание

Количество

A75812

VALVE

ASSY. - twin dual remote hyds. (Not illust.), Includes: Ref. 2 - 42

1шт.

2

A63763

BODY

ASSY. - hydraulic valve, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket)

3шт.

5

NSS

NOT SOLD SEPARAT

SEAT - check, valve body ball

4шт.

6

211-15

BALL,5/8" Dia

- (.) 5/8" Dia

4шт.

7

A27452

SPRING

- check, hyd. valve outlet (1-1/8" free length)

4шт.

8

A27364

GUIDE

- ball check spring

4шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - (59/64 x 1-1/32 x 7/64") (Replaces A58602)

4шт.

Part of seal Kit P/N A43086

1шт.

10

A57538

SPOOL

ASSY. - hyd. valve, Includes: Ref. 11

2шт.

11

211-5

BALL,3/16" Dia

- (.) 3/16" Dia

1шт.

16

A57560

GASKET

- hyd. valve head

1шт.

Part of seal Kit P/N A43086

1шт.

17

A57559

SPOOL

- auxiliary, hyd. valve

4шт.

18

A57564

VALVE

HEAD ASSY. - hyd. valve, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - auxiliary valve head

2шт.

20

211-13

BALL,1/2" Dia

- return, hyd. valve 1/2" Dia

4шт.

21

A30877

SPRING

- check, return ball (2-1/4" free length)

4шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

4шт.

Part of seal Kit P/N A43086

1шт.

23

A64708

FITTING

- valve

3шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

27

92-6

LOCK WASHER,3/8"

4шт.

32

A57396

SPRING

- relief valve ball (1-7/64" free length)

2шт.

33

A62272

GUIDE

- thermal valve ball

2шт.

34

211-3

BALL,1/8" Dia

- (.) 1/8" Dia

2шт.

35

A62273

SEAT

- thermal valve

2шт.

36

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal valve (3/8 x 9/16 x 3/32")

2шт.

Part of seal Kit P/N A43086

1шт.

37

A57561

GASKET

- hyd. valve head

1шт.

Part of seal Kit P/N A43086

1шт.

38

A57565

VALVE

HEAD ASSY. - hyd. valve, Includes: Ref. 39

1шт.

39

NSS

NOT SOLD SEPARAT

SEAT - auxiliary valve head

2шт.

40

A63536

FITTING

- 90 degree elbow

1шт.

41

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.)

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 38
