(214) - A76471 REMOTE HYDRAULICS VALVE ASSYEMBLY, 1ST USED TRACTOR SERIAL NO. 8713156

Запчасти Case IH 2470 (214) - A76471 REMOTE HYDRAULICS VALVE ASSYEMBLY, 1ST USED TRACTOR SERIAL NO. 8713156 (08) - HYDRAULICS

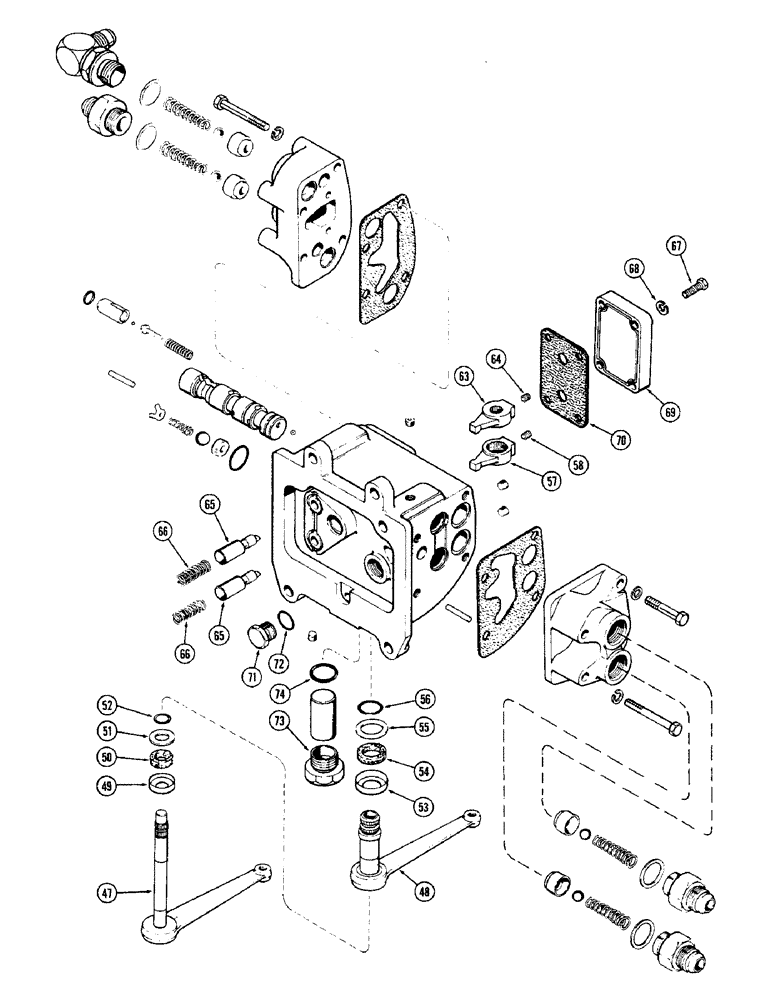

Схема запчастей Case IH 2470 - (214) - A76471 REMOTE HYDRAULICS VALVE ASSYEMBLY, 1ST USED TRACTOR SERIAL NO. 8713156 (08) - HYDRAULICS
74
63
65
55
68
48
51
54
56
66
50
67
57
47
69
58
70
53
72
52
66
65
49
73
64
71
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A76471

VALVE

ASSY. - twin dual remote hyds., Includes: Ref. 47 - 74

1шт.

47

A75757

LEVER

- shifter shaft (Outer)

1шт.

48

A75755

LEVER

- shifter shaft (Inner)

1шт.

49

A30875

RETAINER

- felt washer

1шт.

Part of seal Kit P/N A43086

1шт.

50

A30853

WASHER

- felt (1/2 x 15/16 x 1/4")

1шт.

Part of seal Kit P/N A43086

1шт.

51

A27409

WASHER

- seal, spool (33/64 x 63/64 x 1/32")

1шт.

Part of seal Kit P/N A43086

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle (1/2 x 11/16 x 3/32")

1шт.

Part of seal Kit P/N A43086

1шт.

53

A30880

RETAINER

- felt washer

1шт.

Part of seal Kit P/N A43086

1шт.

54

A30879

WASHER

- felt (3/4 x 1-3/16 x 1/4")

1шт.

Part of seal Kit P/N A43086

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, spool (49/64 x 1-15/64 x 1/32")

1шт.

Part of seal Kit P/N A43086

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal, shaft (3/4 x 15/16 x 3/32")

1шт.

Part of seal Kit P/N A43086

1шт.

57

A57546

ARM

ASSY. - hyd. valve spool shifter lever (Inner), Includes: Ref. 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

63

A57547

ARM

ASSY. - hyd. valve spool shifter lever (Outer), Includes: Ref. 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

65

A63765

PLUNGER

- hyd. valve spool (Inner & outer)

2шт.

66

A66472

SPRING

- plunger, valve spool (1-21/32" free length)

2шт.

67

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

68

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

69

A66435

CAP

- hyd. valve body

1шт.

70

A76374

GASKET

- hyd. valve body cap

1шт.

Part of seal Kit P/N A43086

1шт.

71

86512512

PLUG,7/8" - 14 ORB

- Incl. Ref. 72 Hex Hd, 7/8"-14 ORB

1шт.

72

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

Part of seal Kit P/N A43086

1шт.

73

A34392

PLUG

- pilot relief valve

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

Part of seal Kit P/N A43086

1шт.

A43086

SEAL

KIT - seal (Includes Refs. 9, 16, 22, 36, 37, 49 - 56, 70, 72 and 74)

1шт.

Выбрано товаров: 37
