Запчасти Case IH 2470 (213A) - A77128 REMOTE HYDRAULIC VALVE (08) - HYDRAULICS

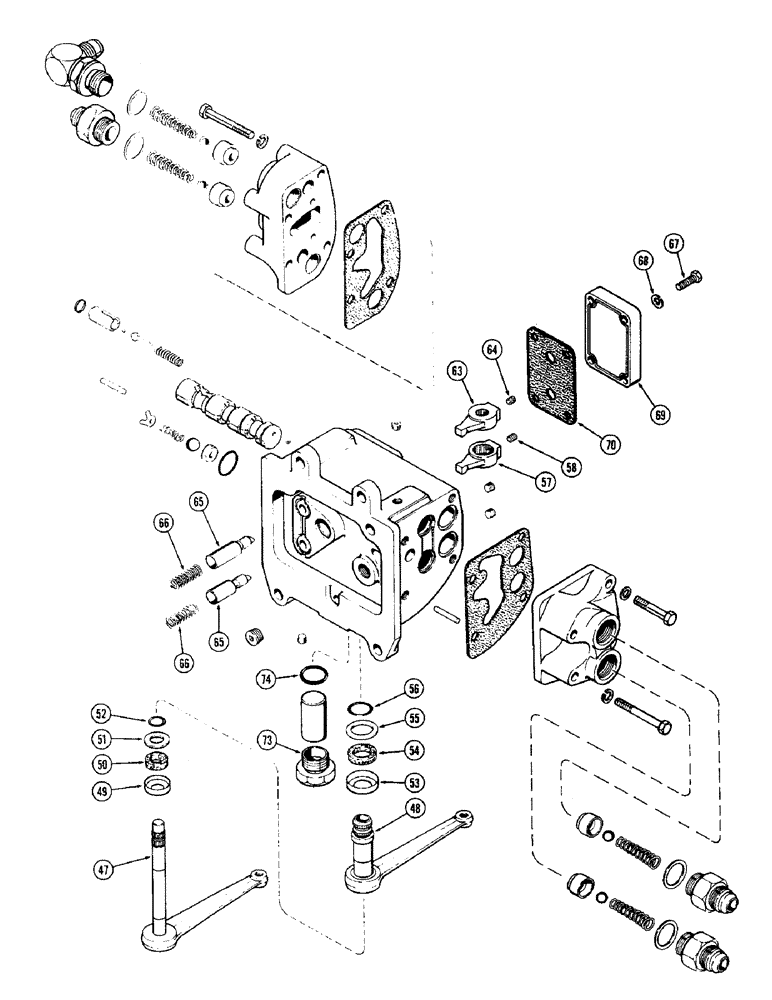

Схема запчастей Case IH 2470 - (213A) - A77128 REMOTE HYDRAULIC VALVE (08) - HYDRAULICS
73
56
54
53
66
69
67
48
65
74
52
58
51
70
68
63
66
64
57
47
55
49
65
50

Артикул

Название

Примечание

Количество

A77128

VALVE

ASSY. - remote hydraulic, Includes: Ref. 47 - 74

1шт.

47

A75757

LEVER

- shifter shaft (Outer)

1шт.

48

A75755

LEVER

- shifter shaft (Inner)

1шт.

49

A30875

RETAINER

- felt washer

1шт.

Part of seal Kit P/N A43086

1шт.

50

A30853

WASHER

- felt, 1/2 x 15/16 x 1/4"

1шт.

Part of seal Kit P/N A43086

1шт.

51

A27409

WASHER

- seal, spool (33/64 x 63/64 x 1/32")

1шт.

Part of seal Kit P/N A43086

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - 1/2 x 11/16 x 3/32"

1шт.

Part of seal Kit P/N A43086

1шт.

53

A30880

RETAINER

- felt washer

1шт.

Part of seal Kit P/N A43086

1шт.

54

A30879

WASHER

- felt, 3/4 x 1-3/16 x 1/4"

1шт.

Part of seal Kit P/N A43086

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, spool (49/64 x 1-15/64 x 1/32")

1шт.

Part of seal Kit P/N A43086

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

Part of seal Kit P/N A43086

1шт.

57

A57546

ARM

ASSY. - valve spool shifter (Inner), Includes: Ref. 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex. sckt. hdless cup pt. set

1шт.

63

A57547

ARM

ASSY. - valve spool shifter (Outer), Includes: Ref. 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex. sckt. hdless cup pt. set

1шт.

65

A63765

PLUNGER

- valve spool (Inner & outer)

2шт.

66

A66472

SPRING

- plunger, valve spool (1-21/32" free length)

2шт.

67

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

68

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

69

A66435

CAP

- valve body

1шт.

70

A76374

GASKET

- cap

1шт.

Part of seal Kit P/N A43086

1шт.

73

A34392

PLUG

- pilot relief valve

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Part of seal Kit P/N A43086

1шт.

A43086

SEAL

KIT - seal (Incl. Refs. 9, 16, 22, 36, 37, 49 - 56, 70, 72 and 74)

1шт.

Выбрано товаров: 34
