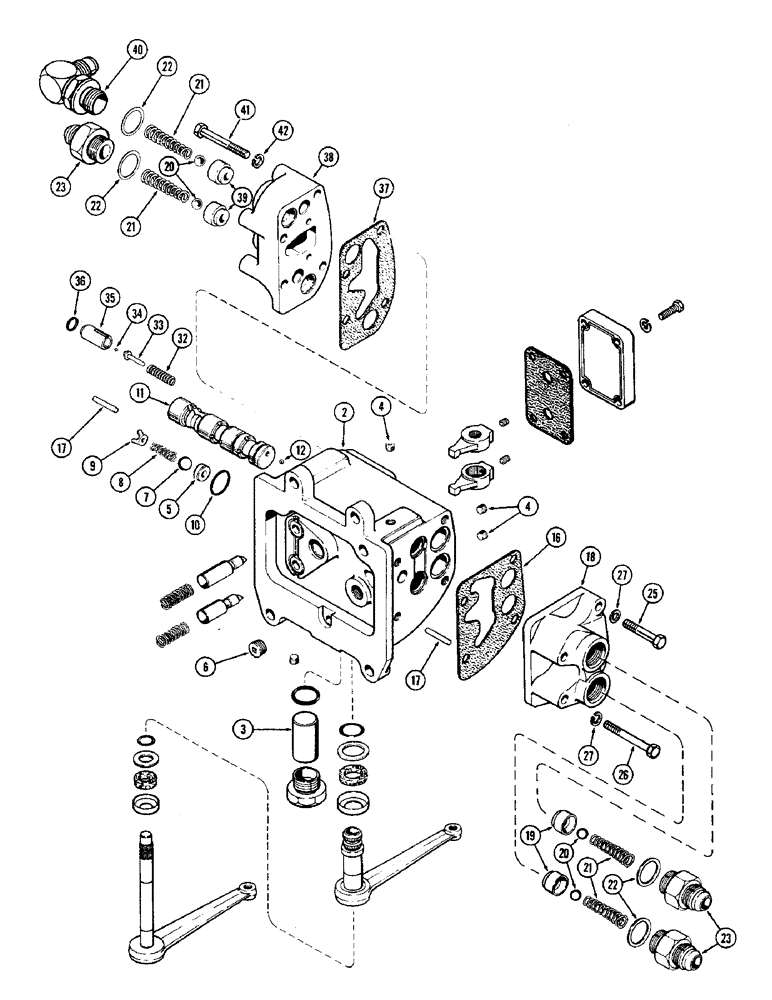

Запчасти Case IH 2470 (212) - A77128 REMOTE HYDRAULIC VALVE (08) - HYDRAULICS

A77128

VALVE

ASSY. - remote hydraulic (Replaces A76471), Includes: Ref. 2 - 42

1шт.

2

A66724

BODY

ASSY. - valve, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" hex. sckt. hd. pipe

3шт.

5

NSS

NOT SOLD SEPARAT

SEAT - check valve

4шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" hex. sckt. hd. pipe

1шт.

7

211-15

BALL,5/8" Dia

- . steel 5/8" Dia

4шт.

8

A27452

SPRING

- check valve (1-1/8" free length)

4шт.

9

A27364

GUIDE

- ball check spring

4шт.

Part of seal Kit P/N A43086

1шт.

10

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - 59/64 x 1-1/32 x 7/64"

4шт.

11

A66469

SPOOL

ASSY. - valve, Includes: Ref. 12

2шт.

12

211-5

BALL,3/16" Dia

- . steel 3/16" Dia

1шт.

16

A57560

GASKET

- valve head

1шт.

Part of seal Kit P/N A43086

1шт.

17

A57559

SPOOL

- auxiliary, valve

4шт.

18

A57564

VALVE

HEAD ASSY. - valve, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

20

211-13

BALL,1/2" Dia

- return, valve 1/2" Dia

4шт.

21

A66473

SPRING

- check, return ball (2-5/16" free length)

4шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

4шт.

Part of seal Kit P/N A43086

1шт.

23

A64708

FITTING

- valve

3шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

27

92-6

LOCK WASHER,3/8"

4шт.

32

A57396

SPRING

- relief valve ball (1-7/64" free length)

2шт.

33

A62272

GUIDE

- thermal valve ball

2шт.

34

211-3

BALL,1/8" Dia

- . steel 1/8" Dia

2шт.

35

A62273

SEAT

- thermal valve

2шт.

36

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32"

2шт.

Part of seal Kit P/N A43086

1шт.

37

A57561

GASKET

- valve head

1шт.

Part of seal Kit P/N A43086

1шт.

38

A57565

VALVE

HEAD ASSY. - valve, Includes: Ref. 39

1шт.

39

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

40

A63536

FITTING

- 90 degree elbow

1шт.

41

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.
