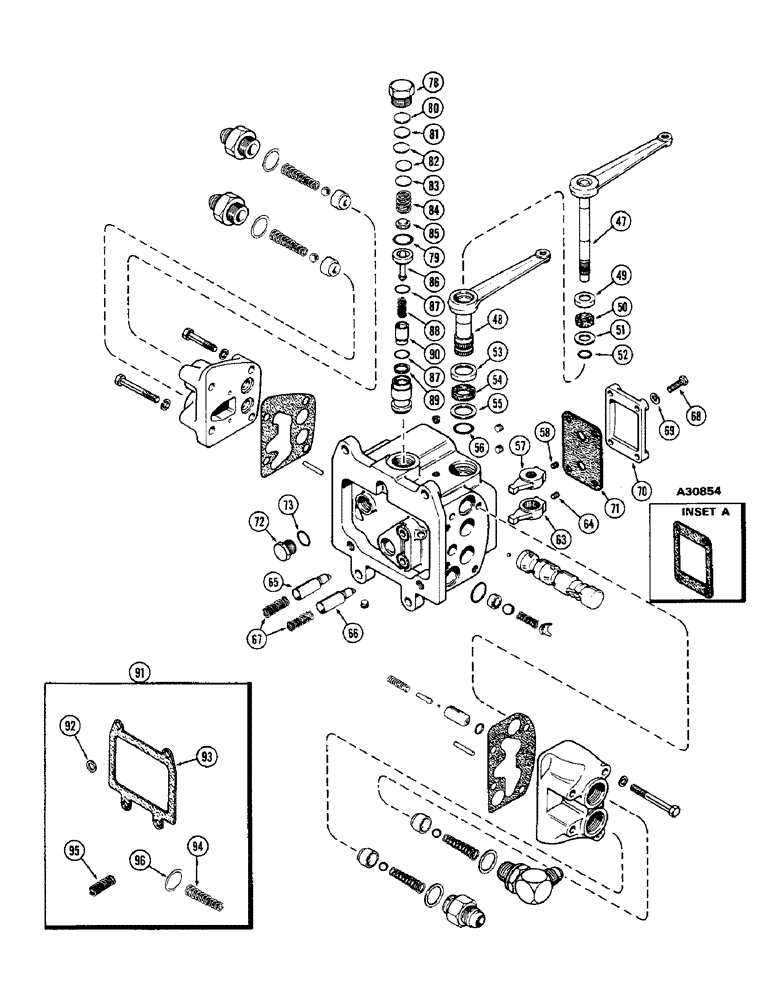

Запчасти Case IH 2470 (211C) - A75754 REMOTE HYDRAULICS VALVE ASSYEMBLY, USED PRIOR TO TRACTOR SERIAL NO. 8712994 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A75754
VALVE
ASSY. - single dual remote hyds., Includes: Ref. 47 - 90
1шт.
47
A75757
LEVER
- shifter shaft (Outer)
1шт.
48
A75755
LEVER
- shifter shaft (Inner)
1шт.
49
A30875
RETAINER
- felt washer
1шт.
Part of seal Kit P/N A43086
1шт.
50
A30853
WASHER
- felt (1/2 x 15/16 x 1/4")
1шт.
Part of seal Kit P/N A43086
1шт.
51
A27409
WASHER
- spool seal (33/64 x 63/64 x 1/32")
1шт.
Part of seal Kit P/N A43086
1шт.
52
A64836
O-RING,0.487" ID x 0.693" OD
"O" RING - outer handle (1/2 x 11/16 x 3/32")
1шт.
Part of seal Kit P/N A43086
1шт.
53
A30880
RETAINER
- felt washer
1шт.
Part of seal Kit P/N A43086
1шт.
54
A30879
WASHER
- felt (3/4 x 1-3/16 x 1/4")
1шт.
Part of seal Kit P/N A43086
1шт.
55
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER - spool seal (49/64 x 1-15/64 x 1/32")
1шт.
Part of seal Kit P/N A43086
1шт.
56
A64837
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - shaft seal (3/4 x 15/16 x 3/32")
1шт.
Part of seal Kit P/N A43086
1шт.
57
A57546
ARM
ASSY. - valve spool shifter lever (Inner), Includes: Ref. 58
1шт.
58
178-875
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set (1/4 x 1/4" N.C. hex. sckt., hdless. cup pt.)
1шт.
63
A57547
ARM
ASSY. - valve spool shifter lever (Outer), Includes: Ref. 64
1шт.
64
178-875
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set (1/4 x 1/4" N.C. hex. sckt., hdless, cup pt.)
1шт.
65
A57554
PLUNGER
- hydraulic valve spool (Inner) (w/o hole)
1шт.
66
A57555
PLUNGER
- hydraulic valve spool (Outer) (w/hole)
1шт.
67
A30883
SPRING
- plunger, hydraulic valve spool
2шт.
68
13-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd
4шт.
69
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
70
A57552
CAP
- hydraulic valve body
1шт.
71
A76374
GASKET
- hyd. valve body cap (Replaced A30854, see inset A)
1шт.
Part of seal Kit P/N A43086
1шт.
72
86512512
PLUG,7/8" - 14 ORB
- Incl. Ref. 73 Hex Hd, 7/8"-14 ORB
1шт.
73
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - (5/8 x 3/4 x 3/32")
1шт.
Part of seal Kit P/N A43086
1шт.
78
A34392
PLUG
- pilot relief valve
1шт.
79
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - (3/4 x 59/64 x 1/8")
1шт.
Part of seal Kit P/N A42888
1шт.
Part of seal Kit P/N A43086
1шт.
80
A34694
SHIM,.0201" Thk
Pilot relief spring .0201" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
81
A34817
SHIM,.0149" Thk
Pilot relief spring (Blue) .0149" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
82
A34391
SHIM,.0149" Thk
Pilot relief spring .0149" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
82
A34390
SHIM,.0329" Thk
Pilot relief spring .0329" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
83
A34839
WHEEL
SHIM - pilot relief spring (.010")
1шт.
Refer to tag attached to valve for shim data.
1шт.
84
A34492
SPRING
- pilot relief
1шт.
85
A57558
RETAINER
- pilot spring
1шт.
86
A57556
PISTON
ASSY. - pilot
1шт.
87
A17526
O-RING,0.614" ID x 0.754" OD x 0.7"
"O" RING - pilot relief sleeve (5/8 x 3/4 x 1/16")
2шт.
Part of seal Kit P/N A42888
1шт.
Part of seal Kit P/N A43086
1шт.
88
A34382
SPRING
- pilot relief valve
1шт.
89
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
- pilot relief valve
1шт.
Part of seal Kit P/N A42888
1шт.
Part of seal Kit P/N A43086
1шт.
90
A57553
PISTON
- pilot relief valve
1шт.
A43086
SEAL
KIT - seal (Includes Refs. 9, 16, 22, 36, 37, 49 - 56, 71, 73, 79, 87 and 89)
1шт.
A42888
KIT
- seal (Includes Refs. 79, 87 and 89)
1шт.
91
A44704
KIT
- remote valve neutral rework, Includes: Ref. 92 - 96
1шт.
92
A32348
GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk
GASKET - remote valve
1шт.
93
A34138
GASKET
-, Serial Range: valve-transmission
1шт.
94
A66473
SPRING
- valve return ball (2-5/16" free length)
4шт.
95
A66472
SPRING
- valve spool plunger (1-21/32" free length)
2шт.
96
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - (3/4 x 59/64 x 1/8")
4шт.
Выбрано товаров: 67
