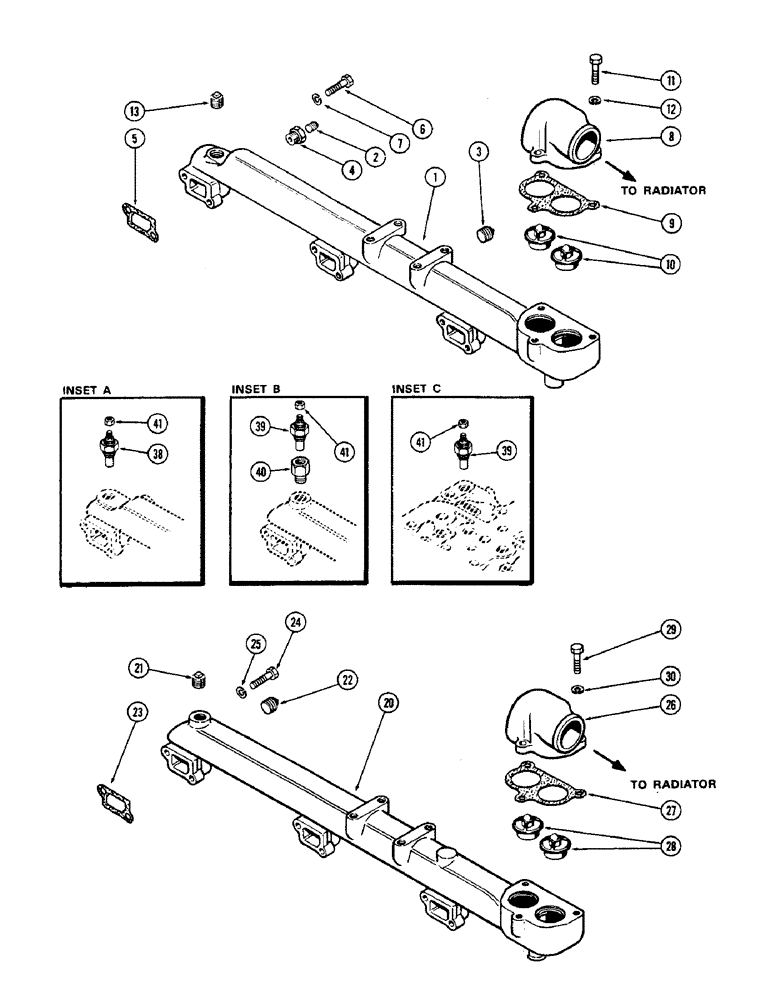

Запчасти Case IH 2470 (014) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE, WITH ALUMINUM MANIFOLD (02) - ENGINE

A44088

MANIFOLD

ASSY., Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex. socket)

1шт.

3

221-945

PLUG - pipe (3/4" hex. socket)

1шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducing (3/4 to 3/8" hex.)

1шт.

5

A58637

MANIFOLD GASKET

- water manifold (See gasket kits figure 40)

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- (3/8 x 2" N.C. hex.)

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

A60689

HOUSING

- thermostat

1шт.

9

A58639

GASKET

- thermostat hsg. (See gasket kits figure 40)

1шт.

10

A57641

THERMOSTAT

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

20

A58909

MANIFOLD

- water, w/ cast iron

1шт.

21

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2" square head), w/ cast iron manifold

1шт.

22

221-845

PLUG,Hex Soc, 3/4"-14

- pipe (3/4" hex. socket head), w/ cast iron manifold

1шт.

23

A58637

MANIFOLD GASKET

- water manifold (See gasket kits figure 40), w/ cast iron

3шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.), w/ cast iron manifold

3шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- (3/8 x 2" N.C. hex.), w/ cast iron manifold

3шт.

25

92-6

LOCK WASHER,3/8"

w/ cast iron manifold 3/8"

6шт.

26

A60689

HOUSING

- thermostat, w/ cast iron manifold

1шт.

27

A58639

GASKET

- thermostat housing (See gasket kits, figure 40), w/ cast iron manifold

1шт.

28

A57641

THERMOSTAT

w/ cast iron manifold

2шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

w/ Cast iron manifold Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

30

92-6

LOCK WASHER,3/8"

w/ cast iron manifold 3/8"

3шт.

38

A66733

TRANSMITTER

UNIT - temperature sending (1/2" N.P.T.F.) (In aluminum water manifold) (See inset A)

1шт.

39

A61787

TRANSMITTER

UNIT - temperature sending (3/8" N.P.T.F.) (In cyl. head & cast iron water manifold) (See insets B & C)

1шт.

40

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing, 3/8 to 1/2" hex. (Used w/cast iron water manifold) (See inset B), temperature sending units

1шт.

41

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., Keps brass, temperature sending units

1шт.
