Запчасти Case IH 2470 (209C) - A76470 REMOTE HYDRAULICS VALVE ASSYEMBLY, 1ST USED TRACTOR SERIAL NO. 8712994 (08) - HYDRAULICS

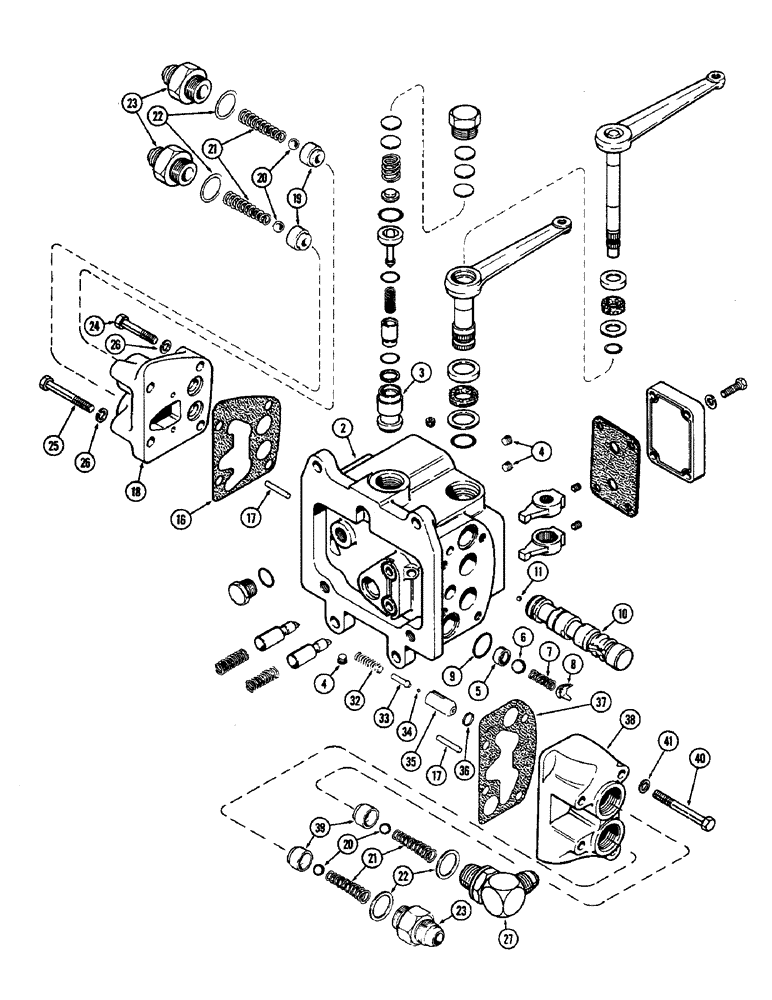

Схема запчастей Case IH 2470 - (209C) - A76470 REMOTE HYDRAULICS VALVE ASSYEMBLY, 1ST USED TRACTOR SERIAL NO. 8712994 (08) - HYDRAULICS
27
35
40
22
16
4
23
9
18
20
21
25
4
10
32
34
5
2
11
37
17
7
22
21
3
26
8
6
23
17
19
26
39
20
33
24
41
36
38

Артикул

Название

Примечание

Количество

A76470

VALVE

ASSY. - single dual remote hyds. (Order A77127), Includes: Ref. 2 - 41

1шт.

2

A76472

BODY

ASSY. - hydraulic valve, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - hydraulic valve pilot relief

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket)

3шт.

5

NSS

NOT SOLD SEPARAT

SEAT - hydraulic valve body ball check

4шт.

6

211-15

BALL,5/8" Dia

- (.) 5/8" Dia

4шт.

7

A27452

SPRING

- check, outlet ball (1-1/8" free length)

4шт.

8

A27364

GUIDE

- ball check spring

4шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - (59/64 x 1-1/32" x 7/64") (Replaces A58602)

4шт.

Part of seal Kit P/N A43086

1шт.

10

A66469

SPOOL

ASSY. - hydraulic valve, Includes: Ref. 11

2шт.

11

211-5

BALL,3/16" Dia

- (.) 3/16" Dia

1шт.

16

A57560

GASKET

- hydraulic valve head

1шт.

Part of seal Kit P/N A43086

1шт.

17

A57559

SPOOL

- auxiliary

4шт.

18

A57564

VALVE

HEAD ASSY. - hydraulic valve, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

20

211-13

BALL,1/2" Dia

- return, hydraulic valve 1/2" Dia

4шт.

21

A66473

SPRING

- check, return ball (2-5/16" free length)

4шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

4шт.

Part of seal Kit P/N A43086

1шт.

23

A64708

FITTING

- hydraulic valve

3шт.

24

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

25

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

A63536

FITTING

ELBOW - remote valve

1шт.

32

A57396

SPRING

- relief valve ball (1-7/64" free length)

2шт.

33

A62272

GUIDE

- thermal valve ball

2шт.

34

211-3

BALL,1/8" Dia

- (.) 1/8" Dia

2шт.

35

A62273

SEAT

- thermal valve

2шт.

36

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal valve (3/8 x 9/16 x 3/32")

2шт.

Part of seal Kit P/N A43086

1шт.

37

A57561

GASKET

- hydraulic valve head

1шт.

Part of seal Kit P/N A43086

1шт.

38

A57565

VALVE

HEAD ASSY. - hydraulic valve, Includes: Ref. 39

1шт.

39

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

40

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.)

4шт.

41

92-6

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 38
