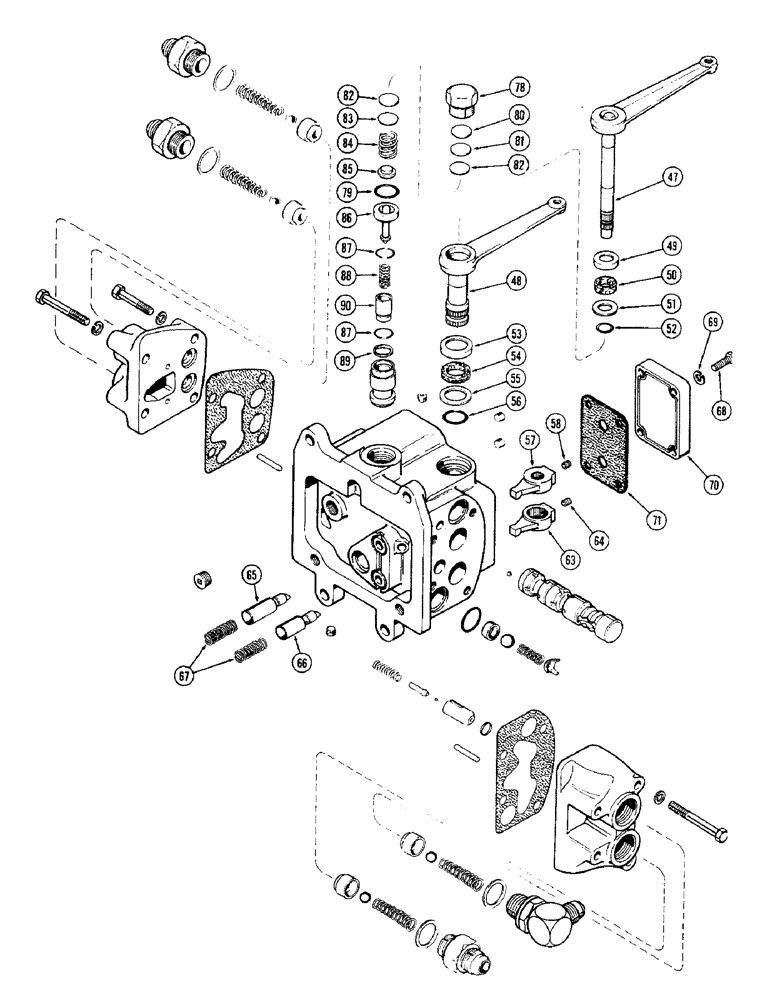

Запчасти Case IH 2470 (209A) - A77127 REMOTE HYDRAULIC VALVE (08) - HYDRAULICS

A77127

VALVE

ASSY. - remote hydraulic, Includes: Ref. 47 - 90

1шт.

47

A75757

LEVER

- shifter shaft (Outer)

1шт.

48

A75755

LEVER

- shifter shaft (Inner)

1шт.

Part of seal Kit P/N A43086

1шт.

49

A30875

RETAINER

- felt washer

1шт.

Part of seal Kit P/N A43086

1шт.

50

A30853

WASHER

- felt, 1/2 x 15/16 x 1/4"

1шт.

Part of seal Kit P/N A43086

1шт.

51

A27409

WASHER

- spool seal, 33/64 x 63/64 x 1/32"

1шт.

Part of seal Kit P/N A43086

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle, 1/2 x 11/16 x 3/32"

1шт.

Part of seal Kit P/N A43086

1шт.

53

A30880

RETAINER

- felt washer

1шт.

Part of seal Kit P/N A43086

1шт.

54

A30879

WASHER

- felt, 3/4 x 1-3/16 x 1/4"

1шт.

Part of seal Kit P/N A43086

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spool seal, 49/64 x 1-15/64 x 1/32"

1шт.

Part of seal Kit P/N A43086

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - shaft seal, 3/4 x 15/16 x 3/32"

1шт.

Part of seal Kit P/N A43086

1шт.

57

A57546

ARM

ASSY. - valve spool shifter lever (Inner), Includes: Ref. 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex. sckt. hdless cup pt. set

1шт.

63

A57547

ARM

ASSY. - valve spool shifter lever (Outer), Includes: Ref. 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex. sckt. hdless cup pt. set

1шт.

65

A57554

PLUNGER

- valve spool (Inner)

1шт.

66

A57555

PLUNGER

- valve spool (Outer) (Drilled)

1шт.

67

A66472

SPRING

- plunger, valve spool (1-21/32" free length)

2шт.

68

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

70

A66435

CAP

- valve body

1шт.

71

A76374

GASKET

- cap

1шт.

Part of seal Kit P/N A43086

1шт.

78

A34392

PLUG

- pilot relief valve

1шт.

79

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Part of seal Kit P/N A42888

1шт.

Part of seal Kit P/N A43086

1шт.

80

A34694

SHIM,.0201" Thk

Pilot relief spring .0201" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

81

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

82

A34391

SHIM,.0149" Thk

Pilot relief spring .0149" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

82

A34390

SHIM,.0329" Thk

Pilot relief spring .0329" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

83

A34849

SHIM,.0105" Thk

Pilot relief spring .0105" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

84

A34492

SPRING

- pilot relief

1шт.

85

A57558

RETAINER

- pilot spring

1шт.

86

A57556

PISTON

ASSY. - pilot

1шт.

87

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - 5/8 x 3/4 x 1/16"

2шт.

Part of seal Kit P/N A42888

1шт.

Part of seal Kit P/N A43086

1шт.

88

A34382

SPRING

- pilot relief valve

1шт.

89

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Part of seal Kit P/N A42888

1шт.

Part of seal Kit P/N A43086

1шт.

90

A57553

PISTON

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal (Incl. Refs. 9, 16, 22, 36, 37, 48 - 56, 71, 73, 79, 87 and 89)

1шт.

A42888

KIT

- seal (Incl. Refs. 79, 87 and 89)

1шт.
