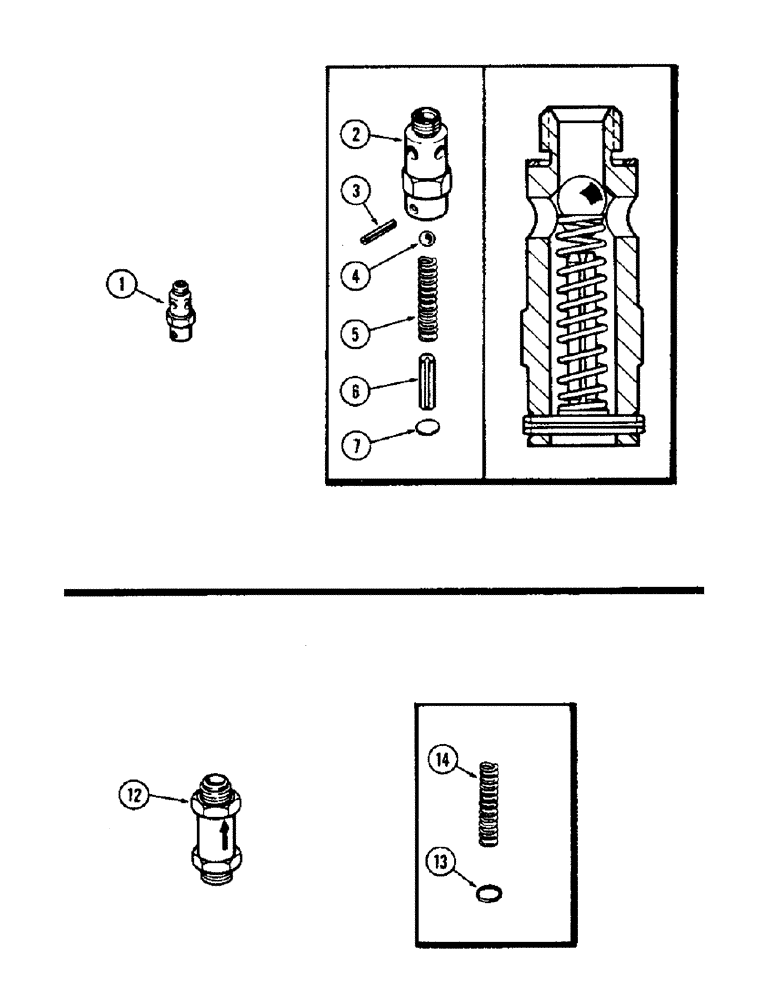

Запчасти Case IH 2470 (206) - COLD LUBE OIL RELIEF VALVE ASSEMBLY (08) - HYDRAULICS

1

A60890

VALVE

ASSY. - relief, cold lube oil, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A60890)

1шт.

3

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

4

211-9

BALL,5/16" Dia

- (.) 5/16" Dia

1шт.

5

A60889

SPRING

- relief valve

1шт.

6

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Spring guide 3/16" x 1", Slotted

1шт.

7

195-6

WASHER,#6

- shim (5/32 x 5/16 x 1/32")

1шт.

12

A75483

VALVE

ASSY. - regulating, filter pressure, Includes: Ref. 13 and 14

1шт.

13

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

"O" RING - check valve body to body, filter pressure regulating assembly

1шт.

14

A44171

SPRING

- relief valve poppet, filter pressure regulating assembly

1шт.
