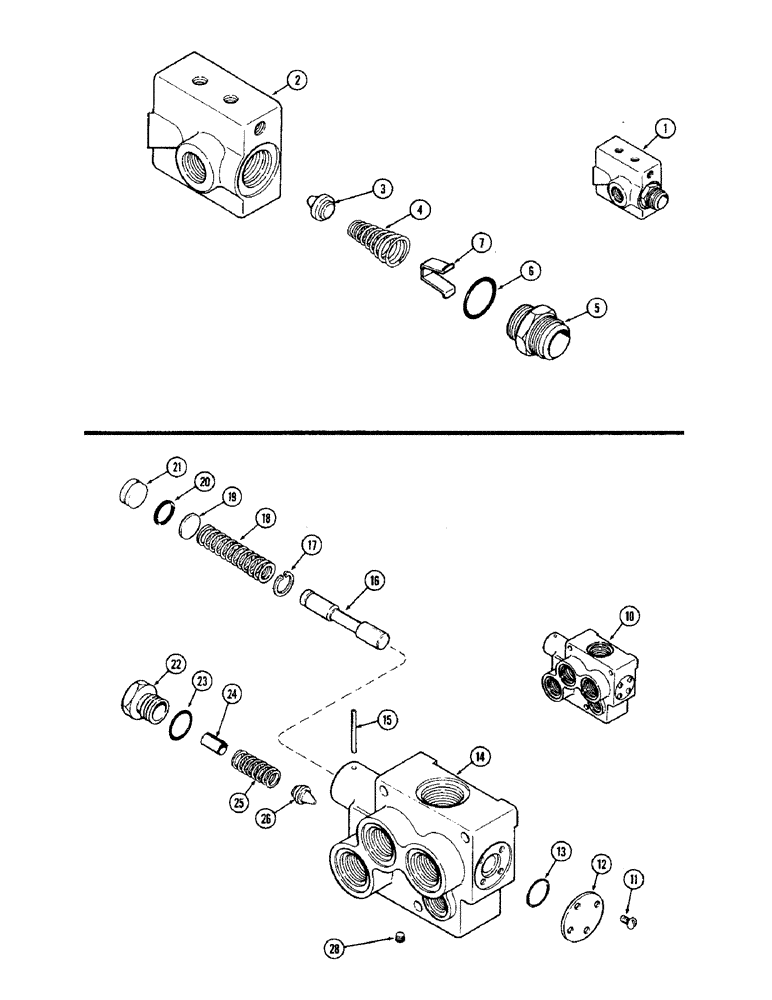

Запчасти Case IH 2470 (204) - SEPARATOR VALVE ASSEMBLY (08) - HYDRAULICS

1

A75491

VALVE

ASSY. - separator, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - flow separator (Order A75491)

1шт.

3

A75493

POPPET - relief valve

1шт.

4

A21091

VALVE SPRING

SPRING - relief valve

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Assy, Straight, Incl. Ref. 6 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1-11/64 x 1-13/32 x 1/8")

1шт.

7

A76287

STOP - poppet

1шт.

10

A76991

VALVE

ASSY. - pressure regulator (Replaces A75486), Includes: Ref. 11 - 26

1шт.

11

164-522

SCREW,Btn Hd, #10 - 24 x 1/2"

- valve cap, regulator assembly

4шт.

12

A60277

CAP

- valve, regulator valve assembly

1шт.

13

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - valve cap, regulator assembly

1шт.

Part of seal Kit P/N A42884

1шт.

14

NSS

NOT SOLD SEPARAT

BODY ASSY. - valve (Order A75486), regulator

1шт.

15

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll (3/16 x 1-1/4"), regulator valve assembly

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order A75486), valve assembly

1шт.

17

A60273

SNAP RING,#62, Ext

Ring, Snap, , regulator valve assembly #62, Ext

1шт.

18

A60274

SPRING

- regulating spool, valve assembly

1шт.

19

A60275

SHIM,.0164" Thk

Spool spring, Regulator valve assembly .0164" Thk

1шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - spool plug, regulator valve assembly

1шт.

Part of seal Kit P/N A42884

1шт.

21

A60276

PLUG

- spool, regulator valve assembly

1шт.

22

A60287

PLUG

ASSY. - spring guide, regulator valve assembly, Includes: Ref. 23 and 24

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 5/8 x 3/32"), regulator valve assembly

1шт.

Part of seal Kit P/N A42884

1шт.

24

138-199

LOCK PIN,1/2" x 3/4", Slotted

PIN, , Regulator valve assembly 1/2" x 3/4", Slotted

1шт.

25

A60286

SPRING

- relief valve, regulator assembly

1шт.

26

A60687

VALVE POPPET

POPPET - relief valve, regulator assembly

1шт.

A42884

KIT

SEAL KIT - pressure regulator valve (Incl. Refs. 13, 20 and 23), regulator assembly

1шт.

28

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" hex. sckt. hd. pipe, regulator valve assembly

1шт.
