(203C) - HYDRAULIC PUMP REAR COVER, W/SCREW TYPE FLOW DIVIDER PLUGS FOR A141223 PUMP

Запчасти Case IH 2470 (203C) - HYDRAULIC PUMP REAR COVER, W/SCREW TYPE FLOW DIVIDER PLUGS FOR A141223 PUMP (08) - HYDRAULICS

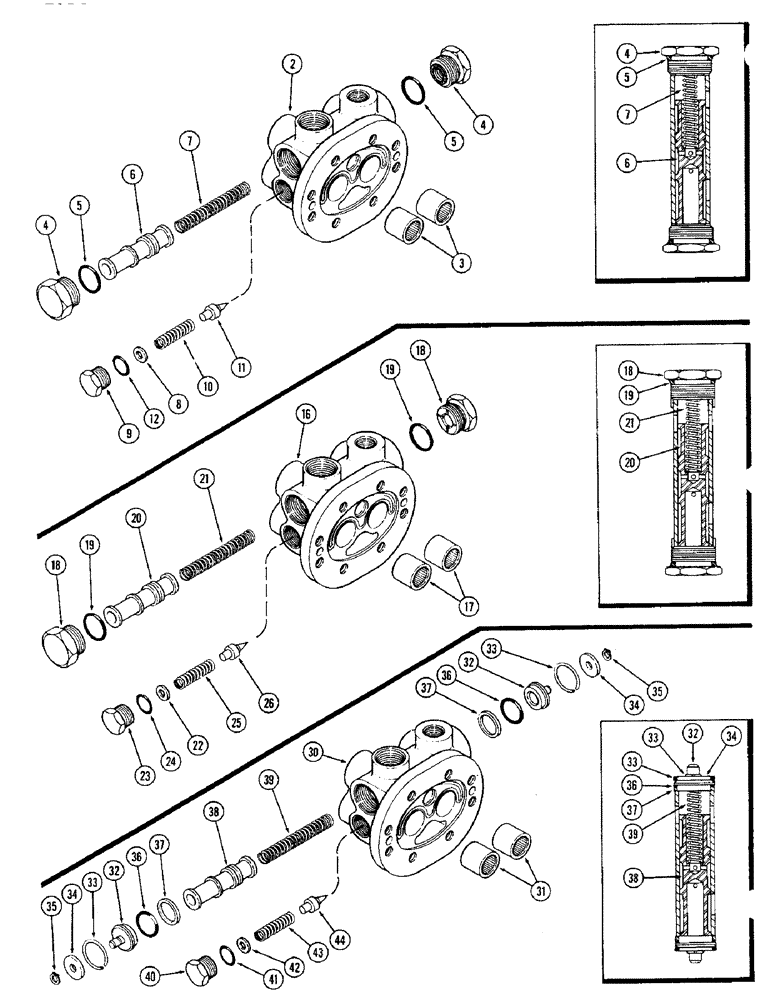

Схема запчастей Case IH 2470 - (203C) - HYDRAULIC PUMP REAR COVER, W/SCREW TYPE FLOW DIVIDER PLUGS FOR A141223 PUMP (08) - HYDRAULICS
37
25
33
8
40
4
16
18
42
23
32
9
31
30
3
20
7
35
4
41
26
34
10
18
22
39
24
21
33
36
34
43
35
38
19
44
2
36
32
36
5
12
19
32
6
11
5
33
38
21
19
17
6
37
18
4
37
5
33
34
7
39
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A45384

COVER

ASSY. - flow divider & relief valve, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - w/sleeve (Order A45384)

1шт.

3

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

4

A45289

SEAT

PLUG - flow divider, w/knurled face

2шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - 1-3/64 x 1-9/32 x 7/64"

2шт.

6

A44125

PISTON

- flow divider

1шт.

7

A45297

SPRING

- piston, 1/2" O.D. x 2-13/16" free length

1шт.

8

A44882

SHIM,.010" Thk

Relief valve .010" Thk

1шт.

8

A44883

SHIM,.031" Thk

Relief valve .031" Thk

1шт.

8

A44884

SHIM,.062" Thk

Relief valve .062" Thk

1шт.

9

A45250

PLUG

ASSY. - relief valve

1шт.

10

A45366

SPRING

- relief valve, 5/8" O.D. x 2-1/4" free length

1шт.

11

A44119

SPOOL

POPPET - relief valve by-pass

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32"

1шт.

A45252

COVER

ASSY. - flow divider & relief valve (Order A45384), for A137403 pump, Includes: Ref. 16 - 26

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - w/bearings & sleeve (Order A45384), for A137403 pump, Includes: Ref. 17

1шт.

17

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, for A137403 pump

2шт.

18

A44123

PULLEY

PLUG - flow divider, w/grooved face, for A137403 pump

2шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - 1-3/64 x 1-9/32 x 7/64", for A137403 pump

2шт.

20

A44125

PISTON

- flow divider, for A137403 pump

1шт.

21

A44124

SPRING

- piston, 1/2" O.D. x 2-13/16" free length, for A137403 pump

1шт.

22

A44882

SHIM,.010" Thk

Relief valve, for A137403 pump .010" Thk

1шт.

22

A44883

SHIM,.031" Thk

Relief valve, for A137403 pump .031" Thk

1шт.

22

A44884

SHIM,.062" Thk

Relief valve, for A137403 pump .062" Thk

1шт.

23

A45250

PLUG

ASSY. - relief valve, for A137403 pump

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32, for A137403 pump

1шт.

25

A45251

SPRING

- relief valve, 19/32" O.D. x 2-1/4" free length, for A137403 pump

1шт.

26

A44119

SPOOL

POPPET - relief valve by-pass, for A137403 pump

1шт.

A45295

REAR COVER

COVER ASSY. - flow divider & relief valve (Order A45384), w/ push type flow divider plugs for A139176 pump, Includes: Ref. 30 - 44

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - w/sleeve (Order A45384), w/ push type flow divider plugs for A139176 pump

1шт.

31

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, w/ push type flow divider plugs for A139176 pump

2шт.

32

A45422

PLUG

- flow divider piston, w/ push type plugs for A139176 pump

2шт.

33

A45301

SPECIAL RING

RING - retaining, w/ push type flow divider plugs for A139176 pump

2шт.

34

A45421

WASHER

- retaining ring, w/ push type flow divider plugs for A139176 pump

1шт.

35

G10659

SNAP RING,#31, Ext

Ring, Snap, , washer, w/ push type flow divider plugs for A139176 pump #31, Ext

1шт.

36

A45298

O-RING

"O" RING - plug seal, w/ push type flow divider for A139176 pump

2шт.

37

L31332

BACK-UP RING

- back-up, w/ push type flow divider plugs for A139176 pump

2шт.

38

A44125

PISTON

- w/ push type flow divider plugs for A139176 pump

1шт.

39

A45297

SPRING

- piston, 1/2" O.D. x 2-13/16" free length, w/ push type flow divider plugs for A139176 pump

1шт.

40

A45250

PLUG

ASSY. - relief valve, w/ push type flow divider for A139176 pump

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32", w/ push type flow divider plugs for A139176 pump

1шт.

42

A44882

SHIM,.010" Thk

Relief valve spring, w/ push type flow divider plugs for A139176 pump .010" Thk

1шт.

42

A44883

SHIM,.031" Thk

Relief valve spring, w/ push type flow divider plugs for A139176 pump .031" Thk

1шт.

42

A44884

SHIM,.062" Thk

Relief valve spring, w/ push type flow divider plugs for A139176 pump .062" Thk

1шт.

43

A45251

SPRING

- relief valve, 19/32" O.D. x 3-1/4" free length, w/ push type flow divider plugs for A139176 pump

1шт.

44

A44119

SPOOL

POPPET - relief valve, w/ push type flow divider plugs for A139176 pump

1шт.
