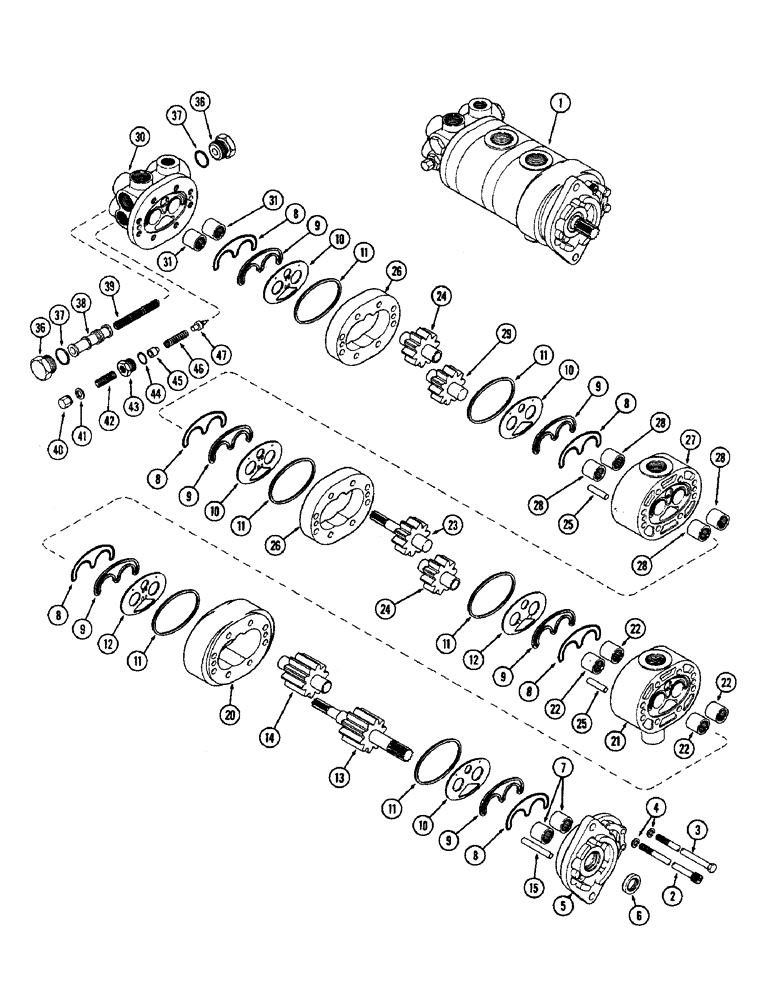

Запчасти Case IH 2470 (203A) - A75475 HYDRAULIC PUMP, USED PRIOR TO TRANSMISSION SERIAL NO. 2429430 (08) - HYDRAULICS

1

A75475

HYDRAULIC PUMP

PUMP ASSY. - hydraulic, three stage (Order A137403), Includes: Ref. 2 - 47

1шт.

2

A44102

BOLT

- pump component assembly

6шт.

3

A44101

HEX SOC SCREW

BOLT - pump component assembly

2шт.

4

A32395

WASHER

- pump assembly bolt

8шт.

5

A44110

HOUSING

BODY ASSY. - drive shaft end, Includes: Ref. 6 and 7

1шт.

6

T39095

OIL SEAL

- oil, pump drive shaft

1шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

7

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, pump body gear

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - pump pre-load

6шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - pump load

6шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

10

T39089

LARGE PLATE

PLATE - wear, gear

4шт.

Part of repair Kit P/N A44127

1шт.

11

NSS

NOT SOLD SEPARAT

RING - seal retaining

6шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

12

A44103

COVER PLATE

PLATE - wear, gear

2шт.

Part of repair Kit P/N A44127

1шт.

13

A44108

SHAFT

- pump drive w/gear

1шт.

14

A44107

GEAR

- idler w/shaft

1шт.

15

A44104

PIN

- dowel, body to gear plate, drive shaft end

2шт.

20

A44105

HOUSING

PLATE - pump gear

1шт.

21

A44111

PLATE

ASSY. - bearing, middle, Includes: Ref. 22

1шт.

22

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

23

T39092

GEAR

- drive, shaft end

1шт.

24

A44106

GEAR

- pump drive

2шт.

25

T39077

PIN

- dowel, gear housing plate

4шт.

26

A44100

PLATE

- pump gear housing

2шт.

27

A44126

PLATE

ASSY. - bearing, middle, Includes: Ref. 28

1шт.

28

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

29

D54175

GEAR

- idler shaft and gear assembly

1шт.

30

A44115

REAR COVER

COVER ASSY. - end (Order A45384) (See figure 203C), Includes: Ref. 31

1шт.

31

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, gear shaft

2шт.

36

A44123

PULLEY

PLUG - flow divider piston

2шт.

37

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 7/64")

2шт.

Part of repair Kit P/N A44128

1шт.

38

A44125

PISTON

- flow divider

1шт.

39

A44124

SPRING

- flow divider piston spring

1шт.

40

T22210

COVER

CAP - sealing, relief valve adjusting screw

1шт.

41

T24406

GASKET - relief valve cap

1шт.

42

178-1197

SCREW - adjusting

1шт.

43

A44122

PULLEY

PLUG - relief valve adjusting screw

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

Part of repair Kit P/N A44128

1шт.

45

A44121

PULLEY

GUIDE - relief valve poppet spring

1шт.

46

A44120

SHIM

SPRING - relief valve by-pass

1шт.

47

A44119

SPOOL

POPPET - relief valve by-pass

1шт.

A44127

KIT

REPAIR KIT - major wear plate & seal (Includes Refs. 6, 8 - 11 and 12)

1шт.

A44128

KIT

REPAIR KIT - complete seal (Incl. Refs. 6, 8, 9, 11, 37 and 44)

1шт.
