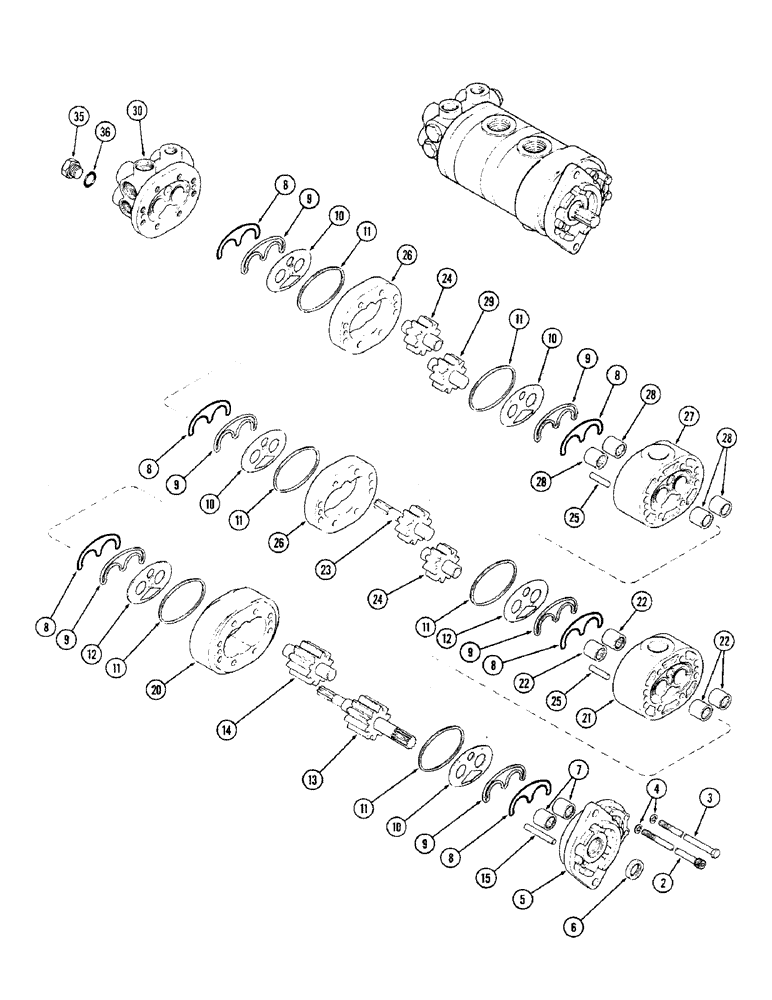

Запчасти Case IH 2470 (202) - HYDRAULIC PUMP ASSEMBLY, 1ST USED TRANSMISSION SERIAL NO. 2429430 (08) - HYDRAULICS

A141223

PUMP

ASSY, hydraulic (w/screw type flow divider plugs) (Replaces A137403 & A139176), Incl. Ref. 2 - 36

1шт.

A139176

PUMP, HYDRAULIC

ASSY (w/push type flow divider plugs) (Order A141223), Incl. Ref. 2 - 36

1шт.

A137403

PUMP, HYDRAULIC

ASSY (w/screw type flow divider plugs) (Order A141223), Incl. Ref. 2 - 36

1шт.

2

A44102

BOLT

Pump component assembly

6шт.

3

A44101

HEX SOC SCREW

Pump component assembly

2шт.

4

A32395

WASHER

Pump assembly bolt

8шт.

5

A44110

HOUSING

BODY ASSY, drive shaft end, Incl. Ref. 6 and 7

1шт.

6

T39095

OIL SEAL

Oil, pump drive shaft

1шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

7

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

Needle, pump body gear

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - pump pre-load

6шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - pump load

6шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

10

T39089

LARGE PLATE

PLATE, LARGE Wear, gear

4шт.

Part of repair Kit P/N A44127

1шт.

11

NSS

NOT SOLD SEPARAT

RING - seal retaining

6шт.

Part of repair Kit P/N A44128

1шт.

Part of repair Kit P/N A44127

1шт.

12

A44103

COVER PLATE

Wear, gear

2шт.

Part of repair Kit P/N A44127

1шт.

13

A44108

SHAFT

Pump drive w/gear

1шт.

14

A44107

GEAR

Idler w/shaft

1шт.

15

A44104

PIN

Dowel, body to gear plate, drive shaft end

2шт.

20

A44105

HOUSING

Pump gear

1шт.

21

A44111

PLATE

ASSY, bearing, middle, Incl. Ref. 22

1шт.

22

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

Needle

4шт.

23

T39092

GEAR

Drive, shaft end

1шт.

24

A44106

GEAR

Pump drive

2шт.

25

T39077

PIN

Dowel, gear housing plate

4шт.

26

A44100

PLATE

Pump gear housing

2шт.

27

A44126

PLATE

ASSY, bearing, middle, Incl. Ref. 28

1шт.

28

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

Needle

4шт.

29

D54175

GEAR

Idler shaft and gear assembly

1шт.

30

REF

INSTRUCTION

COVER ASSY, rear (See figure 203C)

1шт.

35

L30425

PLUG

Rear cover (When needed for unused port)

1шт.

A44127

KIT

REPAIR - major wear, plate & seal (Incl. Refs. 6 and 8 - 12)

1шт.

A44128

KIT

REPAIR - complete seal (Incl. Refs. 6, 8, 9, 11 and 36)

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(1/2 x 21/32 x 3/32")

1шт.

Part of repair Kit P/N A44128

1шт.
