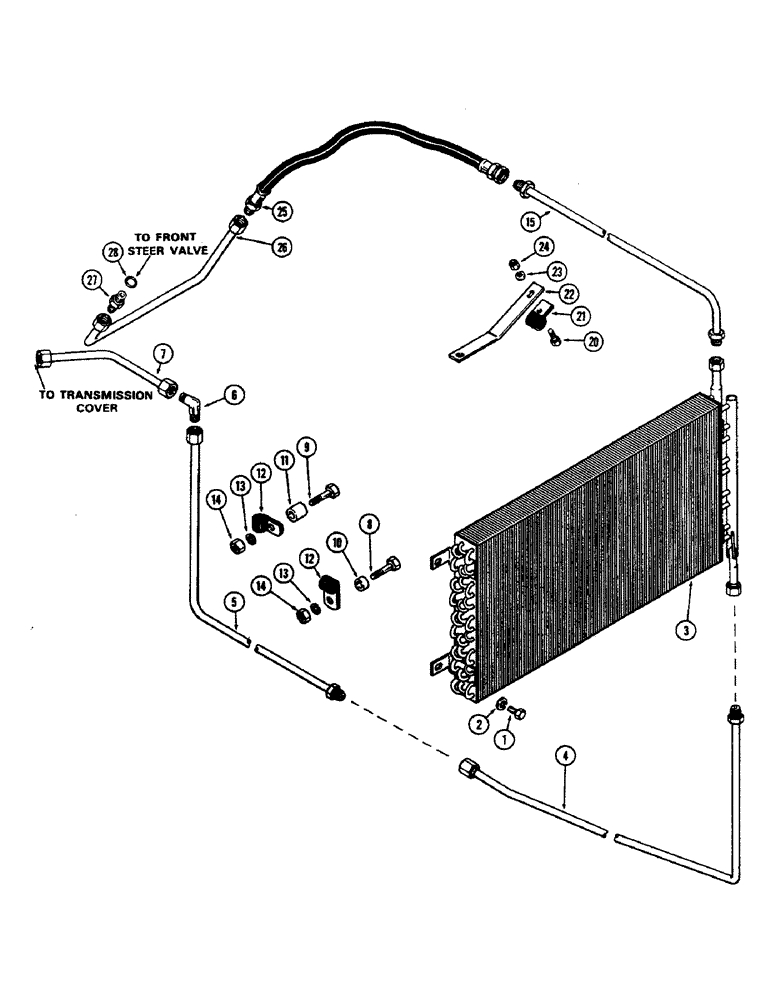

Запчасти Case IH 2470 (012) - OIL COOLER, 504BDT DIESEL ENGINE (02) - ENGINE

1

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

A77179

COOLER

- oil (Replaced A75630)

1шт.

4

A75631

TUBE - oil cooler return, front

1шт.

5

A75632

TUBE - oil cooler return, rear

1шт.

6

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

union, cooler return 90º, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

7

A75633

TUBE - trans. cover return

1шт.

8

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

A76093

BUSHING

SPACER - lower (13/32 x 3/4 x 1/2")

2шт.

11

F65306

SPACER - upper (1/2 x 3/4 x 1")

1шт.

12

49838

CLAMP

- tube

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

15

A76210

TUBE - cooler, top

1шт.

20

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

21

49838

CLAMP

- tube

2шт.

22

A76040

BRACKET - cooler tube

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

L12183

HOSE,0.38" ID x 17.50", SAE 100R1

Cooler 0.38" ID x 17.50", SAE 100R1

1шт.

26

A76211

TUBE

-, Serial Range: valve-cooler

1шт.

27

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - male, Includes: Ref. 28

1шт.

28

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
