Запчасти Case IH 2470 (200) - TWIN DUAL REMOTE HYDRAULICS CIRCUITRY (08) - HYDRAULICS

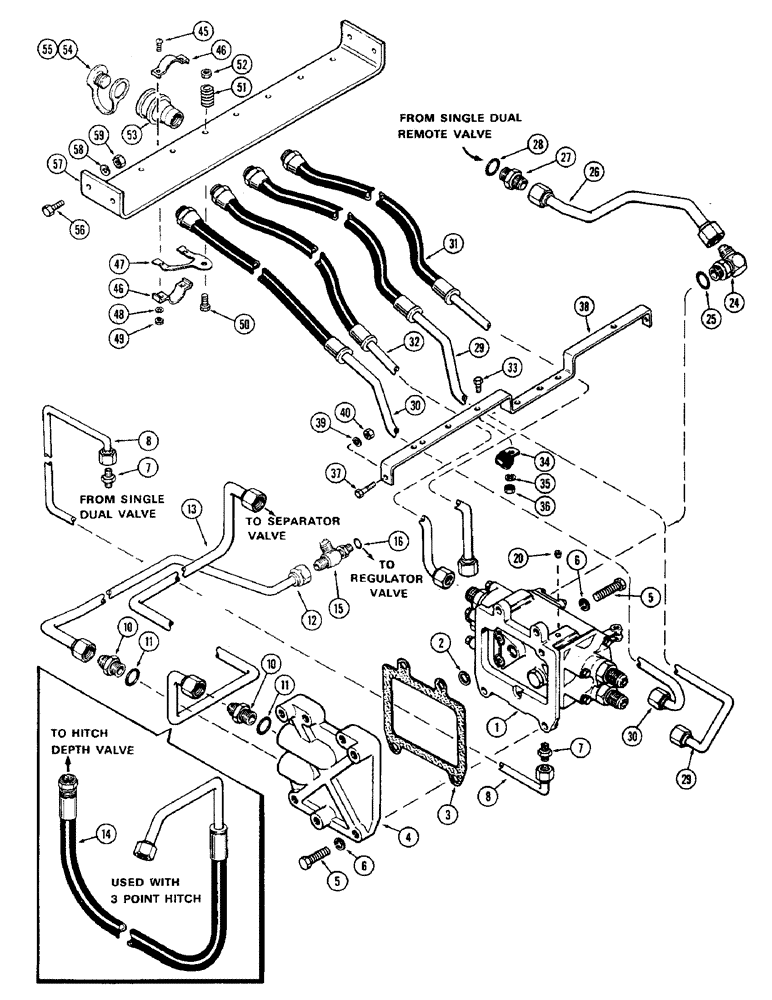

Схема запчастей Case IH 2470 - (200) - TWIN DUAL REMOTE HYDRAULICS CIRCUITRY (08) - HYDRAULICS
3
7
33
8
57
32
56
10
11
4
49
52
1
35
14
53
39
29
24
12
5
6
5
11
7
48
38
28
30
6
31
25
13
27
16
36
15
40
59
47
10
29
55
51
30
34
45
26
37
54
58
46
2
8
20
46
50

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY, twin dual remote hyds. (See figs. 212-215C)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - twin dual remote hydraulics valve

1шт.

3

A34138

GASKET

, Serial Range: Valve-manifold

1шт.

4

A75759

SPARE PART Remote valve mounting

1шт.

5

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

7шт.

6

192-23

LOCK WASHER,1/2"

7шт.

7

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

(5/16" tube O.D.)

2шт.

8

A75915

TUBE

Detent crossover

1шт.

10

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, straight, Incl. Ref. 11

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

A76238

SPARE PART Remote return

1шт.

13

A75726

SPARE PART Manifold to separator valve (Used w/o 3 point hitch)

1шт.

14

A76118

HOSE

Manifold to depth control valve (Used w/3 point hitch)

1шт.

15

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY, adj., Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

221-849

PLUG,Hex Soc, 1/8"-27

Pipe

1шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adj., Incl. Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

A75850

SPARE PART Remote valve inlet

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

A75913

SPARE PART Remote

1шт.

30

A75911

SPARE PART Remote

1шт.

31

A75914

SPARE PART Remote

1шт.

32

A75912

SPARE PART Remote

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

34

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

(5/8" tube)

4шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

4шт.

37

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

38

A75766

BRACKET - mounting, remote hoses

1шт.

39

192-21

LOCK WASHER,3/8"

2шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

45

173-262

X

SCREW - maching (#8-32 x 5/8" rd. hd.)

8шт.

46

A27423

CLAMP

Mounting

8шт.

47

A27360

BRACKET

Break-away coupling

4шт.

48

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

8шт.

49

129-16

NUT,#8-32

8шт.

50

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

51

A26546

SPRING

Bracket tension

4шт.

52

131-352

LOCK NUT,3/8"-16, GA

Gripco

4шт.

53

A28542

COUPLING, QUICK, FEM

ASSY, female (See figure 216)

4шт.

54

A65044

PLUG

Dust (Coded black)

2шт.

55

A65045

PLUG

Dust (Coded yellow)

2шт.

56

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

57

A75700

SPARE PART Side plate, hyd. couplings

1шт.

58

192-21

LOCK WASHER,3/8"

4шт.

59

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.
