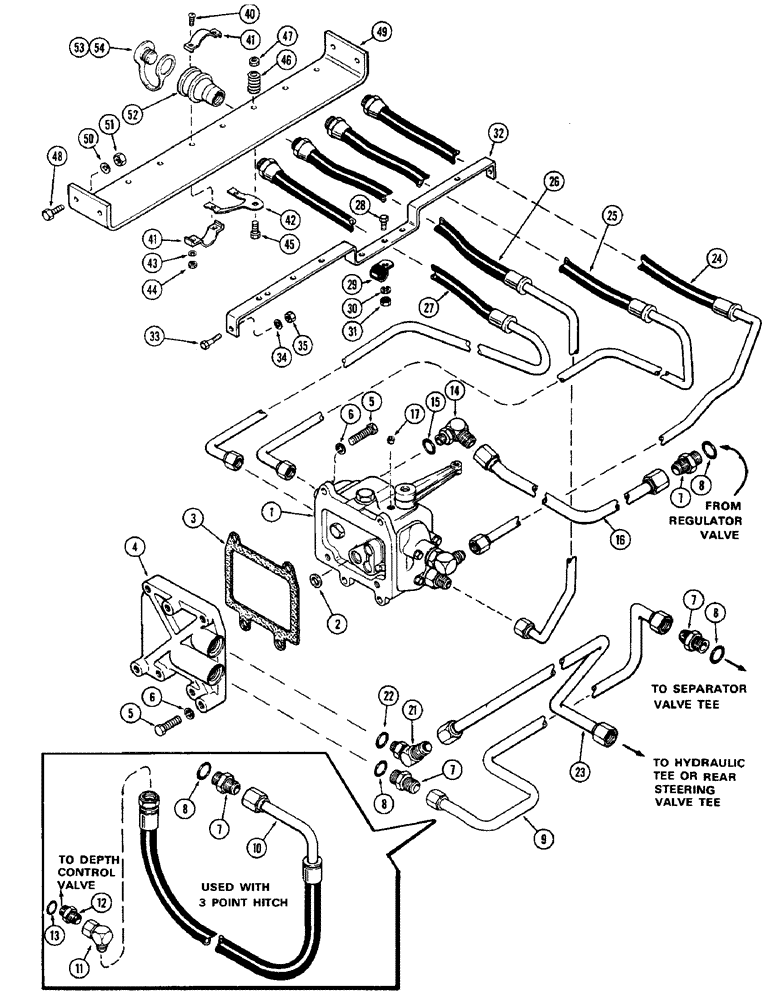

Запчасти Case IH 2470 (196) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY, single dual remote hyds. (See fgs. 208-211C)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - single dual remote hydraulics valve

1шт.

3

A34138

GASKET

, Serial Range: Valve-manifold

1шт.

4

A75759

SPARE PART Remote valve mounting

1шт.

5

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

7шт.

6

192-23

LOCK WASHER,1/2"

7шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, straight, Incl. Ref. 8

3шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

A76030

SPARE PART Pressure, from manifold to separator valve (Used w/o 3 point hitch)

1шт.

10

A75456

HOSE

Pressure, from manifold to depth control valve (Used with 3 point hitch)

1шт.

11

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1шт.

12

218-5048

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

ASSY, depth control valve to elbow, Incl. Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adj., Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

A75930

SPARE PART Remote valve inlet

1шт.

17

221-849

PLUG,Hex Soc, 1/8"-27

Pipe

1шт.

21

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY, adj., Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

A75761

TUBE

Remote return

1шт.

24

A75931

TUBE ASSY.

Remote

1шт.

25

A75764

TUBE

Remote

1шт.

26

A75763

SPARE PART Remote

1шт.

27

A75762

TUBE ASSY.

SPARE PART Remote

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

29

49885

CLAMP

(5/8" tube)

4шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

31

9635082

NUT,5/16" - 18, Gr 5

3шт.

32

A75766

BRACKET - mounting, remote hoses

1шт.

33

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

34

192-21

LOCK WASHER,3/8"

2шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

40

173-262

X

SCREW - machine (#8-32 x 5/8")

8шт.

41

A27423

CLAMP

Hyd. coupling mounting

8шт.

42

A27360

BRACKET

Break-away coupling

4шт.

43

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

8шт.

44

129-16

NUT,#8-32

8шт.

45

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

46

A26546

SPRING

Bracket tension

4шт.

47

131-352

LOCK NUT,3/8"-16, GA

Gripco

4шт.

48

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

49

A75700

SPARE PART Side plate, hyd. couplings

1шт.

50

192-21

LOCK WASHER,3/8"

4шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

52

A28542

COUPLING, QUICK, FEM

ASSY (Female) (See figure 216)

4шт.

53

A65044

PLUG

Dust (Coded black)

2шт.

54

A65045

PLUG

Dust (Coded yellow)

2шт.
