Запчасти Case IH 2470 (194) - SINGLE DUAL REMOTE HYDRAULICS CONTROLS, CONTROLS L.H. SIDE REMOTES (08) - HYDRAULICS

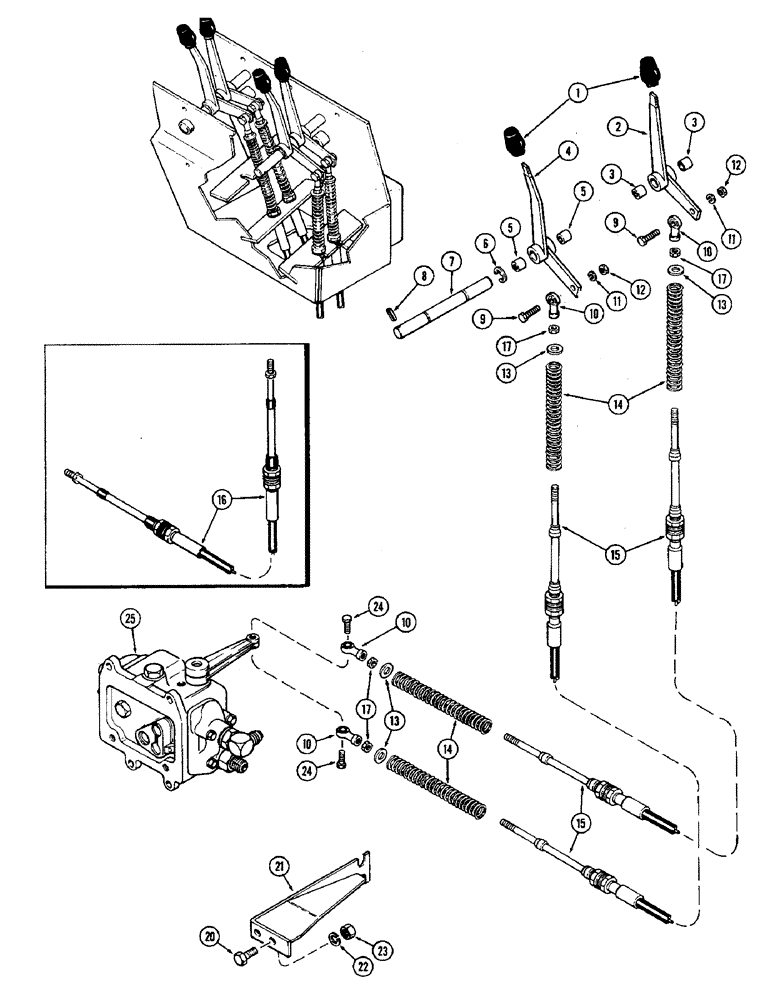

Схема запчастей Case IH 2470 - (194) - SINGLE DUAL REMOTE HYDRAULICS CONTROLS, CONTROLS L.H. SIDE REMOTES (08) - HYDRAULICS
4
17
1
10
17
10
12
17
15
21
12
3
2
10
8
14
5
9
6
15
24
11
13
10
22
23
11
13
24
20
16
5
13
25
14
9
3
7

Артикул

Название

Примечание

Количество

1

A65699

KNOB

Lever, w/brass insert (Replaced A23885)

2шт.

2

A75728

LEVER

ASSY - remote, inner, Incl. Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever

2шт.

4

A75732

LEVER

ASSY - remote, outer, Incl. Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever

2шт.

6

A27785

CIRCLIP,#62, .480" Dia, E-Type

Shaft

1шт.

7

A75736

SHAFT

Console lever

1шт.

8

138-96

LOCK PIN,3/16" x 1", Slotted

1шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

10

A35134

BEARING

BALL JOINT (5/16"-24 N.F.)

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

195-2027

WASHER,.344" x 1" x .065"

4шт.

14

A76475

SPRING

Remote valve centering (Replaces A76235)

4шт.

15

A76293

CABLE

Remote (75") (1st used tractor S/N 8692744)

2шт.

16

A75737

CABLE

Remote (75") (Used prior to tractor S/N 8692744)

2шт.

17

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

21

A75767

BRACKET - cable mounting

1шт.

22

192-23

LOCK WASHER,1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

25

REF

INSTRUCTION

VALVE ASSY, single dual remote hyds. (See figs. 208-211C)

1шт.

Выбрано товаров: 23
