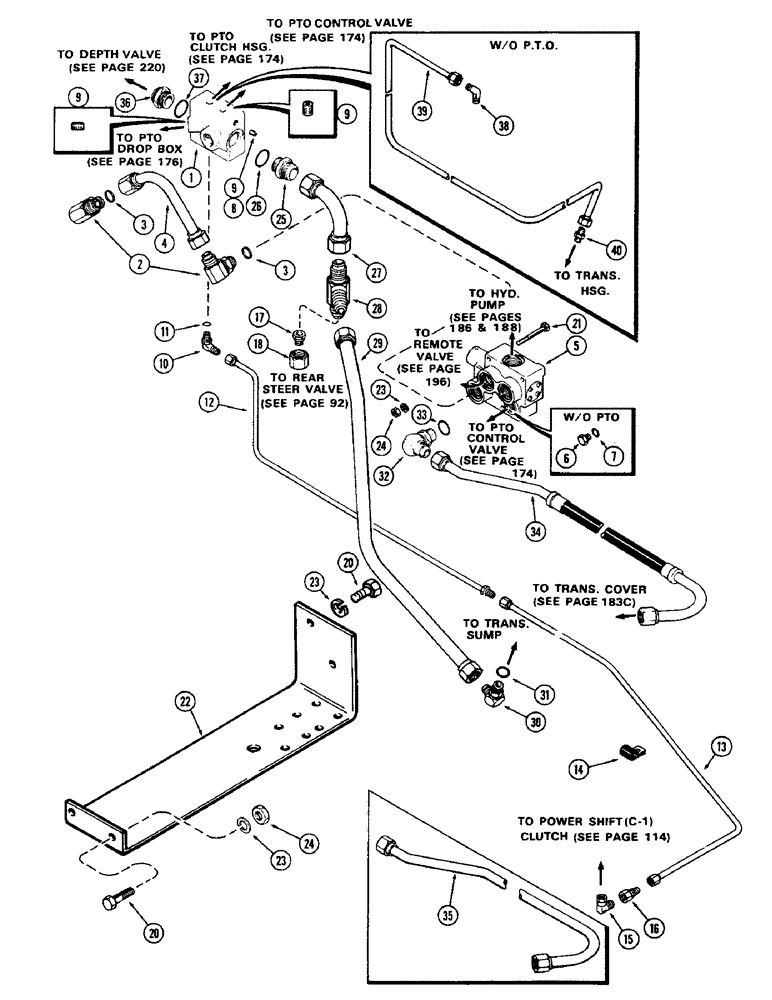

Запчасти Case IH 2470 (192) - SEPARATOR VALVE AND REGULATOR VALVE CIRCUITRY (08) - HYDRAULICS

1

A75491

VALVE

ASSY, separator (See figure 204)

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adj., Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

A75490

SPARE PART Regulator valve to separator valve

1шт.

5

REF

INSTRUCTION

VALVE ASSY, pressure regulator (See figure 204)

1шт.

6

76349

PLUG,9/16" - 18 ORB

Assy, (3/8" tube O.D.) (Used w/o PTO), Incl. Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

221-841

PLUG

Pipe (1/4" hex. socket hd.) (Used w/P.T.O.)

1шт.

9

221-841

PLUG

Pipe (1/4" hex. socket hd.) (Used w/o P.T.O.)

3шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, adj., Incl. Ref. 11

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

A75495

SPARE PART Power shift supply, rear

1шт.

13

A75496

TUBE

Power shift supply, front

1шт.

14

49839

CLAMP

Tube (Replaced A57061)

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

Tube (1/2" tube O.D.)

1шт.

17

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

Tube

1шт.

18

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

(1" tube O.D.)

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

21

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

22

A75497

SPARE PART Bracket

1шт.

23

192-21

LOCK WASHER,3/8"

6шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

25

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ASSY, straight, Incl. Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

27

A75498

SPARE PART Separator valve return

1шт.

28

218-598

TEE,1 5/16"-12 37 Degree

Tube union (1" tube O.D.)

1шт.

29

A75499

SPARE PART Hydraulic return

1шт.

30

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Assy, adj., Incl. Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adj., Incl. Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

A76376

HOSE

TUBE - pressure regulator valve to trans. cover (1st used tractor S/N 8692792)

1шт.

35

A75489

TUBE

Pressure regulator valve to transmission cover (Used prior to tractor S/N 8692792) (Order A76376)

1шт.

36

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, straight, Incl. Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

(3/8" tube O.D.)

1шт.

39

A75494

SPARE PART Brake lube

1шт.

40

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

(3/8" tube O.D.)

1шт.
