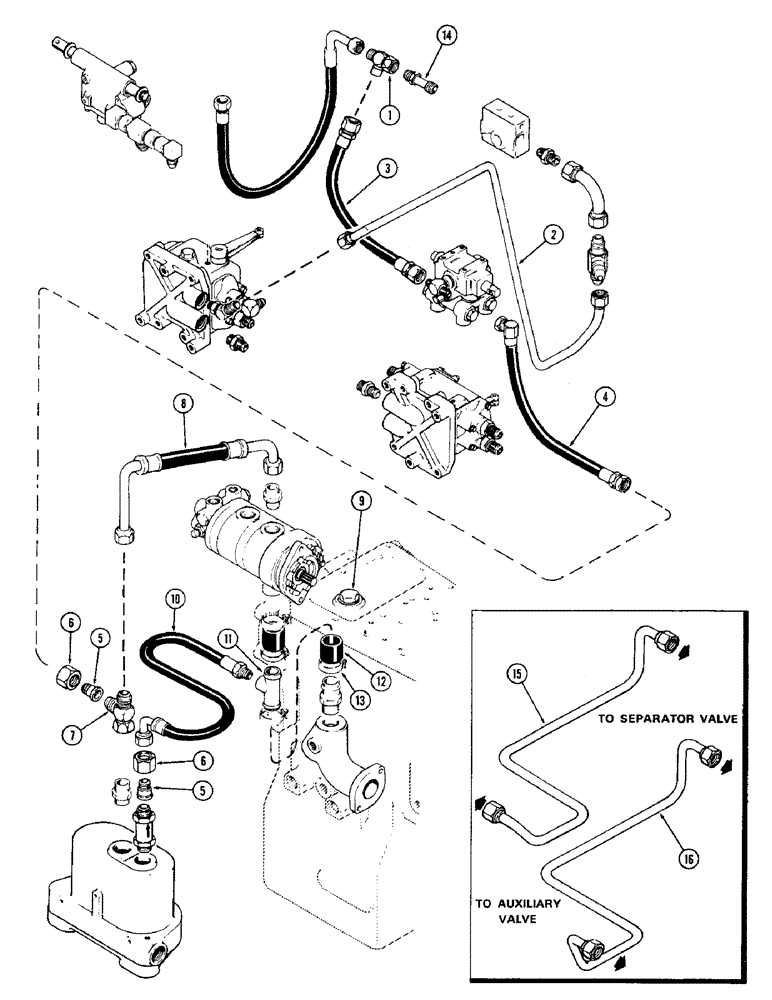

Запчасти Case IH 2470 (187A) - A44755 PLUMBING KIT, USED W/REMOTE HYDRAULIC MOTOR, USED W/PTO (08) - HYDRAULICS

A44755

KIT

- plumbing, Includes: Ref. 1 - 16

1шт.

1

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Separator valve 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

2

A77110

TUBE

- remote return

1шт.

3

A77111

HOSE

- separator valve to rear steer valve

1шт.

4

A75792

HOSE

- rear steer, Serial Range: valve-filter

1шт.

5

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - hose

2шт.

6

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - hose adapter

2шт.

7

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- filter housing

1шт.

8

A77109

GASKET

HOSE -, Serial Range: pump-filter

1шт.

9

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

10

A77102

FLEXIBLE HOSE

HOSE - filter return

1шт.

11

A77107

TUBE

- suction line

1шт.

12

A77106

HOSE

- suction line

2шт.

13

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

14

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - tee to separator valve

1шт.

15

A77112

TUBE

- remote return (Used w/single remote w/o 3 pt. hitch)

1шт.

16

A77113

TUBE

- remote return (Used w/twin remote w/o 3 pt. hitch)

1шт.
