(186) - HYDRAULIC PUMP AND CIRCUITRY, WITH P.T.O.

Запчасти Case IH 2470 (186) - HYDRAULIC PUMP AND CIRCUITRY, WITH P.T.O. (08) - HYDRAULICS

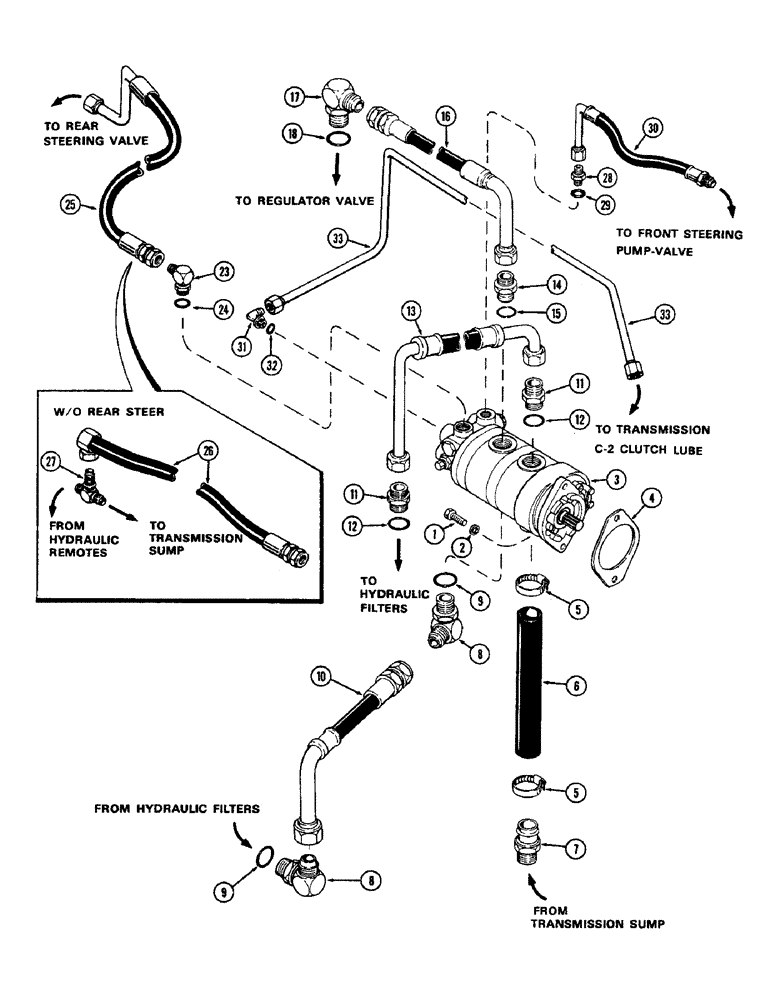

Схема запчастей Case IH 2470 - (186) - HYDRAULIC PUMP AND CIRCUITRY, WITH P.T.O. (08) - HYDRAULICS
11
23
18
31
33
5
25
17
3
12
6
14
27
8
24
29
12
9
15
30
5
7
33
1
2
11
28
16
9
8
26
4
13
32
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

2

192-23

LOCK WASHER,1/2"

2шт.

3

REF

INSTRUCTION

PUMP ASSY, hydraulic (See figure 202)

1шт.

4

A76477

GASKET

Pump drive (Replaces T38505)

1шт.

5

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

6

A75500

SPARE PART Suction line

1шт.

7

217-158

FITTING,1-1/2" Hose Barb x 1-1/2" Male NPTF

Barb

1шт.

8

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ASSY, adj., Incl. Ref. 9

2шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

A75502

HOSE

, Serial Range: Filter-pump

1шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ASSY, Incl. Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

A75501

HOSE

Charge, Serial Range: pump-filter

1шт.

14

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ASSY, Incl. Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

A75503

HOSE ASSY.

Pump to regulator valve

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Assy, adj., Incl. Ref. 18

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adj., Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(3/4 x 59/64 x 1/8")

1шт.

25

A75642

SPARE PART Pump to rear steering valve

1шт.

26

A75792

HOSE

, Serial Range: Pump-return

1шт.

27

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

Bulkhead branch (3/4" tube O.D.)

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSY, Incl. Ref 29

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

A75625

HOSE

SPARE PART Pump to front steering valve

1шт.

31

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adj., Incl. Ref. 32

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(1/2 x 21/32 x 3/32")

1шт.

33

A76102

SPARE PART Relief valve return

1шт.
