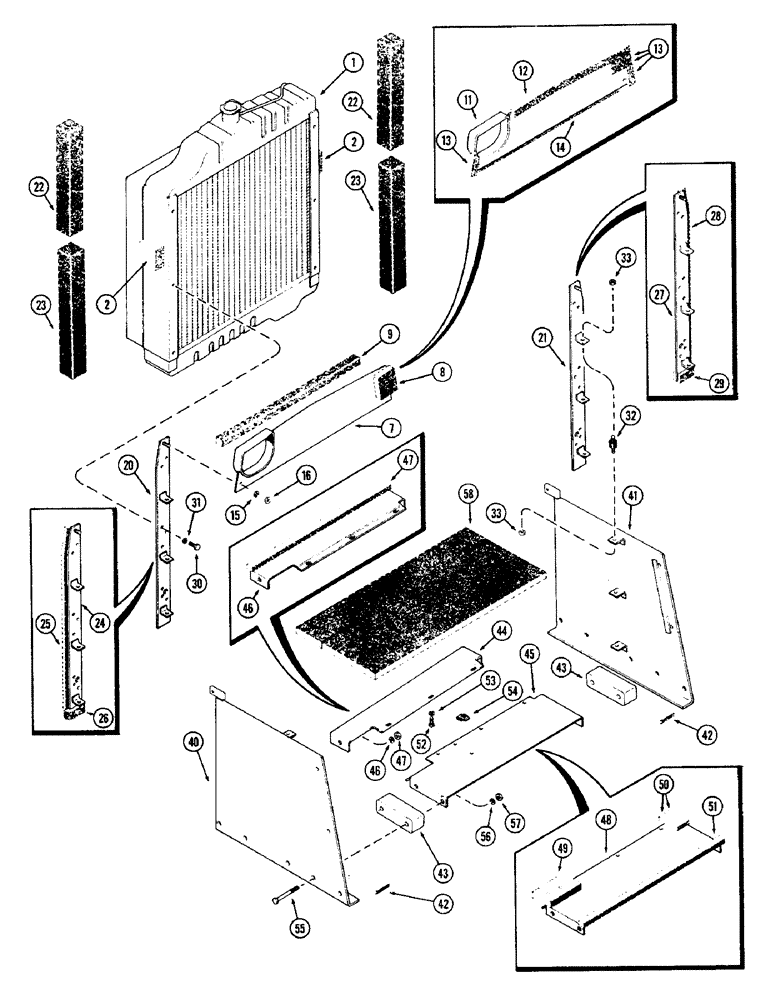

Запчасти Case IH 2470 (011A) - RADIATOR BAFFLES AND SUPPORTS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A75526

RADIATOR

- engine

1шт.

2

A76117

PAD

- radiator side, rubber

2шт.

To be attached with adhesive 345-22.

1шт.

A76451

BAFFLE

ASSY. - radiator, top (1st used trac. S/N 8713068), Includes: Ref. 7 - 9

1шт.

7

A76034

BAFFLE - radiator, top

1шт.

8

A76452

PAD - baffle

1шт.

To be attached with adhesive 345-22.

1шт.

9

A76421

SEAL

- baffle

1шт.

To be attached with adhesive 345-22.

1шт.

A75534

BAFFLE

ASSY. - radiator, top (Used prior to trac. ser. no. 8713068), Includes: Ref. 11 - 14

1шт.

11

A76034

BAFFLE - radiator, top

1шт.

12

A75537

SEAL - baffle

1шт.

To be attached with adhesive 345-22.

1шт.

13

A75517

SEAL - baffle

4шт.

To be attached with adhesive 345-22.

1шт.

14

A75516

SEAL

- baffle

1шт.

To be attached with adhesive 345-22.

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

A75520

BRACKET

SUPPORT - radiator, R.H. (1st used trac. ser. no. 8713068)

1шт.

21

A75521

BRACKET

SUPPORT - radiator, L.H. (1st used trac. ser. no. 8713068)

1шт.

22

A76419

SEAL

- radiator side, upper (1st used trac. ser. no. 8713068)

2шт.

To be attached with adhesive 345-22.

1шт.

23

A76418

SEAL

- radiator side, lower (1st used trac. ser. no. 8713068)

2шт.

To be attached with adhesive 345-22.

1шт.

24

A75518

BRACKET

SUPPORT ASSY. - radiator, R.H. (Used prior to trac. ser. no. 8713068), Includes: Ref. 25 and 26

1шт.

25

A75522

SEAL

- radiator support

1шт.

To be attached with adhesive 345-22.

1шт.

26

A75523

SEAL

- radiator support

1шт.

To be attached with adhesive 345-22.

1шт.

27

A75519

BRACKET

SUPPORT ASSY. - radiator, L.H. (Used prior to trac. ser. no. 8713068), Includes: Ref. 28 and 29

1шт.

28

A75522

SEAL

- radiator support

1шт.

To be attached with adhesive 345-22.

1шт.

29

A75523

SEAL

- radiator support

1шт.

To be attached with adhesive 345-22.

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

32

L11236

BOLT

BOLT - flex., radiator mounting

6шт.

33

231-1445

NUT,5/16"-18, GB

NUT - elastic hex. (5/16" N.C.)

12шт.

40

A75508

SUPPORT - rad., R.H.

1шт.

41

A75509

SUPPORT - radiator, L.H.

1шт.

42

A76269

SEAL

- rad. support (Used with A75508 & A75509 supports between trac. ser. nos. 8692481 thru 8713067)

2шт.

To be attached with adhesive 345-22.

1шт.

43

A76013

BLOCK - spacer

4шт.

44

A76079

BAFFLE

- rad., lower (1st used trac. ser. no. 8713067)

1шт.

45

A76081

BAFFLE

- rad., lower (1st used trac. ser. no. 8713067)

1шт.

46

A76078

BAFFLE

ASSY. - lower radiator (Used prior to trac. ser. no. 8713067), Includes: Ref. 47

1шт.

47

A75516

SEAL

- radiator bottom baffle

1шт.

To be attached with adhesive 345-22.

1шт.

48

A76080

BAFFLE

ASSY. - lower radiator (Used prior to trac. ser. no. 8713067), Includes: Ref. 49 - 51

1шт.

49

A76082

SEAL - baffle

1шт.

To be attached with adhesive 345-22.

1шт.

50

A75517

SEAL - baffle

2шт.

To be attached with adhesive 345-22.

1шт.

51

A75516

SEAL

- baffle

1шт.

To be attached with adhesive 345-22.

1шт.

52

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

54

131-616

NUT,Ret, J, 5/16"-18

- (5/16" - 18 Tinnerman)

3шт.

55

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- (5/8 x 4" N.C. hex.)

8шт.

56

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

57

129-107

NUT,5/8"-11, G5

8шт.

58

A76453

PAD

- radiator lower baffle

1шт.
