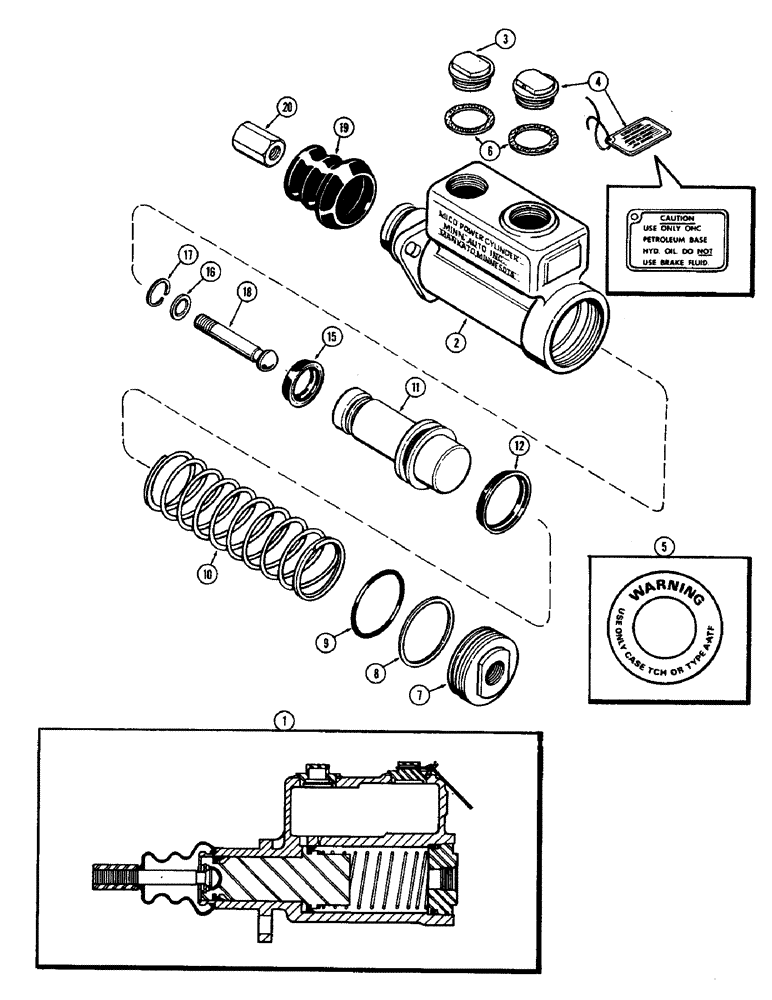

Запчасти Case IH 2470 (164) - MASTER BRAKE CYLINDER ASSEMBLY (07) - BRAKES

1

A75376

CYLINDER

ASSY. - master brake, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - master brake cylinder (Order A75376)

1шт.

3

A44664

CAP

- master cylinder filler (Solid) (Replaced A12889)

1шт.

4

A44662

CAP

ASSY. - master cyl. filler & breather (Vented) (Replaced A44268), Includes: Ref. 5

1шт.

5

A61114

DECAL

TAG - instruction

1шт.

6

L33808

GASKET

- master cylinder breather & filler cap

2шт.

7

A44276

PLUG

ASSY. - end, master cylinder port

1шт.

8

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

Included w/ REPAIR KIT, A44278

1шт.

9

NSS

NOT SOLD SEPARAT

"O" RING - sealing, end plug

1шт.

Included w/ REPAIR KIT, A44278

1шт.

10

NLS

NO LONGER SERVICED

- piston return

1шт.

11

A44887

PISTON

- master cylinder (Replaces A44274)

1шт.

12

NSS

NOT SOLD SEPARAT

CUP - piston seal, primary

1шт.

Included w/ REPAIR KIT, A44278

1шт.

15

NSS

NOT SOLD SEPARAT

CUP - piston seal, secondary

1шт.

Included w/ REPAIR KIT, A44278

1шт.

16

A44273

WASHER

- push rod

1шт.

17

A44272

SNAP RING,0.875", Int, #87

Ring, Snap, , push rod 0.875", Int, #87

1шт.

18

A44277

ROD

- push

1шт.

19

NSS

NOT SOLD SEPARAT

BOOT - master cylinder push rod

1шт.

Included w/ REPAIR KIT, A44278

1шт.

20

A44271

CONNECTOR, ELEC

CONNECTOR - cyl. push, Serial Range: rod-clevis

1шт.

A44278

REPAIR KIT

REPAIR KIT - master cyl. seal, Includes: Ref. 8, 9, 12, 15 and 19

1шт.
