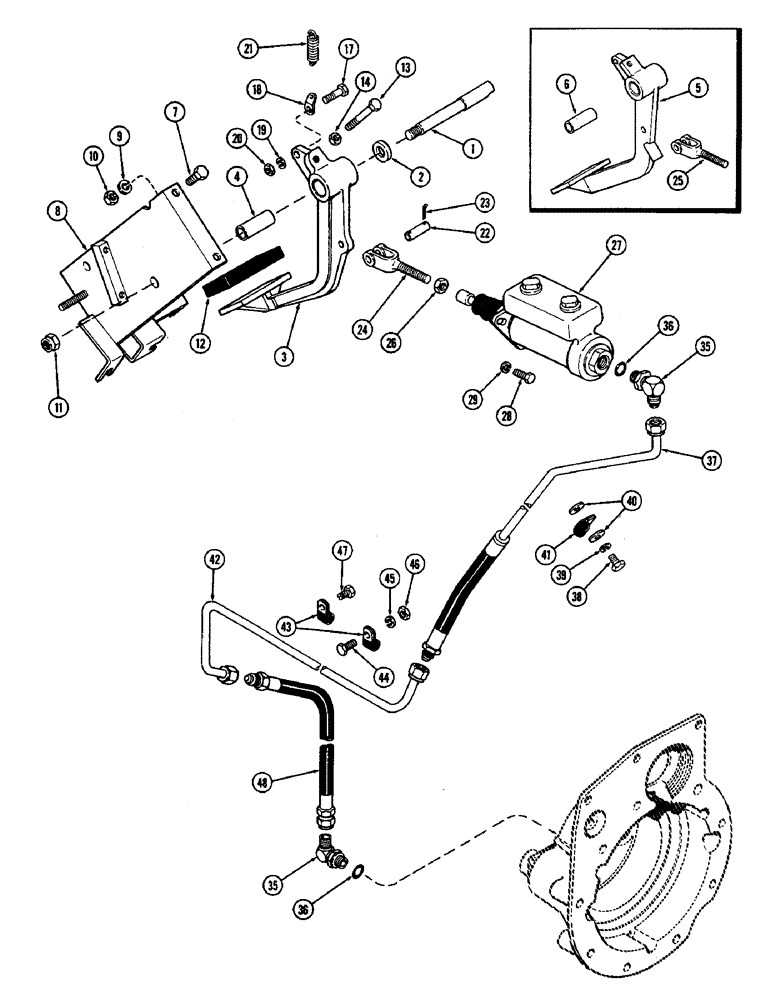

Запчасти Case IH 2470 (162) - BRAKE PEDAL, MASTER CYLINDER AND HYDRAULIC BRAKE TUBES (07) - BRAKES

1

A75373

SHAFT

- brake pedal

1шт.

2

A75360

SPACER

- pedal shaft

1шт.

3

A76363

PEDAL

ASSY. - brake (1st used tractor ser. no. 8712526), Includes: Ref. 4

1шт.

4

A75362

BUSHING

- brake pedal

1шт.

5

A75374

PEDAL

ASSY. - brake (Used prior to tractor ser. no. 8712526) (Order 1-A76363 pedal assy. & 1-A76365 rod), Includes: Ref. 6

1шт.

6

A75362

BUSHING

- brake pedal

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

A75366

BRACKET - cockpit

1шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

11

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

1шт.

12

F9197

PAD

- pedal

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- (3/8 x 3-3/4" N.C. hex.)

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam)

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

18

A26953

CLIP

- spring

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

21

A20093

SPRING

- pedal return

1шт.

22

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (1/2")

1шт.

23

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

24

A76365

ROD

- master cylinder, 2-1/8" thread length (Used w/A76363 pedal assy.) (1st used tractor serial no. 8712526)

1шт.

25

A76091

ROD - master cylinder, 2-1/2" thread length (Used w/A75374 pedal assy.) (Used prior to tractor ser. no. 8712526)

1шт.

26

25-158

JAM NUT,Jam, 1/2"-20, G5

- (1/2" - 20 N.F. hex., jam)

1шт.

27

A75376

CYLINDER

ASSY. - master (See figure 164)

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 36

2шт.

37

A75773

HOSE

TUBE - hydraulic brake

1шт.

38

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- (3/8 x 3/4" N.C. hex.)

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

A29277

WASHER

- (13/32 x 1 x 1/8")

2шт.

41

49838

CLAMP

- tube

1шт.

42

A75774

TUBE

- hydraulic brake

1шт.

43

49838

CLAMP

- tube

2шт.

44

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- (3/8 x 3/4" N.C. hex.)

1шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

47

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - (3/8 - 16 x 3/4" tap tite)

1шт.

48

A75775

HOSE

- hydraulic brake

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
