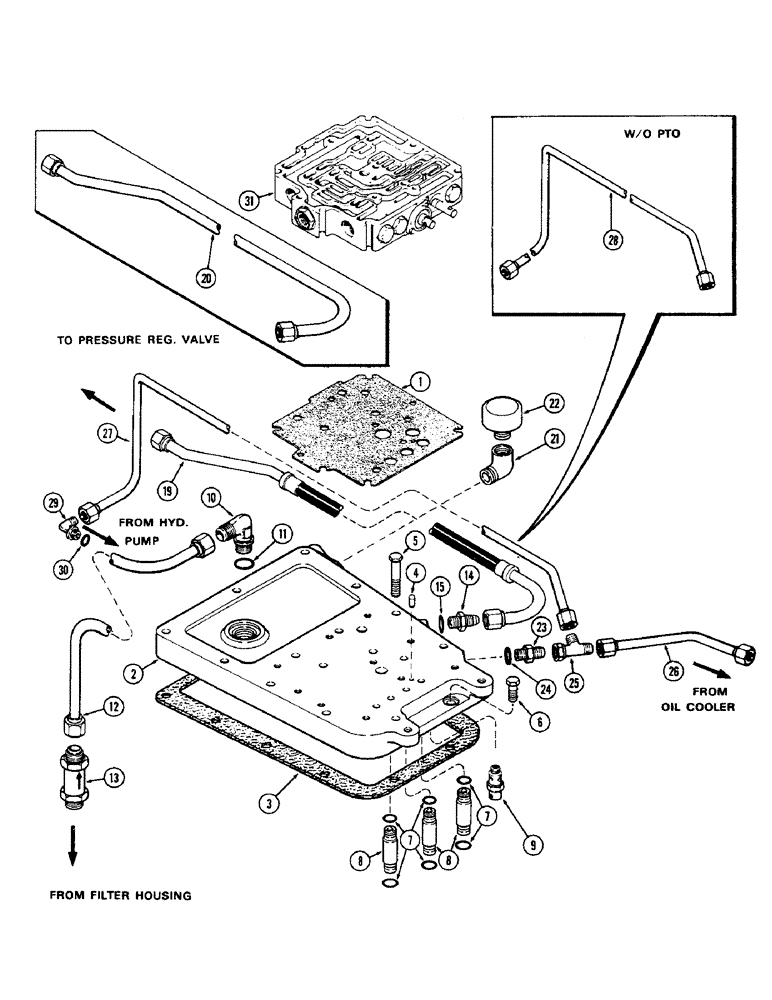

Запчасти Case IH 2470 (183C) - TRANSMISSION TOP COVER & LINES, WITH & WITHOUT P.T.O. (06) - POWER TRAIN

1

A66735

GASKET

- valve to trans. top cover (Replaced A62637 & A66109)

1шт.

2

A75178

COVER

- transmission, top

1шт.

3

A62114

GASKET,0.79mm Thk

- trans. top, Serial Range: cover-trans.

1шт.

4

D24005

PIN

- dowel, trans. cover valve body

1шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex.)

10шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - oil tube (Included in A42886 kit - see fg. 130)

6шт.

8

A76120

TUBE

- oil distributor

3шт.

9

A60890

VALVE

ASSY. - relief, lube oil (See figure 206)

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 11 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1-11/64 x 1-13/32 x 1/8")

1шт.

12

A75484

TUBE - filter return

1шт.

13

A75483

VALVE

ASSY. - relief, filter pressure (See figure 206)

1шт.

14

A76348

ADAPTER ASSY. - restricting orifice (w/identification groove) (Replaced A65072 used w/P.T.O. & 218-5064 used w/o P.T.O.), Includes: Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

19

A76376

HOSE

TUBE - pressure regulator valve to trans. cover (1st used tractor serial no. 8692792)

1шт.

20

A75489

TUBE

- pressure regulator valve to trans. cover (Used prior to tractor serial no. 8692792) (Order A76376)

1шт.

21

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

22

A75179

BREATHER

VENT - breather, trans. top cover

1шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight, Incl. Ref 24

1шт.

25

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

(1/2" O.D. tube) 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

26

A75633

TUBE - trans. cover return to oil cooler

1шт.

27

A76102

TUBE - relief valve return (Used w/P.T.O.)

1шт.

28

A76101

TUBE - reliev valve return (Used w/o P.T.O.)

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 30

1шт.

31

A66707

VALVE

ASSY. - trans. control (Repl. A64327) (See figure 184)

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
