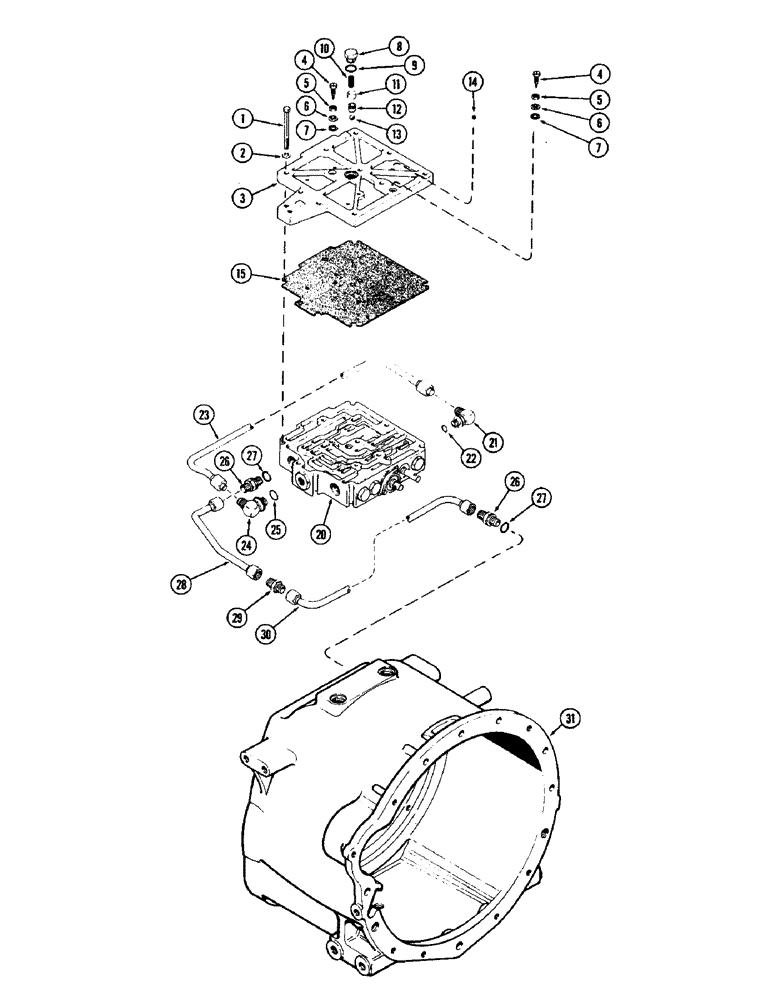

Запчасти Case IH 2470 (182) - TRANS. CONTROL VALVE, COVER & LINES, WITH P.T.O. (06) - POWER TRAIN

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A65284

COVER - trans. control valve

1шт.

4

A136916

NEEDLE

- retard orifice (Replaces A59073)

2шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

- (1/4" N.F. hex, jam)

2шт.

6

122-13

GROMMET

BURR - 1/4" steel riveting

2шт.

7

A59074

SEAL

- thread

2шт.

8

A62588

PLUG

- detent

1шт.

10

A61696

SPRING

- detent ball

1шт.

11

A62107

SPACER

- detent

1шт.

12

A59062

SLEEVE

- detent

1шт.

13

211-12

BALL,7/16 Dia

- (7/16" dia.)

1шт.

14

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" sq. hd.)

3шт.

15

A66734

GASKET

- valve to valve cover (Replaced A65283, A63296 & A66108)

1шт.

20

A66707

VALVE

ASSY. - trans. control (Repl. A64327) (See page 184)

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adj., Includes: Ref. 22

1шт.

23

A63294

TUBE

- pilot, reverse lock-out

1шт.

24

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSY. - 90 degree adj., Includes: Ref. 25

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight, Incl. Ref 27

2шт.

28

A75326

TUBE

- trans. control valve to clutch hsg.

1шт.

29

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- tube (1/2" tube O.D.)

1шт.

30

A75325

TUBE

- trans. control valve to clutch hsg.

1шт.

31

A58483

HOUSING - clutch

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
