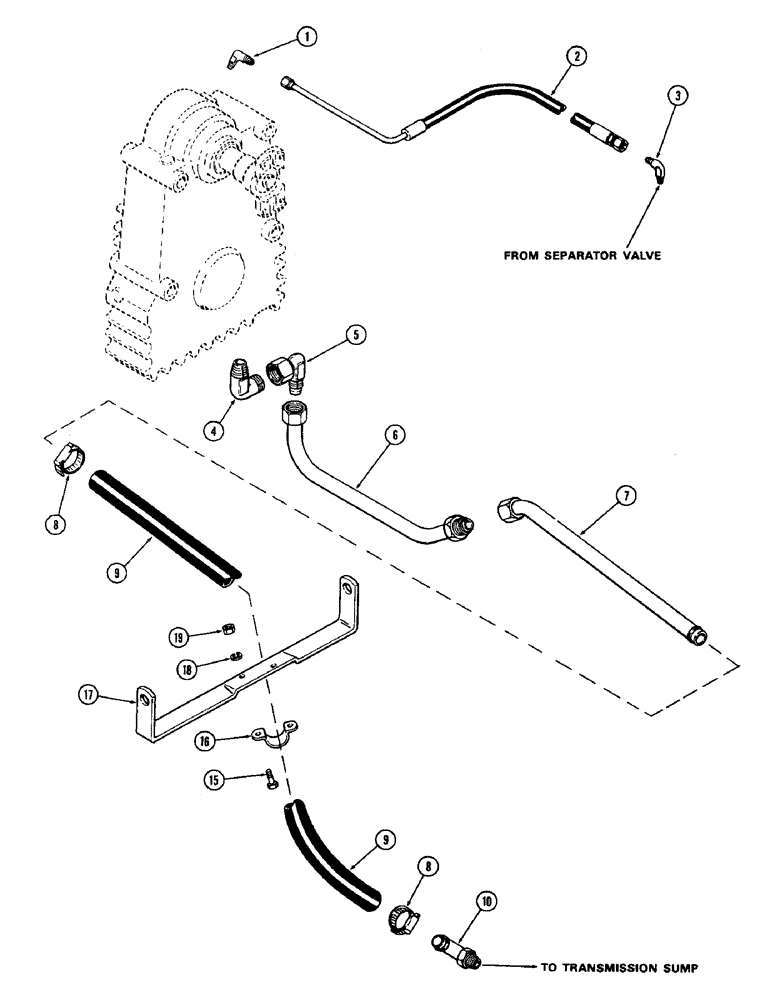

Запчасти Case IH 2470 (176) - P.T.O. HYDRAULICS (06) - POWER TRAIN

1

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees

1шт.

2

A76103

HOSE - P.T.O. lube

1шт.

3

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

4

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degrees

1шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel

1шт.

6

A76172

TUBE

- P.T.O. drain, rear

1шт.

7

A76173

TUBE

- P.T.O. drain, front

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

9

A76175

HOSE

- P.T.O. drain

1шт.

10

A76171

TUBE

- P.T.O. drain fitting

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

A76174

CLAMP - P.T.O. drain tube

1шт.

17

A76170

BRACKET

- support, drain tube

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.
