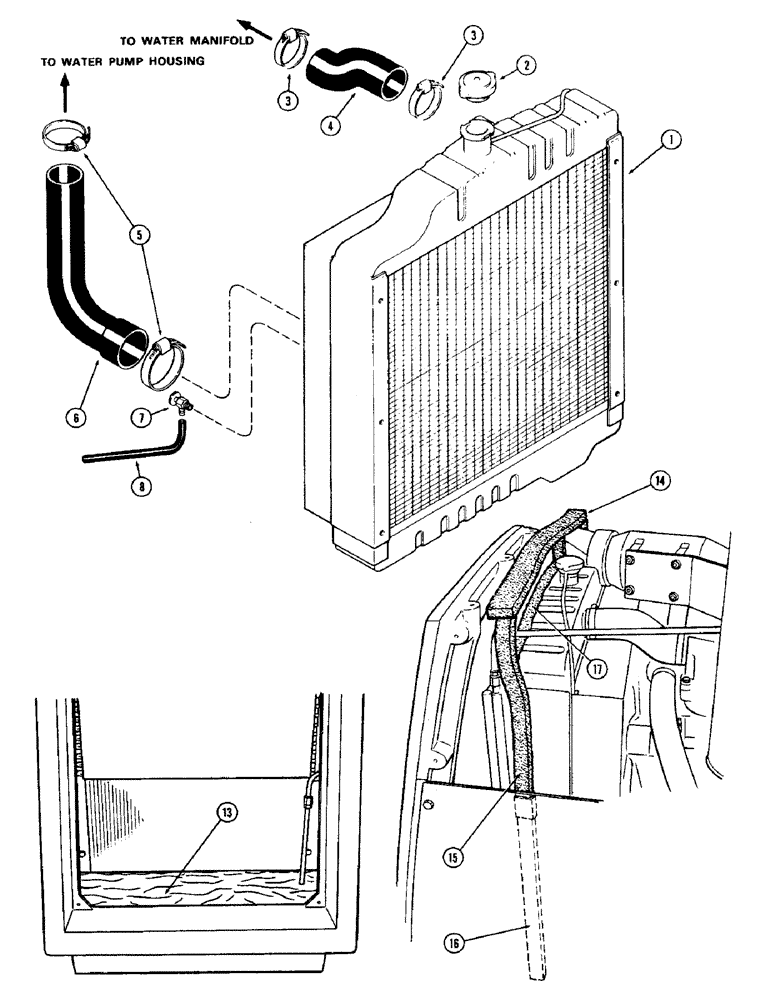

Запчасти Case IH 2470 (010) - RADIATOR, 504BDT DIESEL ENGINE (02) - ENGINE

1

A75526

RADIATOR

- engine

1шт.

2

D25826

CAP

- radiator pressure

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16 to 3-1/4")

2шт.

4

A75531

HOSE,2.50" ID x 8.50", SAE 20R4 CLASS D1 0R D2

RADIATOR HOSE, , Upper 2.50" ID x 8.50", SAE 20R4 CLASS D1 0R D2

1шт.

5

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16 to 3-3/4")

2шт.

6

A75532

HOSE,2.62" ID, 3.00" ID x 13.40", SAE 20R4 CLASS SC, SAE 20R4 CLASS D1

RADIATOR HOSE, , Lower 2.62" ID, 3.00" ID x 13.40", SAE 20R4 CLASS SC, SAE 20R4 CLASS D1

1шт.

7

A23655

VALVE

- radiator drain

1шт.

8

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.

A76417

KIT

- radiator sealing, Includes: Ref. 13 - 17 and adhesive

1шт.

13

A76422

PAD

- radiator baffle, lower, sealing kit

1шт.

To be attached with 345-22.

1шт.

14

A76420

SEAL

- radiator baffle, top, kit

1шт.

To be attached with 345-22.

1шт.

15

A76419

SEAL

- radiator side, upper, kit

2шт.

To be attached with 345-22.

1шт.

16

A76418

SEAL

- radiator side, lower, kit

2шт.

To be attached with 345-22.

1шт.

17

A76421

SEAL

- radiator baffle, top, kit

1шт.

To be attached with 345-22.

1шт.

345-22

ADHESIVE

- 5 oz. tube (Not illustrated), radiator sealing kit

1шт.
