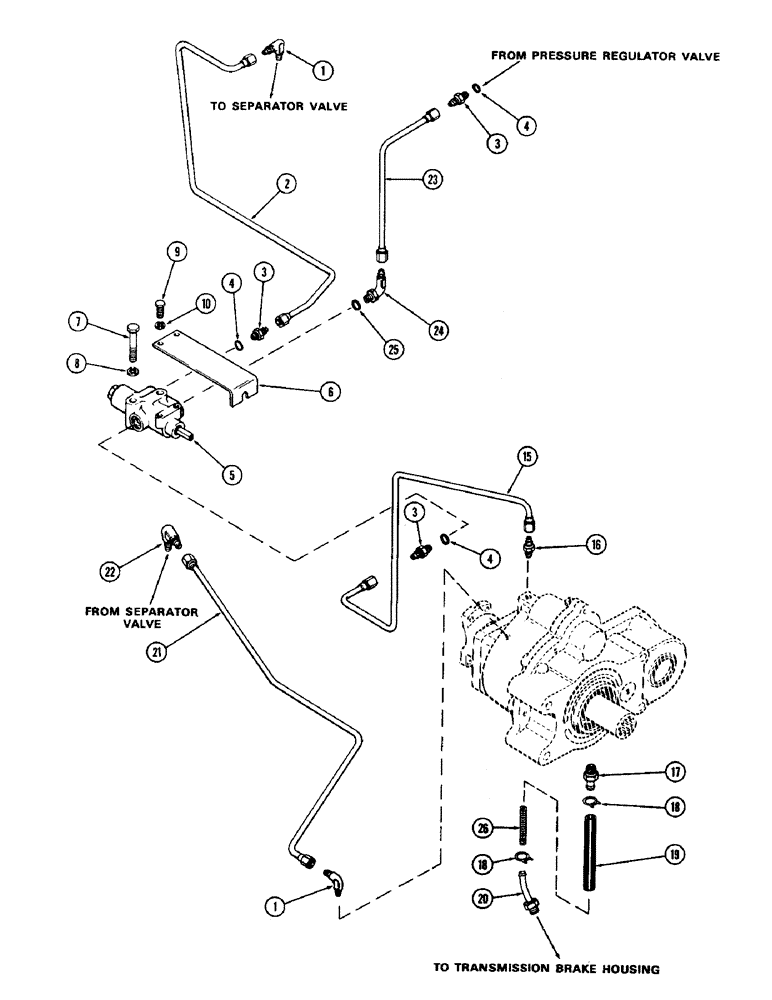

Запчасти Case IH 2470 (174) - P.T.O. HYDRAULICS (06) - POWER TRAIN

1

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees

2шт.

2

A75905

TUBE - P.T.O. valve to separator valve

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY. - straight, Incl. Ref. 4

3шт.

5

A76250

VALVE

ASSY. - P.T.O. control (Replaced A75900) (See fg. 178)

1шт.

6

A75979

BRACKET

- P.T.O. control cable

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex.)

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

A75903

TUBE

- P.T.O., Serial Range: valve-P.T.O.

1шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight

1шт.

17

A76125

FITTING - hose, brake lube (Upper)

1шт.

18

214-107

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose

2шт.

19

A76126

HOSE - rubber

1шт.

20

A76127

FITTING - hose, brake lube (Lower)

1шт.

21

A75904

TUBE - P.T.O. lube

1шт.

22

218-508

ELBOW - 90 degrees (Extra long)

1шт.

23

A75902

TUBE - regulator valve to P.T.O. valve

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - 90 degree adj., Includes: Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

A26685

SPRING - brake lube hose

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.
