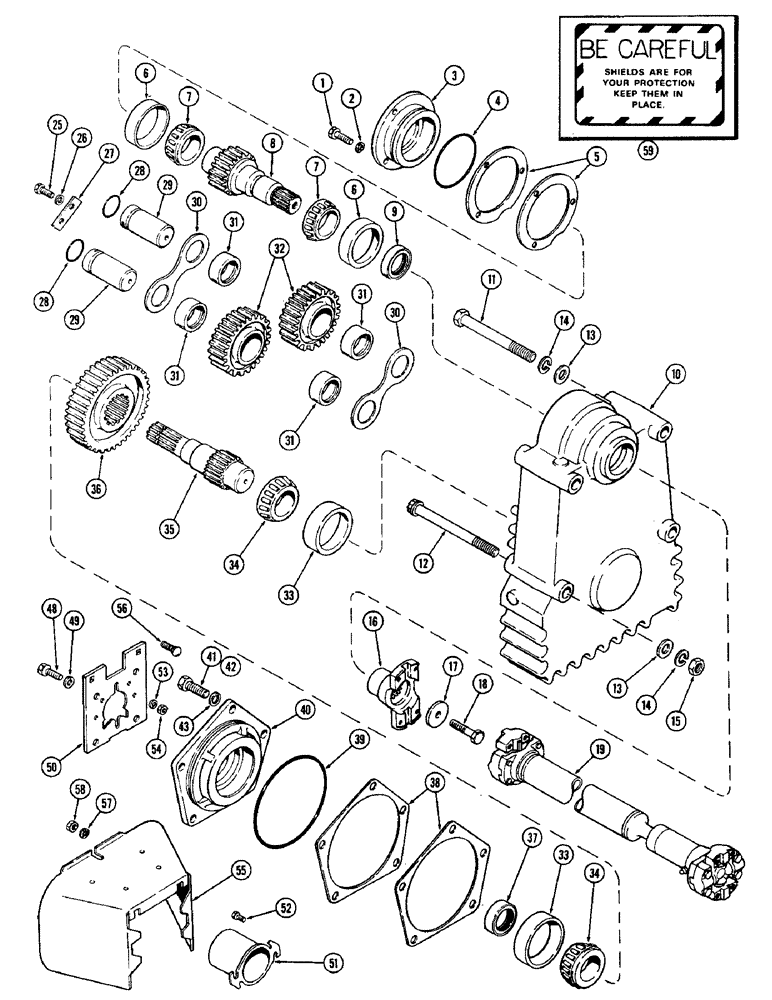

Запчасти Case IH 2470 (172) - P.T.O. DROP BOX (06) - POWER TRAIN

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

2

92-6

LOCK WASHER,3/8"

3шт.

3

A75209

CARRIER

- P.T.O. input pinion bearing

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - P.T.O. input bearing carrier

1шт.

5

A75212

SHIM,.005" Thk

PTO input pinion brg. .005" Thk

1шт.

5

A75213

SHIM,.007" Thk

PTO input pinion brg. .007" Thk

1шт.

6

A75210

BEARING CUP,3.5433" OD x 0.9055"

CUP - bearing, P.T.O. input pinion

2шт.

7

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

CONE - bearing, P.T.O. input pinion

2шт.

8

A75208

PINION

- P.T.O. input

1шт.

9

A57708

SEAL

- oil, P.T.O. input shaft

1шт.

10

A76089

HOUSING

- P.T.O. drop box

1шт.

11

15-12112

BOLT (SPREADER),Hex, 3/4" - 10 x 7", Gr 5

BOLT - (3/4 x 7" N.C. hex. head)

2шт.

12

166-149

SCREW,Flg, 3/4" - 10 x 8", Gr 8

BOLT - (3/4 x 8" N.C. 12 pt. Ferry hd. cap)

2шт.

13

A27449

WASHER

- drop box mounting bolt

4шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

2шт.

16

A75204

YOKE

- P.T.O. input pinion

1шт.

17

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- P.T.O. input pinion yoke

1шт.

18

113-2405

SCREW

BOLT - (1/2 x 2" N.C. hex., w/Jay-Lock)

1шт.

19

A75223

SHAFT

ASSY. - P.T.O. drive (See figure 180)

1шт.

25

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

A75215

PLATE

- lock, P.T.O. idler shaft

1шт.

28

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - P.T.O. idler shaft

2шт.

29

A75214

SHAFT

- P.T.O. idler shaft

2шт.

30

A63281

WASHER

- thrust, P.T.O. idler gear

2шт.

31

A63282

ROLLER BEARING,1.75" ID x 2.1268" OD x 1"

BEARING - needle, P.T.O. idler gear

4шт.

32

A63280

GEAR

- P.T.O. idler

2шт.

33

A75218

BEARING CUP,4.1339" OD x 1.1417"

CUP - bearing, P.T.O. output shaft

2шт.

34

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - bearing, P.T.O. output shaft

2шт.

35

A75217

SHAFT

- P.T.O. output

1шт.

36

A75216

GEAR

- P.T.O. output

1шт.

37

A57708

SEAL

- oil, P.T.O. output shaft

1шт.

38

A75220

SHIM,.005" Thk

PTO output shaft brg. .005" Thk

1шт.

38

A75221

SHIM,.007" Thk

PTO output shaft brg. .007" Thk

1шт.

39

R21494

O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro

"O" RING - P.T.O. output shaft bearing carrier

1шт.

40

A75222

CARRIER - bearing, P.T.O. output shaft

1шт.

41

113-2609

BOLT

- (5/8 x 1-1/2" N.C. hex., w/Jaylock)

1шт.

42

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

43

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

48

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- (3/8 x 1-1/4" N.C. hex.)

4шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

50

A26878

PLATE - mounting, universal P.T.O. guard

1шт.

51

A20483

GUARD

- P.T.O. shaft

1шт.

52

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

53

92-6

LOCK WASHER,3/8"

2шт.

54

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

55

A27335

GUARD

- P.T.O.

1шт.

56

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

57

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

58

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

59

321-608

DECAL

- "Be Careful", P.T.O. shield (See figure 262)

1шт.
