(171C) - HYDRAULIC PUMP DRIVE HOUSING, SEE NOTE

Запчасти Case IH 2470 (171C) - HYDRAULIC PUMP DRIVE HOUSING, SEE NOTE (06) - POWER TRAIN

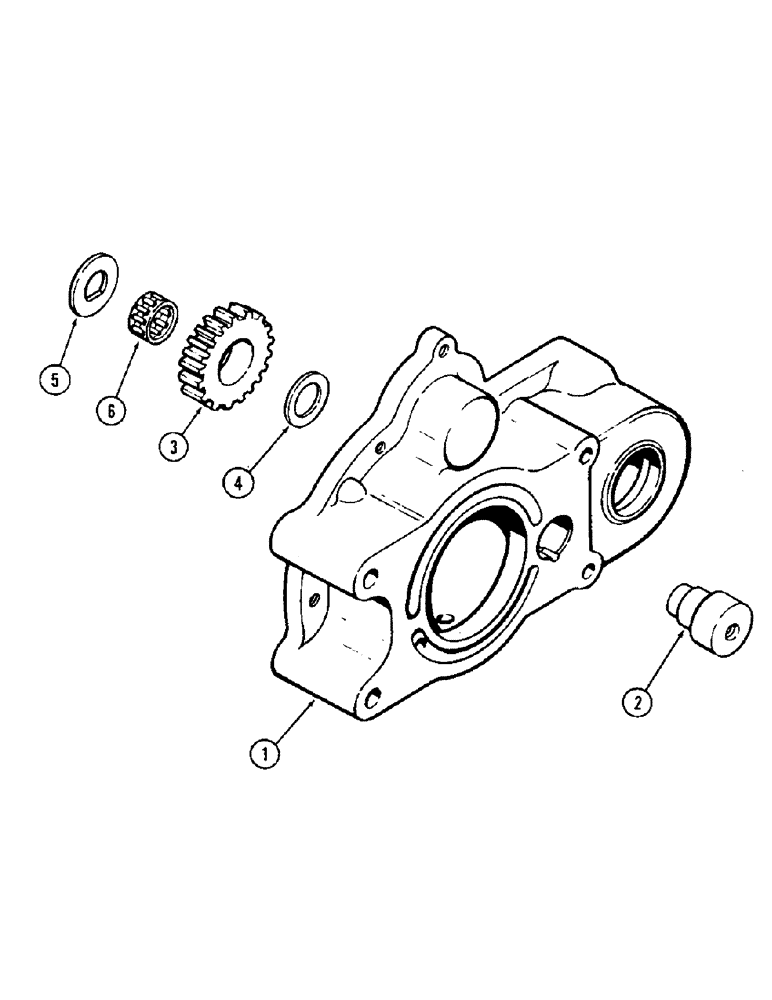

Схема запчастей Case IH 2470 - (171C) - HYDRAULIC PUMP DRIVE HOUSING, SEE NOTE (06) - POWER TRAIN
6
1
3
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A142928

HOUSING

- hyd. pump drive

1шт.

2

A76554

SHAFT

- idler

1шт.

3

A76555

GEAR

- idler

1шт.

4

A76556

WASHER

- thrust, 2 x 1-1/4 x 3/32"

1шт.

5

A76360

WASHER

- thrust, 2 x 1 x 3/32"

1шт.

6

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

- needle, hyd. pump drive idler gear

1шт.
