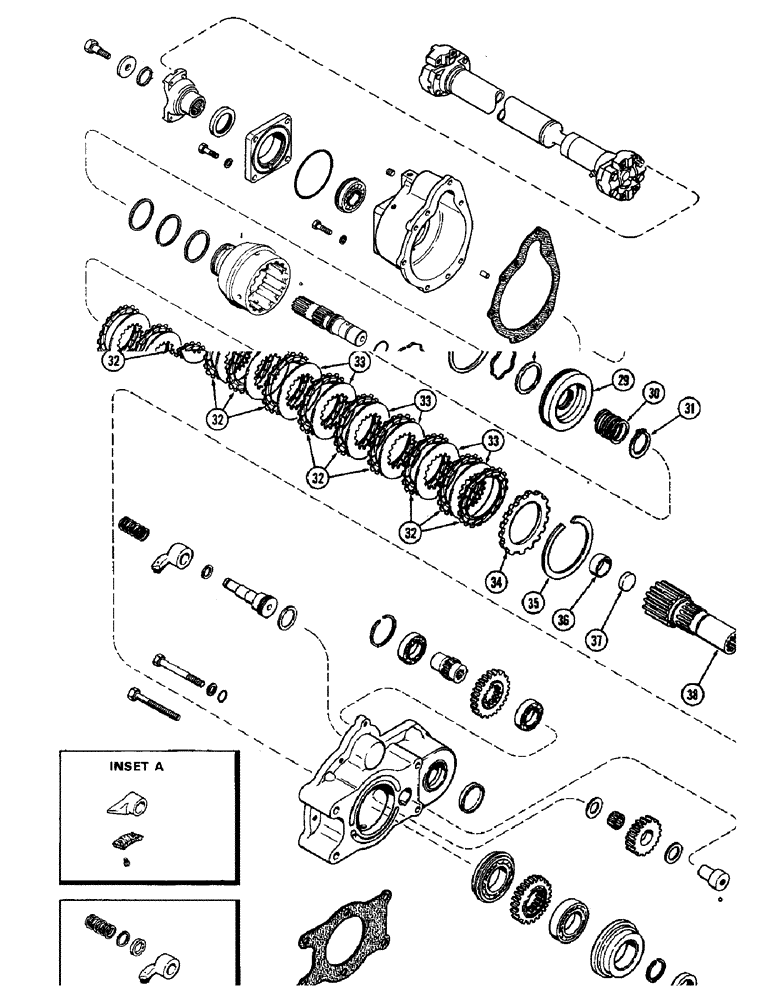

Запчасти Case IH 2470 (170) - P.T.O. BRAKE & HYDRAULIC PUMP DRIVE (06) - POWER TRAIN

1

A76338

SPRING

- P.T.O. brake return (1-5/8" free length) (Replaced A30025)

1шт.

2

A76387

SHOE

ASSY. - P.T.O. brake (Bonded) (Replaces Ref. nos. 3, 4 & 5 - see inset A) (Order A142994)

1шт.

3

A75199

SHOE

- P.T.O. brake (Order A76387)

1шт.

4

A32454

FACING

- P.T.O. brake shoe

1шт.

5

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - (#10 x 3/8" N.C. self-tapping)

2шт.

6

A76340

SEALING RING

RING - P.T.O. brake piston (3/4" O.D.)

1шт.

7

A76339

PISTON

- P.T.O. brake (Replaces A75197)

1шт.

8

A58989

RING

- P.T.O. brake piston (1-3/4" O.D.)

1шт.

9

A27414

RING

- snap, hyd. pump drive coupling bearing

1шт.

10

A75193

BALL BEARING,1.5748" ID x 2.6882" OD x 0.5906" Thk

BEARING - hyd. pump drive coupling

2шт.

11

A75192

COUPLING, BREAK AWAY

COUPLING - hyd. pump drive

1шт.

12

A75194

GEAR

- driven, hyd. pump drive (30 ext./27 int. teeth)

1шт.

13

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

14

A75184

BOLT

- pump drive hsg. to trans. case

2шт.

15

A75185

WASHER

- sealing, pump drive hsg. bolt (11/16 x 1 x 1/16")

2шт.

16

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O" RING - pump drive housing bolt (1/2 x 5/8 x 1/16")

2шт.

20

A75182

HOUSING

- hyd. pump drive (For repairs see figure 171C)

1шт.

21

A75183

GASKET

- pump drive housing

1шт.

22

A75190

SHAFT

- idler, hyd. pump drive

1шт.

23

211-7

BALL,1/4" Dia

- retainer, hyd. pump drive idler shaft 1/4" Dia

1шт.

24

A58406

SPACER

WASHER - thrust, hyd. pump drive idler gear (1 x 1-3/4 x 3/32")

2шт.

25

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - needle, hyd. pump drive idler gear

1шт.

26

A75191

GEAR

- idler, hyd. pump drive (25 ext. teeth)

1шт.

27

A75189

BEARING

- input shaft, rear (2-5/32 x 3-15/16 x 13/16")

1шт.

28

A75188

GEAR

- hyd. pump drive (30 ext./33 int. teeth)

1шт.

29

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - input shaft, front (2 x 3-1/2 x 25/32")

1шт.

30

A76215

RING - pilot, input shaft bearing

1шт.

31

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, front bearing to input shaft

1шт.

32

A76216

OIL SEAL

- oil, pilot ring

1шт.

33

A24361

PLUG

- cup, hyd. pump drive hsg.

1шт.

38

A76431

KIT

- P.T.O. brake, Includes: Ref. 39 - 42

1шт.

39

A76338

SPRING

- P.T.O. brake

1шт.

40

A37955

WASHER

- P.T.O. brake (15/16 x 1-1/4 x 5/64")

1шт.

41

A38412

WASHER

- P.T.O. brake (1 x 1-3/8 x 17/64")

1шт.

42

A76318

SHOE

ASSY. - P.T.O. brake (Order ref. 1, 2 & 6 thru 8)

1шт.
