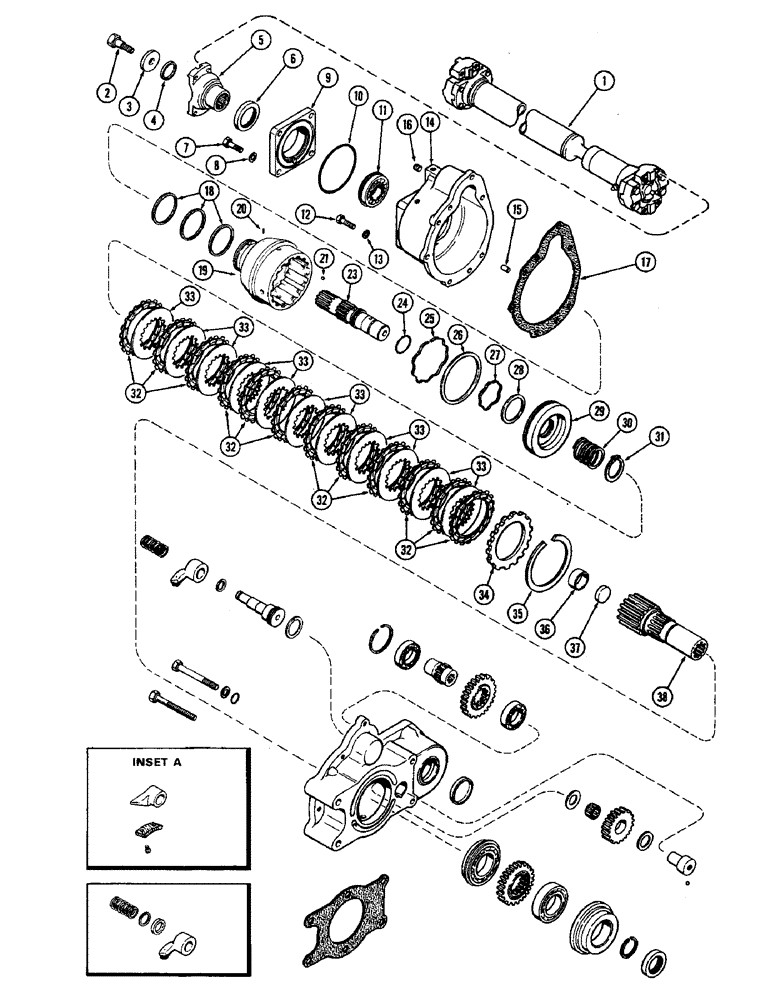

Запчасти Case IH 2470 (168) - P.T.O. INPUT & OUTPUT SHAFTS & CLUTCH (06) - POWER TRAIN

1

A75223

SHAFT

SPARE PART ASSY, PTO drive (See figure 180)

1шт.

2

113-2405

SCREW

BOLT - output shaft yoke (1/2 x 2" N.C. hex. w/Jaylock)

1шт.

3

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

PTO clutch output shaft yoke (17/32 x 2 x 3/8")

1шт.

4

A75205

SEALING WASHER

PTO clutch output shaft yoke (1-13/32 x 1-39/64 x 19/64")

1шт.

5

A75204

YOKE

UNIVERSAL JOINT YOKE PTO clutch output shaft

1шт.

6

A76014

OIL SEAL

Oil, PTO housing cap (2-1/8 x 2-7/8 x 7/16")

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A75203

CAP

PTO clutch housing

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Sealing, PTO clutch hsg. cap

1шт.

11

G13606

BALL BEARING

PTO clutch output shaft

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

REF

INSTRUCTION

HOUSING - PTO clutch (See figure 171A)

1шт.

15

A8134

PIN

DOWEL - PTO clutch hsg. (3/8 x 3/4")

2шт.

16

221-841

PLUG

Pipe (1/4" hex. socket)

1шт.

17

A75196

GASKET

PTO clutch hsg.

1шт.

18

A58384

RING

Seal, PTO clutch carrier (3-3/16" O.D. x 3/32" width)

3шт.

19

A77218

CARRIER

ASSY, PTO clutch piston, Includes Ref. 20 and 21

1шт.

20

138-2044

PIN,1/16" x 1/2", Coiled

Roll

1шт.

21

211-6

BALL,7/32" Dia

Steel

1шт.

23

A76017

SPARE PART PTO output

1шт.

24

L13008

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

PTO clutch carrier

1шт.

25

A59012

SPRING

PTO clutch piston seal

1шт.

26

A59011

RING

SEAL - PTO clutch piston, external (4-3/4" O.D.)

1шт.

27

A63259

SPRING

PTO clutch piston seal

1шт.

28

A63258

SEAL

PTO clutch piston, internal

1шт.

29

A63257

PISTON

PTO clutch

1шт.

30

A63260

SPRING

Return, PTO clutch piston (1-3/4" free length)

1шт.

31

T37909

SNAP RING,#150, Ext

PTO clutch piston return spring

1шт.

32

A66364

PLATE

Sintered, PTO clutch (Replaces A59231)

12шт.

33

A66365

PLATE

Steel, PTO clutch (Replaced A57170 & A65425)

11шт.

34

A63261

PLATE

Back-up, PTO clutch plate

1шт.

35

A63262

RING

Snap, PTO clutch back-up plate

1шт.

36

A76016

BUSHING

PTO output shaft

1шт.

37

41-1024

PLUG,Cup, 1 1/2"

Input shaft

1шт.

38

A76214

SHAFT

Input, pump drive & PTO

1шт.
