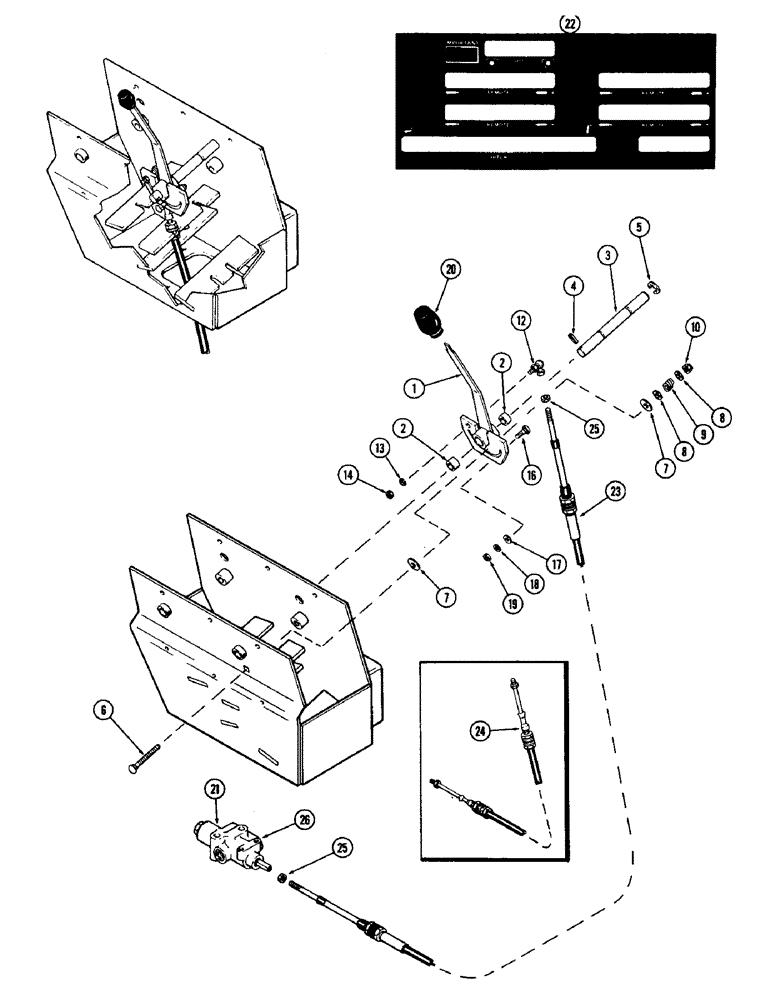

Запчасти Case IH 2470 (166) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A75906

LEVER

ASSY. - P.T.O., Includes: Ref. 2

1шт.

2

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

3

A75736

SHAFT

- console lever

1шт.

4

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

5

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

1шт.

6

111-327

CARRIAGE BOLT,Short NK, 3/8"-16 x 3", G2

BOLT - (3/8 x 3" N.C. rd. hd. sq. neck)

1шт.

7

A61069

DISC

WASHER - friction (25/64 x 1-1/4 x 1/8")

2шт.

8

195-104

WASHER,3/8"

- flat (7/16 x 1 x 5/64")

2шт.

9

A75454

SPRING

- brake (1" free length)

1шт.

10

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" N.C. hex.)

1шт.

12

A75447

BALL JOINT

- (#10-32 N.F.)

1шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

14

129-37

NUT,#10-32

1шт.

15

A76250

VALVE

ASSY. - P.T.O. control (Replaced A75900) (See fg. 178)

1шт.

16

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

17

195-525

WASHER,3/8", SAE

- flat (13/32 x 13/16 x 5/64")

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

A65699

KNOB

- lever, w/brass insert (Replaced A23885)

1шт.

21

A75997

CONSOLE - operator's (See figure 254)

1шт.

22

321-2647

DECAL

- console top (Replaces 321-2452)

1шт.

23

A76410

CABLE

- P.T.O. (64" long) (1st used trac. ser. no. 8712343)

1шт.

24

A75910

CABLE

- P.T.O. (60" long) (Used prior to trac. ser. #8712343)

1шт.

25

129-37

NUT,#10-32

2шт.
