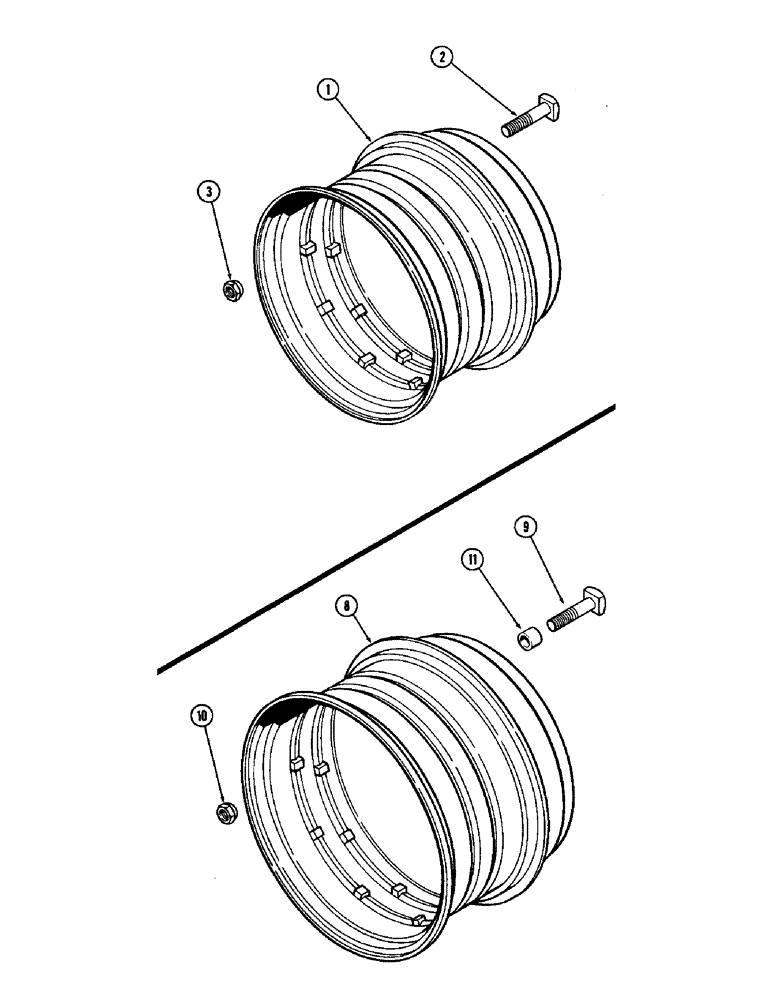

Запчасти Case IH 2470 (158) - DUAL WHEELS (06) - POWER TRAIN

1

A138394

RIM

- outer dual wheel (Takes 18.4 - 34 tire)

4шт.

2

117-608

BOLT

- (3/4 x 3-3/4" N.C. sq. hd.)

40шт.

3

A76432

NUT

- (3/4" N.C. hex. w/90 degree seat)

40шт.

8

A76433

WHEEL

RIM - outer dual wheel (Takes 20.8 - 34 tire)

4шт.

9

117-609

BOLT

- (3/4 x 5" N.C. sq. hd.)

40шт.

10

A76432

NUT

- (3/4" N.C. hex., 90 degree seat)

40шт.

11

A76434

SPACER

- dual wheel mounting

40шт.
