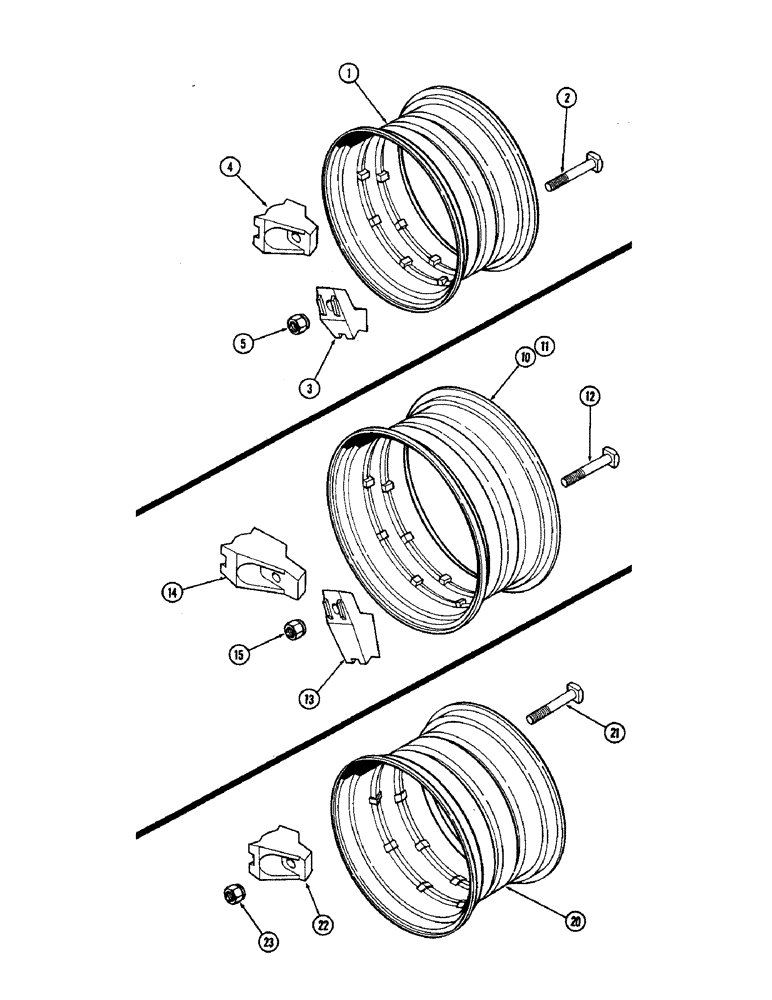

Запчасти Case IH 2470 (156) - SINGLE WHEELS AND CLAMPS (06) - POWER TRAIN

1

A75882

RIM - wheel (Takes 18.4 - 30 tire)

4шт.

2

117-609

BOLT

- (3/4 x 5" N.C. sq. hd.)

40шт.

3

A75892

CLAMP - rim, single position (For 18.4 - 30 wheel)

40шт.

4

A64712

CLAMP

- rim, double position (For 18.4 - 30 wheel)

40шт.

5

129-137

NUT,3/4"-10, G5

- (3/4" N.C. hex.)

40шт.

10

A75887

WHEEL

RIM - wheel (Takes 18.4 - 34 tire)

4шт.

11

A75891

RIM

- wheel (Takes 20.8 - 34 tire)

4шт.

12

117-609

BOLT

- (3/4 x 5" N.C. sq. hd.)

40шт.

13

A75893

CLAMP

- rim, single position (For 20.8 - 34 wheel)

40шт.

14

A75895

CLAMP

- rim, double position (For 18.4 - 34 & 20.8 - 34 wheel)

40шт.

15

129-137

NUT,3/4"-10, G5

- (3/4" N.C. hex.)

40шт.

20

A75890

RIM

- wheel (Takes 23.1 - 30 tire)

4шт.

21

117-609

BOLT

- (3/4 x 5" N.C. sq. hd.)

40шт.

22

A75894

CLAMP

- rim, double position (For 23.1 - 30 wheel)

40шт.

23

129-137

NUT,3/4"-10, G5

- (3/4" N.C. hex.)

40шт.
