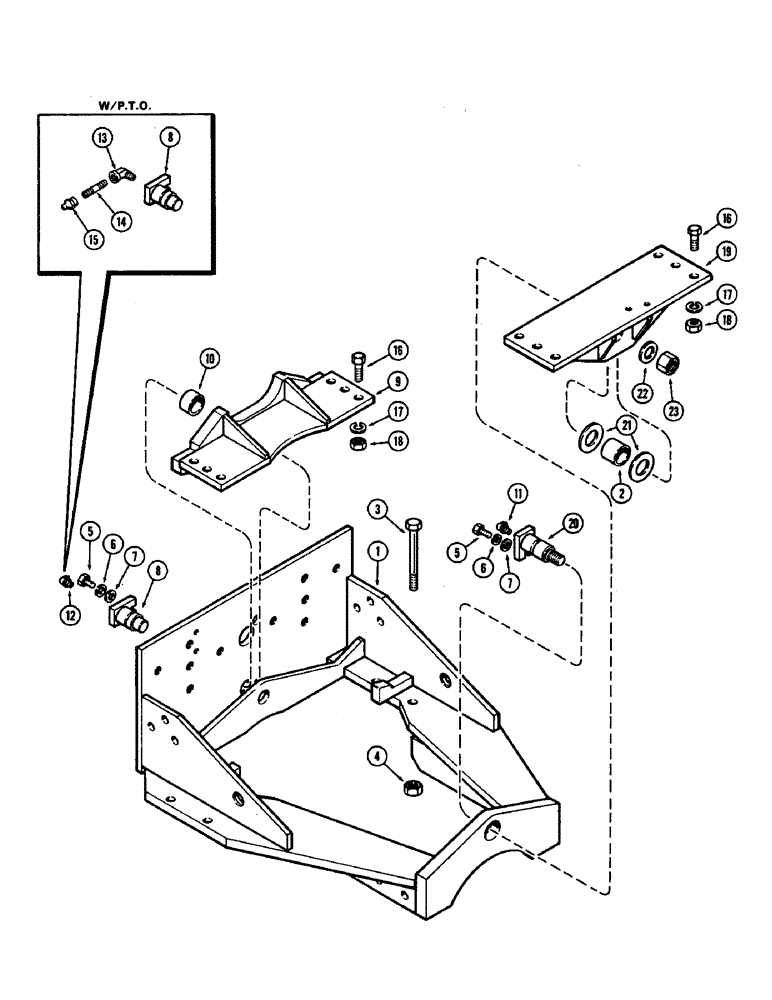

Запчасти Case IH 2470 (154) - REAR AXLE TRUNNION AND PIVOT (06) - POWER TRAIN

1

A75650

TRUNNION ASSY. - rear axle, Includes: Ref. 2

1шт.

2

A75651

BUSHING,44.96mm ID x 53.92mm OD x 48.26mm L

1шт.

3

28-14144

BOLT,Hex, 7/8" - 14 x 9", Gr 8

- (7/8 x 9" N.F. hex.)

8шт.

4

131-187

LOCK NUT,7/8"-14, GB

NUT - lock (7/8" N.F. Esna)

8шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

95-8

WASHER,1/2"

- plain 1/2"

2шт.

8

A75661

PIN

- rear trunnion

1шт.

9

A75664

ANCHOR ASSY. - rear trunnion, Includes: Ref. 10

1шт.

10

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

1шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Used w/& w/o P.T.O.) 90º, 1/8" NPT x .84" lg

1шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Used w/o P.T.O.) 90º, 1/8" NPT x .84" lg

1шт.

13

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degrees (Used w/P.T.O.)

1шт.

14

221-112

PIPE

NIPPLE - pipe (1/8 x 3-1/2") (Used w/P.T.O.)

1шт.

15

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - lube (Straight) (Used w/P.T.O.)

1шт.

16

113-739

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- (3/4 x 2-1/4" N.C. hex.)

12шт.

17

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

18

129-108

NUT,3/4"-10, G5

12шт.

19

A75669

ANCHOR ASSY. - front trunnion

1шт.

20

A75674

PIN

- front trunnion

1шт.

21

A14003

WASHER

- thrust

2шт.

22

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- plain (1-1/4")

1шт.

23

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , Esna 1 1/4"-12, GB

1шт.
