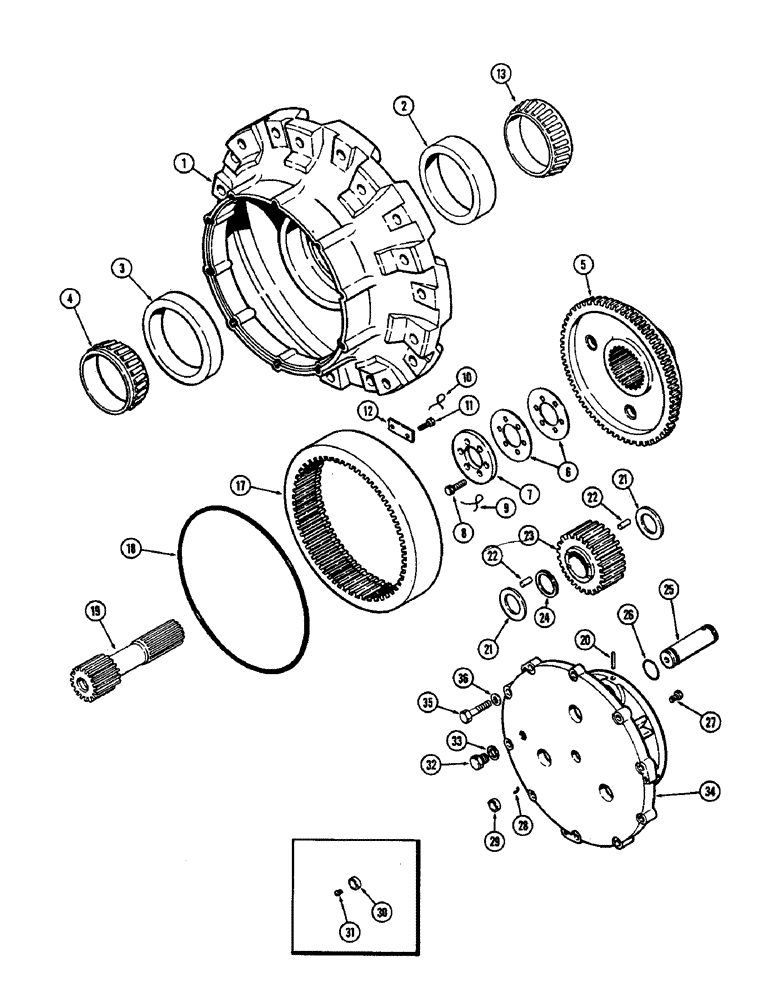

Запчасти Case IH 2470 (152) - REAR AXLE PLANETARY, COMMON TO REAR RIGID STEER & REAR HYDRAULIC STEER (06) - POWER TRAIN

1

A77101

HUB

ASSY. - wheel drive (Replaces A75260), Includes: Ref. 2 and 3

2шт.

2

A75262

CUP

- bearing, wheel drive hub (7-3/4" O.D. x 1-1/2")

1шт.

3

L31698

BEARING CUP

CUP - bearing, wheel drive hub (7-3/16" O.D. x 1-5/16")

1шт.

4

A76461

HOLDER

ASSY. - planetary ring gear

2шт.

5

A75263

CONE

- bearing, planetary ring gear (5" I.D. x 1-13/16")

1шт.

6

A75264

SHIM,.003" Thk

Wheel hub brg. .003" Thk

1шт.

6

A75265

SHIM,.007" Thk

Wheel hub brg. .007" Thk

1шт.

6

A75266

SHIM,.020" Thk

Wheel hub brg. .020" Thk

1шт.

7

A75267

CAP

- retainer, wheel hub brg. & holder

2шт.

8

A75268

BOLT

- (3/8 x 1-1/4" N.C. hex.) (Drilled)

12шт.

9

391-629

ELECTRICAL WIRE

WIRE - safety (#16 x 24")

2шт.

10

391-675

WIRE - safety (#17 x 6")

12шт.

11

46945

SCREW

BOLT - (3/8 x 1" N.C. hex.) (Drilled)

24шт.

12

A75270

RETAINER

- planetary ring gear

12шт.

13

L31699

TAPERED BEARING

CONE - bearing, wheel spindle (5" I.D. x 1-1/2")

1шт.

17

A76019

GEAR

- ring, planetary

2шт.

18

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to wheel hub (15-1/2 x 15-29/32 x 17/64")

2шт.

19

A76021

SHAFT

- planet sun gear

2шт.

20

138-2005

PIN,1/4" x 1", Coiled

6шт.

21

A63228

WASHER

- planet gear needle roller bearing (1-39/64 x 3 x 1/32")

12шт.

22

A75274

ROLLER

BEARING - needle roller, planet gear

228шт.

23

A76020

GEAR

- planet

6шт.

24

A63227

SPACER

- planet gear needle roller bearing (1-21/32 x 2-13/64 x 1/32")

6шт.

25

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear (Replaced A75273)

6шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - planet gear pin (1-5/16 x 1-9/16 x 1/8")

6шт.

27

A75277

ADJUSTMENT SCREW

- adjusting, planet sun gear shaft

2шт.

28

A75278

PIN

- lock, planet sun gear shaft adj. bolt

2шт.

29

41-1016

PLUG,Cup, 1"

- cup (1") (Replaced Refs. 30 & 31)

2шт.

30

A75279

PLUG

- cup, planetary carrier

2шт.

31

A43250

BREATHER

VALVE - relief, planetary carrier (Replaces R11152)

2шт.

32

A14280

PLUG

- planetary fill & drain

2шт.

33

A58608

GASKET

- planetary fill & drain plug

2шт.

34

A76342

COVER

CARRIER - planetary (Replaced A75271)

2шт.

35

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex.)

20шт.

36

L30674

WASHER

- (17/32 x 1 x 1/8")

20шт.
