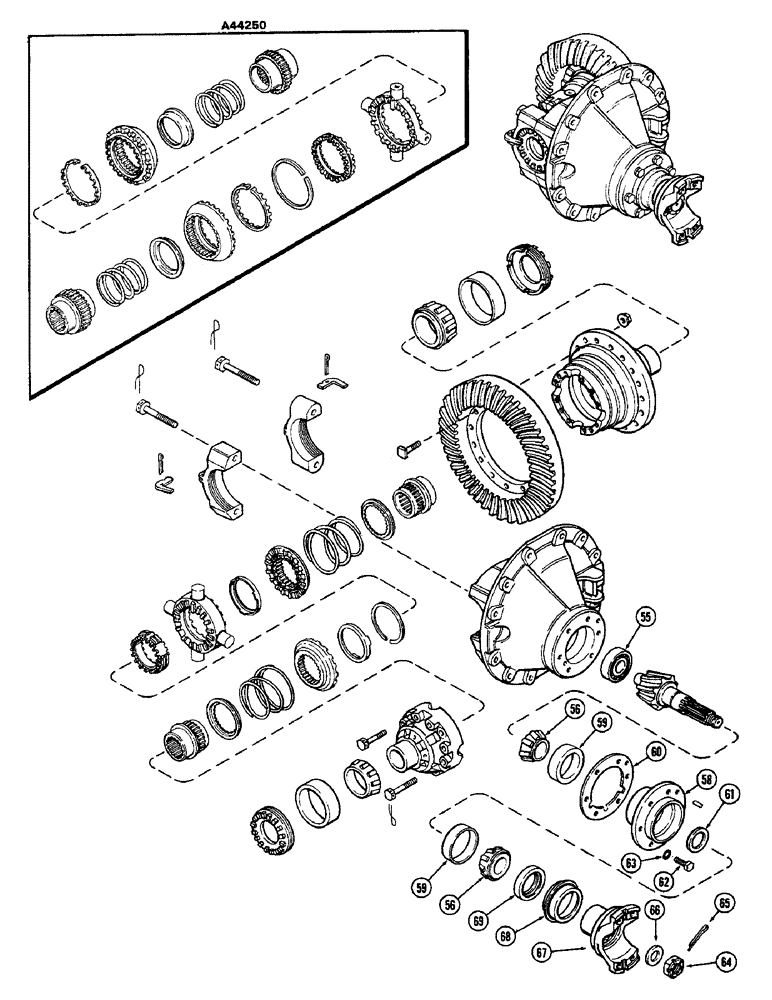

Запчасти Case IH 2470 (147A) - REAR AXLE DIFFERENTIAL CARRIER ASSEMBLY, NO SPIN TYPE, USED PRIOR TO TRACTOR S/N. 8692421 (06) - POWER TRAIN

A44724

CARRIER ASSY. - diff., rear axle (Replaced A75227), Includes: Ref. 55 - 66

1шт.

55

L33062

ROLLER BEARING

BEARING - roller, diff. pinion spigot (Replaces A44208)

1шт.

56

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, diff. pinion

2шт.

A44230

CAGE ASSY.,4.250" OD

- pinion, Includes: Ref. 58 and 59

1шт.

58

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing carrier (Order A44230)

1шт.

59

F61284

BEARING CUP

CUP - bearing, pinion bearing cage

2шт.

60

A44232

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

60

A44233

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.010")

1шт.

60

A44235

SHIM,.020" Thk

Pinion bearing cage .020" Thk

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.030")

1шт.

61

A44242

BUSHING

SPACER - pinion shaft bearing (0.255")

1шт.

61

A44243

SPACER

- pinion shaft bearing (0.257")

1шт.

61

A44244

BUSHING

SPACER - pinion shaft bearing (0.261")

1шт.

61

A44245

BUSHING

SPACER - pinion shaft bearing (0.265")

1шт.

61

A44246

SPACER

- pinion shaft bearing (0.269")

1шт.

61

A44247

SPACER

- pinion shaft bearing (0.271")

1шт.

62

A44212

BOLT

- pinion brg., Serial Range: carrier-cage

6шт.

63

193-33

LOCK WASHER,9/16"

WASHER - lock ( ext. teeth Shakeproof) 9/16"

6шт.

64

A44211

NUT

- drive pinion shaft, Serial Range: end-flange

1шт.

66

A44209

WASHER

- drive pinion shaft, Serial Range: end-flange

1шт.

67

A44360

YOKE

- axle drive shaft, Includes: Ref. 68 and 69

1шт.

A44218

SEAL

CAGE ASSY. - pinion shaft to carrier, Includes: Ref. 68 and 69

1шт.

68

NSS

NOT SOLD SEPARAT

RETAINER - seal cage (Order A44218)

1шт.

69

NSS

NOT SOLD SEPARAT

SEAL - oil, pinion shaft to carrier (Order A44218)

1шт.

65

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
