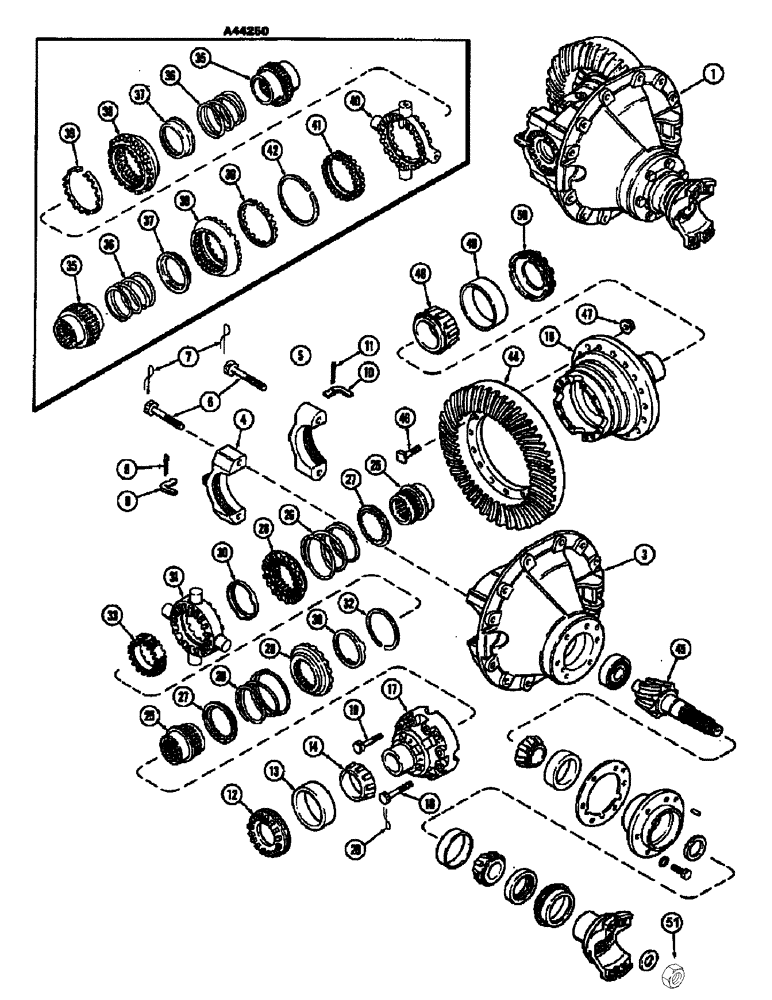

Запчасти Case IH 2470 (146) - REAR AXLE DIFFERENTIAL CARRIER ASSEMBLY, NO SPIN TYPE, USED PRIOR TO TRACTOR S/N. 8692421 (06) - POWER TRAIN

1

A44724

CARRIER ASSY. - differential, rear axle (Replaced A75227), Includes: Ref. 3 - 50

1шт.

A44224

CARRIER

"U" CARRIER ASSY. - diff., w/cap & bolts, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - diff. brg. carrier (Order A44224)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - diff. brg. carrier (Order A44224)

1шт.

6

A44227

BOLT

- diff. brg. carrier cap

4шт.

7

391-620

LOCK,#16 Ga x 12"

WIRE - lock (#16 gauge x 12")

4шт.

8

A44216

LOCK

- adjusting, diff. carrier brg.

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, diff. carrier brg.

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, diff. carrier brg.

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - diff. bearing

1шт.

14

A18173

ROLLER BEARING

CONE - bearing, diff. case

1шт.

A44248

SEAL

DIFFERENTIAL ASSY. - w/gear & no spin, Includes: Ref. 16 - 42

1шт.

16

NSS

NOT SOLD SEPARAT

CASE - differential, flanged half (Order A44248)

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - differential, plain half (Order A44248)

1шт.

18

A44241

BOLT,1/2" x 2 7/8", Gr 7

SCREW - cap, case to flange (Long)

8шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

SCREW - cap, case to flange (Short)

4шт.

20

391-709

ELECTRICAL WIRE

WIRE - lock (#18 gauge x 84")

1шт.

A44684

DIFFERENTIAL

ASSY. - w/gears & no spin (Replaces A44250 - see inset), Includes: Ref. 25 - 33

1шт.

25

A44692

GEAR

- side 30 splines

2шт.

26

A44687

SPRING - no spin

2шт.

27

A44688

DIFFERENTIAL

RETAINER - no spin

2шт.

28

A44690

CLUTCH - no spin

2шт.

A44693

U-JOINT SPIDER

REPAIR KIT - no spin center section w/cross, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

RING - holdout, no spin (Order A44693)

2шт.

31

NSS

NOT SOLD SEPARAT

SPIDER - no spin (Order A44693)

1шт.

32

NSS

NOT SOLD SEPARAT

SNAP RING - no spin (Order A44693)

1шт.

33

NSS

NOT SOLD SEPARAT

CAM - center

1шт.

A44250

DIFFERENTIAL ASSY

DIFF. ASSY. - w/gears & no spin (Order A44684), Includes: Ref. 35 - 42

1шт.

35

A44251

GEAR - side

2шт.

36

A44257

SPRING - differential

2шт.

37

A44256

RETAINER - spring

2шт.

38

A45200

CLUTCH

- cam, w/holdout ring, Includes: Ref. 39

2шт.

39

NSS

NOT SOLD SEPARAT

RING - cam holdout

2шт.

40

A44258

SPIDER ASSY.

SPIDER - differential

1шт.

41

A44253

CAM

- center

1шт.

42

A44252

RING, SNAP

SNAP RING - cross

1шт.

253863A1

GEAR-SET

GEAR SET - matched pinion & drive gear, Includes: Ref. 44, 45 and 51

1шт.

44

NSS

NOT SOLD SEPARAT

GEAR - drive (39 teeth) (Order A44260)

1шт.

45

NSS

NOT SOLD SEPARAT

PINION - drive (8 teeth) (Order A44260)

1шт.

46

A44263

STEP BOLT

BOLT - differential, Serial Range: gear-case

16шт.

47

A44264

NUT

- differential, Serial Range: gear-case

16шт.

48

A31243

ROLLER BEARING

CONE - bearing, diff.

1шт.

49

A31242

CUP

- bearing, diff.

1шт.

50

A44215

NUT

- adjusting, diff. carrier brg.

1шт.

51

323688A1

NUT

- drive pinion

1шт.
