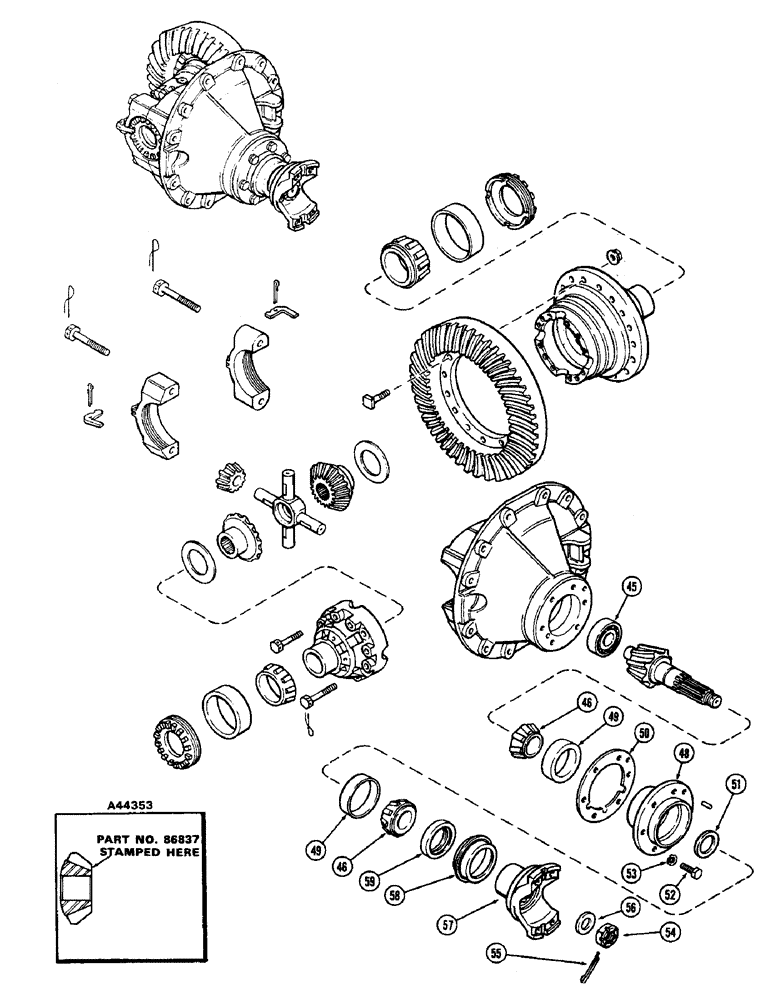

Запчасти Case IH 2470 (145A) - REAR AXLE DIFFERENTIAL CARRIER ASSYEMBLY, TORQUE PROPORTIONAL TYPE, 1ST USED TRACTOR S/N. 8692421 (06) - POWER TRAIN

A76240

SPARE PART

CARRIER ASSY. - diff., rear axle, Includes: Ref. 45 - 56

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, diff. pinion spigot

1шт.

46

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, diff. pinion

2шт.

A44230

CAGE ASSY.,4.250" OD

- pinion, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing carrier (Order A44230)

1шт.

49

F61284

BEARING CUP

CUP - bearing, pinion bearing cage

2шт.

50

A44232

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

50

A44233

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.010")

1шт.

50

A44235

SHIM,.020" Thk

Pinion bearing cage .020" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.030")

1шт.

51

A44242

BUSHING

SPACER - pinion shaft bearing (0.255")

1шт.

51

A44243

SPACER

- pinion shaft bearing (0.257")

1шт.

51

A44244

BUSHING

SPACER - pinion shaft bearing (0.261")

1шт.

51

A44245

BUSHING

SPACER - pinion shaft bearing (0.265")

1шт.

51

A44246

SPACER

- pinion shaft bearing (0.269")

1шт.

51

A44247

SPACER

- pinion shaft bearing (0.271")

1шт.

52

A44212

BOLT

- pinion bearing, Serial Range: carrier-cage

6шт.

53

193-33

LOCK WASHER,9/16"

WASHER - lock ( ext. teeth Shakeproof) 9/16"

6шт.

54

A44211

NUT

- drive pinion shaft, Serial Range: end-flange

1шт.

56

A44209

WASHER

- drive pinion shaft, Serial Range: end-flange

1шт.

57

A44360

YOKE

- axle drive shaft, Includes: Ref. 58 and 59

1шт.

A44218

SEAL

CAGE ASSY. - pinion shaft to carrier, Includes: Ref. 58 and 59

1шт.

58

NSS

NOT SOLD SEPARAT

RETAINER - seal cage (Order A44218)

1шт.

59

NSS

NOT SOLD SEPARAT

SEAL - oil, pinion shaft to carrier (Order A44218)

1шт.

55

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
