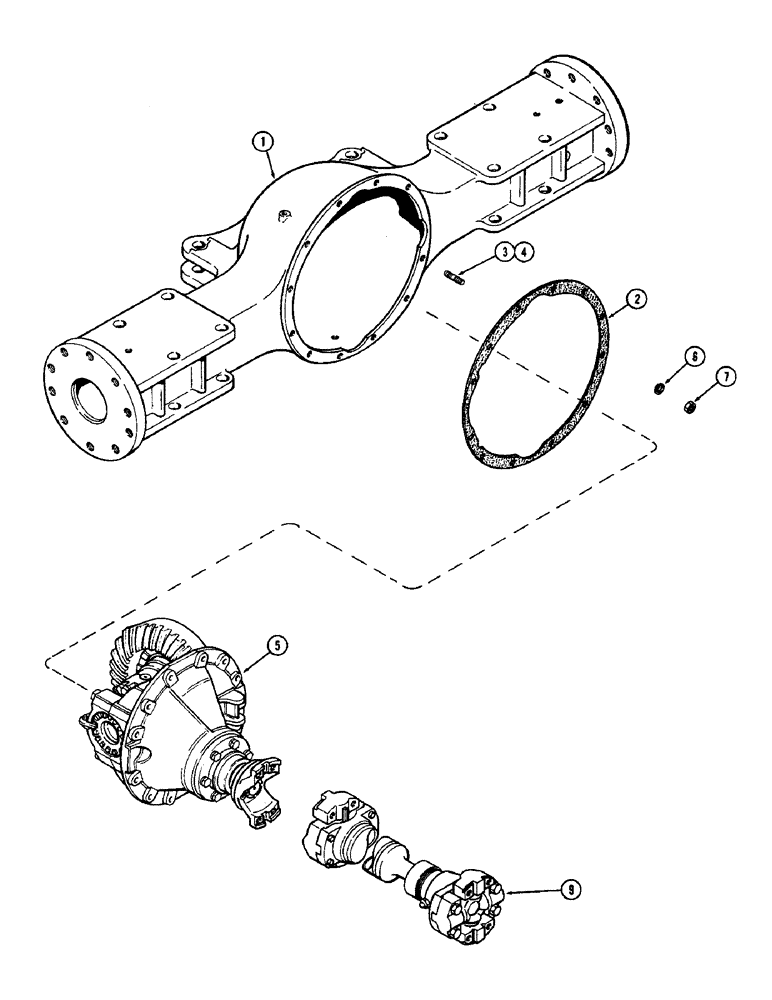

Запчасти Case IH 2470 (142) - REAR AXLE HOUSING AND DIFFERENTIAL CARRIER ASSEMBLY, COMMON TO REAR RIGID STEER AND REAR HYD. STEER (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - axle, differential (See figure 148 & 150)

1шт.

2

A75228

GASKET

Diff. assy. to diff. hsg.

1шт.

3

A50241

STUD

Mounting, diff. assy.

8шт.

4

A75985

STUD

Mounting, diff. assy.

4шт.

5

A76240

SPARE PART

DIFFERENTIAL ASSY. - rear axle (1st used tractor S/N 8692421) (See figures 144 & 145A)

1шт.

5

A44724

SPARE PART DIFFERENTIAL ASSY. - rear axle (Replaced A75227) (Used prior to tractor S/N 8692421) (See figures 146 & 147A)

1шт.

6

92-8

LOCK WASHER,1/2"

12шт.

7

25-108

NUT,1/2"-13, G5

Hex

12шт.

8

A44360

YOKE

UNIVERSAL JOINT YOKE Axle drive shaft (Replaced A75229)

1шт.

9

A75281

SHAFT

ASSY - rear axle drive (See figure 108)

1шт.
