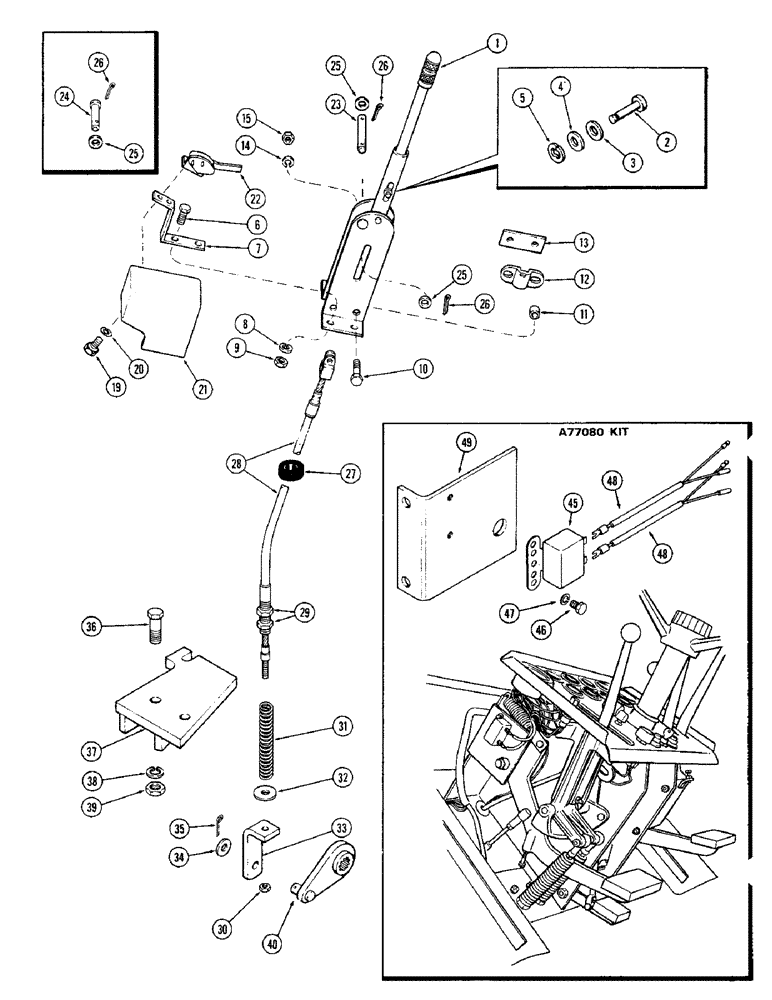

Запчасти Case IH 2470 (140) - PARKING BRAKE (06) - POWER TRAIN

1

A76108

LEVER

ASSY. - parking brake, Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

- lever

1шт.

3

D47261

WASHER

- spring

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

5

C14652

RING

SNAP RING - lever pin

1шт.

6

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

7

A75751

BRACKET

- hand brake switch

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

11

A31238

BUSHING

SPACER - cable clamp

2шт.

12

A76109

CLAMP

- parking brake cable

1шт.

13

A75745

BUSHING

SPACER - hand brake

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

163-8

BOLT - (#10-32 x 1/2" hex. head)

2шт.

20

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

21

A75753

COVER - light switch

1шт.

22

A33977

SWITCH

- lamp, hand brake

1шт.

23

A76379

PIN

- clevis (5/16 x 2-5/8") (1st used tractor serial no. 8711832)

1шт.

24

A59153

CLEVIS PIN

PIN - clevis, brake light (Used prior to tractor serial no. 8711832) (Order 1-A76379 pin, 1-132-26 cotter pin and 1-195-21 washer)

1шт.

25

195-21

WASHER,5/16"

- (11/32 x 11/16")

2шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

27

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

28

A75746

CABLE

ASSY. - parking brake, Includes: Ref. 29

1шт.

29

129-146

NUT,Jam, 9/16"-12, G5

- (9/16" N.C. hex., jam) (Plated)

2шт.

30

131-85

LOCK NUT,5/16"-24, GB

NUT - (5/16" N.F. hex., Esna)

1шт.

31

A31237

SPRING

- brake lever

1шт.

32

195-2022

WASHER

- (11/32 x 1-3/8 x 11 gauge)

1шт.

33

A75752

BRACKET - brake cable

1шт.

34

195-106

WASHER,1/2"

- plain () 1/2"

1шт.

35

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

36

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

37

A75747

BRACKET - bulkhead brake cable

1шт.

38

192-65

LOCK WASHER,5/8"

5/8"

2шт.

39

425-1410

JAM NUT,Jam, 5/8"-11, G5

- (5/8" N.C. hex.)

2шт.

40

A75316

LEVER - hand brake (See figure 138)

1шт.

A77080

KIT

- parking brake buzzer, Includes: Ref. 45 - 48

1шт.

45

A38787

BUZZER

- warning, parking brake kit

1шт.

46

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

Parking brake buzzer kit Hex, 1/4"-20 x 3/8", G5, Full Thd

2шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Parking brake buzzer kit 1/4"

2шт.

48

A76466

HARNESS

WIRE - parking brake buzzer kit

2шт.

49

A76465

BRACKET

- clutch (See figure 130), parking brake buzzer kit

1шт.
