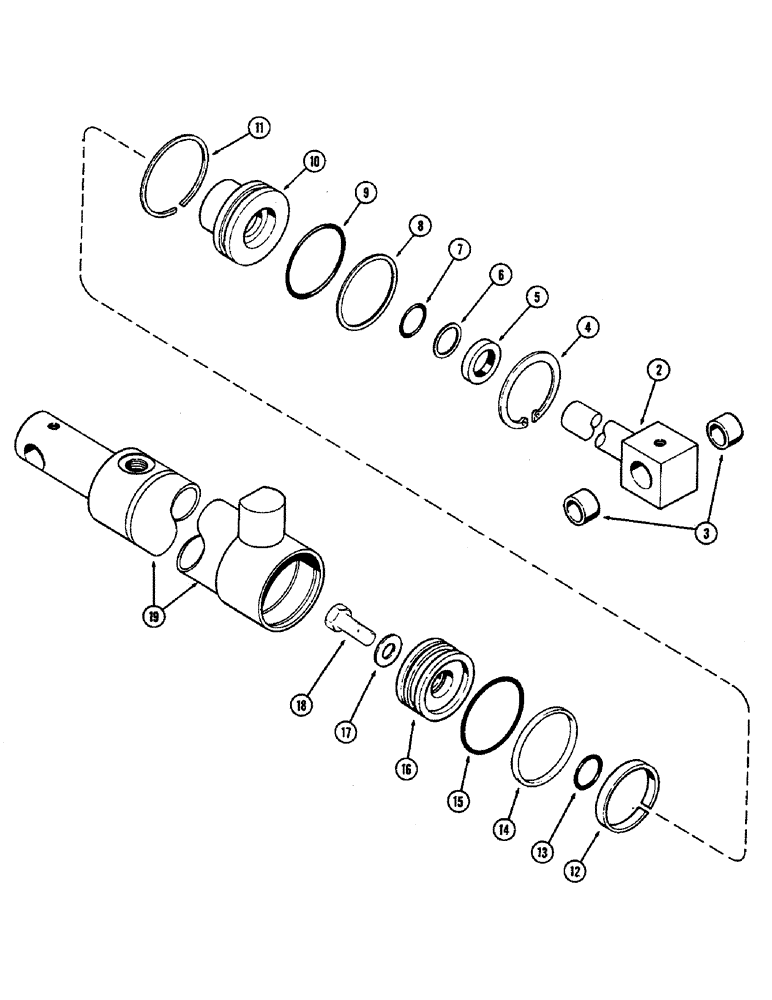

Запчасти Case IH 2470 (172) - G34873 FRONT STEERING CYLINDER, 2-1/2 INCH DIAMETER X 8 INCH STROKE (05) - STEERING

G34873

CYLINDER

ASSEMBLY - steering (Order G100068 figure 170), Includes: Ref. 2 - 17

2шт.

2

G34039

ROD

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- cylinder rod

2шт.

4

D23649

SNAP RING,2.625", Int, #262

RING - retaining, 2-27/32" free diameter (72.23 MM)

1шт.

G33967

GLAND

ASSEMBLY - cylinder (Order G35381 figure 170), Includes: Ref. 5 - 8

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

6

A35899

RING

- back-up

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.17 MM)

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

8

G33953

BACK-UP RING,2.407" ID

RING - back-up, 2-13/32" ID (61.11 MM)

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

9

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- 2-3/8 x 2-5/8 x 1/8" (60.32 x 66.67 x 3.17 MM)

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G35381, figure 170)

1шт.

11

G34872

RING

- retaining, 2-7/8" free diameter (73.02 MM)

1шт.

12

G100714

RING

- wear, piston (Replaces G34805)

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

13

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- seal, rod

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

14

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

15

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal, 2-17/32 x 2-23/32 x 5/32" (64.29 x 69.05 x 3.96 MM)

1шт.

Part of Seal Repair Kit P/N G34874.

1шт.

16

G34871

PLUNGER

PISTON - cylinder

1шт.

17

L30674

WASHER

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

1шт.

18

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- 1/2 x 1-1/2" NC hex. head capscrew

1шт.

19

G33944

TUBE,16.32" L

- cylinder

1шт.

G34874

SEAL,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

KIT, repair, Includes: Ref. 5 - 9 and 12 - 15

1шт.
