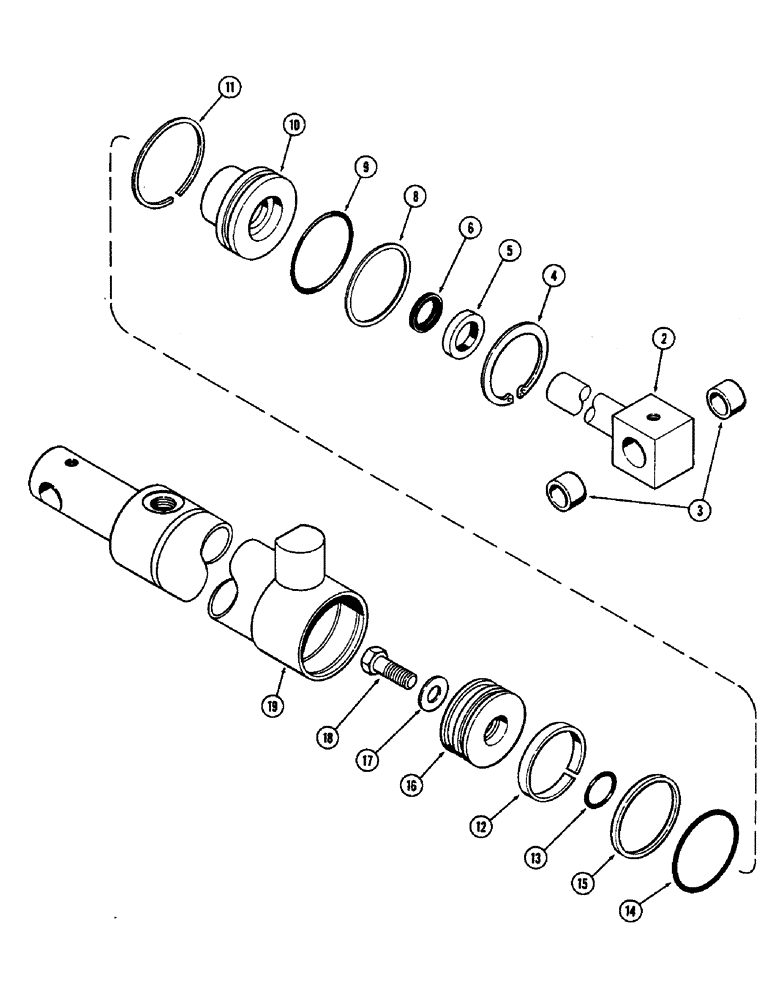

Запчасти Case IH 2470 (168) - FRONT STEERING CYLINDER, 2-1/2" (63.5 MM) DIAMETER X 9-7/8" (250.83MM) STROKE (05) - STEERING

G35514

CYLINDER

ASSEMBLY - front steering, Includes: Ref. 2 - 19

2шт.

2

G34039

ROD

ASSEMBLY - piston, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- rod eye

2шт.

4

D23649

SNAP RING,2.625", Int, #262

Ring Snap, , gland 2.625", Int, #262

1шт.

G35381

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod

1шт.

Part of Seal Kit P/N G35382.

1шт.

6

G35372

SEAL

- rod

1шт.

Part of Seal Kit P/N G35382.

1шт.

8

G33953

BACK-UP RING,2.407" ID

RING - back up, 2-13/32" (61.12 MM) ID

1шт.

Part of Seal Kit P/N G35382.

1шт.

9

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G35382.

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G35381)

1шт.

11

G34872

RING

- wire

1шт.

12

G100714

RING

- wear, piston, 2-1/2 x 2-3/4 x 3/8" (63.5 x 70.3 x 9.52 MM)

1шт.

Part of Seal Kit P/N G35382.

1шт.

13

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- rod seal

1шт.

Part of Seal Kit P/N G35382.

1шт.

14

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston

1шт.

15

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal

1шт.

16

G35510

PISTON

- cylinder

1шт.

17

G35009

WASHER

- piston bolt

1шт.

18

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- 1/2 x 1-1/2" NC hex. (Grade 8)

1шт.

19

G35515

TUBE,18.20" L

- cylinder

1шт.

G35382

KIT

seal, Includes: Ref. 5 - 9, 12 and 13

1шт.
