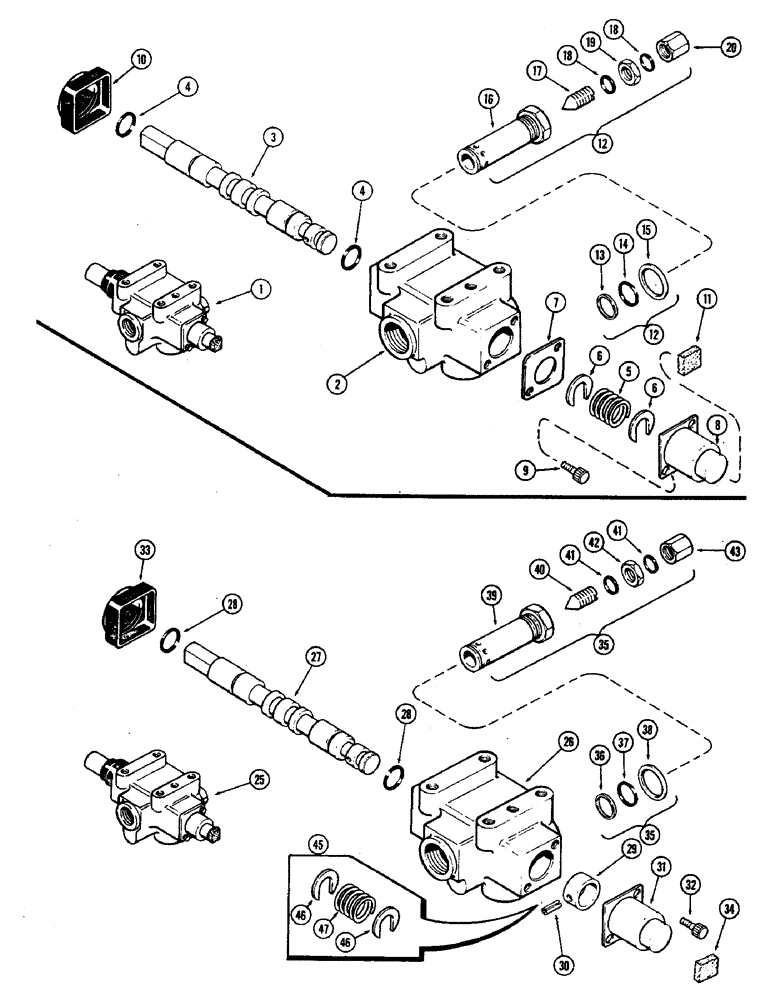

Запчасти Case IH 2470 (164) - REAR STEERING VALVE ASSEMBLY (05) - STEERING

1

A145273

VALVE

ASSEMBLY - rear steering (Replaces A77047), Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve detent

1шт.

4

A149442

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool stage sealing, 47/64 x 15/16 x 7/64" (18.65 x 23.81 x 2.77 MM) (Replaces S6151)

2шт.

5

A145724

SPRING

- valve spool centering (Replaces A45184)

1шт.

6

T24401

WASHER

- C, centering spring

2шт.

7

A45185

SHIM,.0299" Thk

Control valve (0.76 mm) .0299" Thk

1шт.

7

A45186

SHIM,.005" Thk

Control valve (0.13 mm) .005" Thk

1шт.

7

A45187

SHIM,.010" Thk

Control valve (0.25 mm) .010" Thk

1шт.

8

T22221

CAP

- spool end stop

1шт.

9

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- 1/4"-20 x 5/8" Fillister head

2шт.

10

A76236

BOOT

- spool dust protection

1шт.

11

A76237

FILTER

- valve cap breather

1шт.

12

A44494

VALVE

ASSEMBLY - Brute Force cartridge, Includes: Ref. 13 - 20

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- sleeve to body

1шт.

14

A44179

PACKING

- sleeve, Serial Range: o-ring-body

1шт.

15

A45355

GASKET

- relief valve sleeve

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A44494)

1шт.

17

178-807

SCREW

- set, slotted, relief valve

1шт.

18

A29468

GASKET

- relief valve

2шт.

19

NUT - 1/2" NF hex, jam (Replaces 25-158)

1шт.

20

T22210

COVER

CAP - valve set screw

1шт.

25

A77047

CONTROL VALVE

VALVE ASSEMBLY - rear steering (Order A145273), Includes: Ref. 26 - 43, Serial Range: -8825155

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - valve spool, Serial Range: -8825155

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - valve detent, Serial Range: -8825155

1шт.

28

A149442

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool stage sealign, 47/64 x 15/16 x 7/64" (18.65 x 23.81 x 2.77 MM) (Replaces S6151), Serial Range: -8825155

2шт.

29

A44159

SLEEVE

- valve spool retaining stop (Order A145742 kit, ref. 45), Serial Range: -8825155

1шт.

30

138-115

LOCK PIN,7/32" x 1 1/8", Slotted

PIN, LOCK, 7/32" x 1-1/8", Slotted, Valve spool stop sleeve, Serial Range: -8825155

1шт.

31

T22221

CAP

- spool end stop, Serial Range: -8825155

1шт.

32

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- 1/4"-20 x 5/8" Fillister head, Serial Range: -8825155

2шт.

33

A76236

BOOT

- spool dust protection, Serial Range: -8825155

1шт.

34

A76237

FILTER

- valve cap breather, Serial Range: -8825155

1шт.

35

A44494

VALVE

ASSEMBLY - Brute Force cartridge, Includes: Ref. 36 - 43, Serial Range: -8825155

1шт.

36

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- sleeve to body, Serial Range: -8825155

1шт.

37

A44179

PACKING

- sleeve o-ring to body, Serial Range: -8825155

1шт.

38

A45355

GASKET

- relief valve sleeve, Serial Range: -8825155

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A44494), Serial Range: -8825155

1шт.

40

178-807

SCREW

- set, slotted, relief valve, Serial Range: -8825155

1шт.

41

A29468

GASKET

- relief valve, Serial Range: -8825155

2шт.

42

129-165

JAM NUT,Jam, 1/2"-20, G5

(Replaces 25-158) Jam, 1/2"-20, G5, Serial Range: -8825155

1шт.

43

T22210

COVER

CAP - valve set screw, Serial Range: -8825155

1шт.

45

A145742

KIT

- valve rework, Includes: Ref. 46 and 47, Serial Range: -8825155

1шт.

46

T24401

WASHER

- C, rear steering valve, Serial Range: -8825155

2шт.

47

A145724

SPRING

- rear steering valve, Serial Range: -8825155

1шт.
