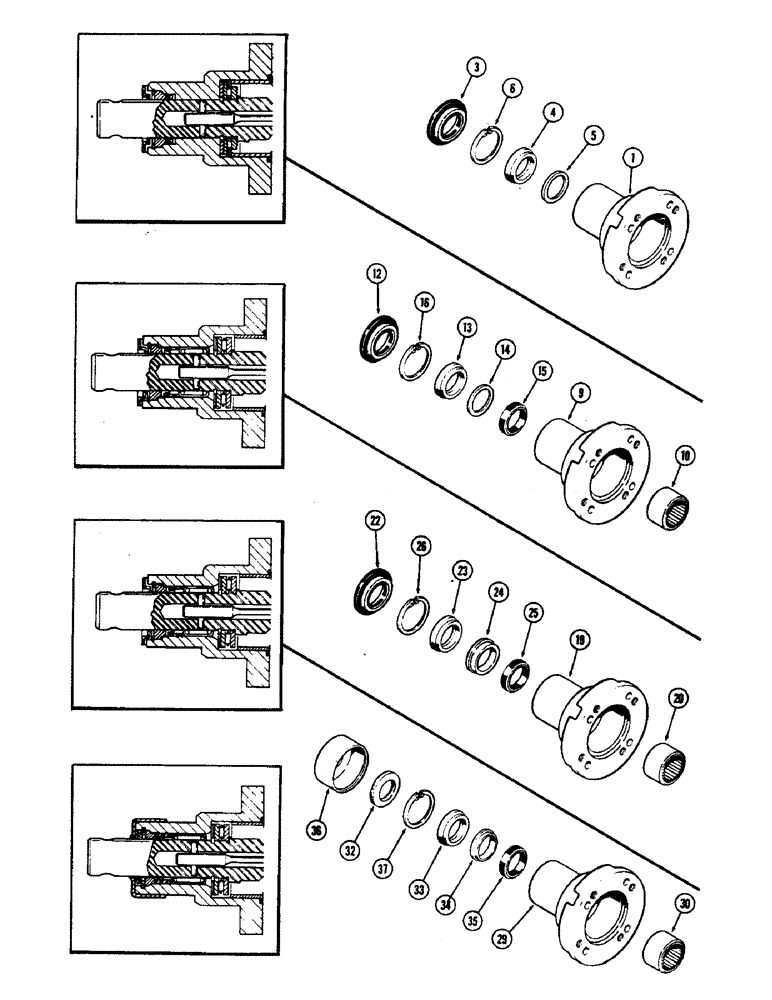

Запчасти Case IH 2470 (162) - STEERING PUMP UPPER COVER AND SEALS (05) - STEERING

1

D65139

COVER

- upper

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, drive shaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - dirt, plastic

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

5

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

6

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer

1шт.

9

D65139

COVER

ASSEMBLY - upper, Includes: Ref. 10

1шт.

10

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, with plastic cage

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, drive shaft, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - dirt, plastic

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

14

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

16

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer

1шт.

19

D65139

COVER

ASSEMBLY - upper, use w/ A139842 pump w/o end cover dust shield, Includes: Ref. 20

1шт.

20

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, with plastic cage, use w/ A139842 pump w/o end cover dust shield

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, drive shaft, use w/ A139842 pump w/o end cover dust shield, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - dirt, plastic, use w/ A139842 pump w/o end cover dust shield

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - seal, use w/ A139842 pump w/o end cover dust shield

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - shaft, use w/ A139842 pump w/o end cover dust shield

1шт.

25

NSS

NOT SOLD SEPARAT

RING - seal, use w/ A139842 pump w/o end cover dust shield

1шт.

26

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, use with A139842 pump without end cover dust shield

1шт.

29

D65139

COVER

ASSEMBLY - upper, use w/ A76910 pump w/ end cover dust shield, Includes: Ref. 30

1шт.

30

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, with plastic cage, use w/ A76910 pump w/ end cover dust shield

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, drive shaft, use w/ A76910 pump w/ end cover dust shield, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - felt, use w/ A76910 pump w/ end cover dust shield

1шт.

33

NSS

NOT SOLD SEPARAT

SPACER - seal, use w/ A76910 pump w/ end cover dust shield

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, use w/ A76910 w/ end cover dust shield

1шт.

35

NSS

NOT SOLD SEPARAT

RING - seal, use w/ A76910 pump w/ end cover dust shield

1шт.

36

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

use w/ A76910 pump w/ end cover dust shield

1шт.

37

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, use with A76910 pump with end cover dust shield

1шт.
