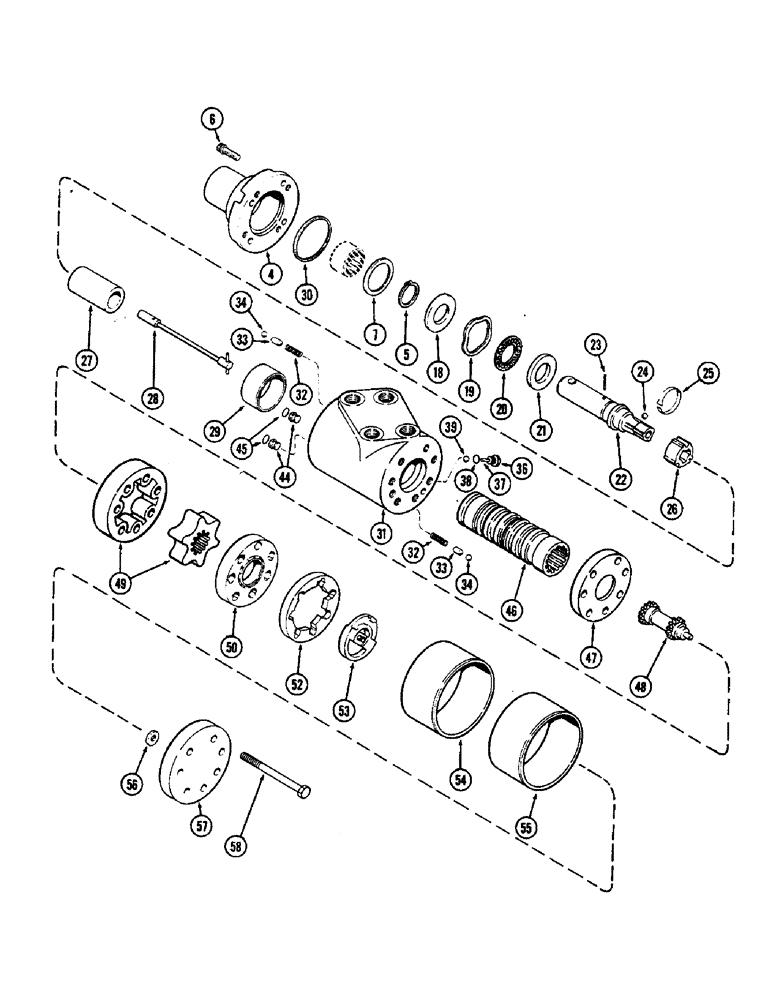

Запчасти Case IH 2470 (160) - STEERING HAND PUMPS (05) - STEERING

A141906

PUMP

ASSEMBLY - front steering, Includes: Ref. 4 - 58, Start Serial: 8786203

1шт.

A139842

VALVE

PUMP ASSEMBLY - front steering (Order A141906), Includes: Ref. 4 - 58, Serial Range: -8786203

1шт.

A76910

VALVE

PUMP ASSEMBLY - front steering (Order A141906), Includes: Ref. 4 - 58, Serial Range: -8786203

1шт.

4

REF

INSTRUCTION

COVER ASSEMBLY AND SEALS - (See figure 162)

1шт.

5

A43720

RING

- retaining, needle bearing

1шт.

6

A43567

BOLT

- end cover

4шт.

7

A44435

SHIM

KIT - needle bearing cover

1шт.

18

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

19

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave spring

1шт.

20

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover

1шт.

21

F19634

BEARING WASHER

WASHER - thrust, bearing

1шт.

22

A43551

SHAFT

- input

1шт.

23

D53297

PIN

- retaining, torsion bar to shaft

1шт.

24

211-9

BALL,5/16" Dia

- meter (7.94 MM) 5/16" Dia

1шт.

25

A43560

SPRING

RETAINER - spring, ball

1шт.

26

A43554

RING

- drive

1шт.

27

A44198

SPACER

- drive link

1шт.

28

A44197

BAR

T-BAR ASSEMBLY - torsion

1шт.

29

A43728

SPACER

- shaft pre-load spring

1шт.

30

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

33

NSS

NOT SOLD SEPARAT

ROLLER - housing

2шт.

34

NSS

NOT SOLD SEPARAT

BALL - 9/32" diameter (7.14 MM)

1шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - relief valve, Includes: Ref. 37 - 39

1шт.

37

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

39

211-7

BALL,1/4" Dia

(6.35 mm) 1/4" Dia

1шт.

L36015

PLUG

KIT - plug and o-ring, Includes: Ref. 44 and 45

2шт.

44

A43565

PLUG

- body

1шт.

45

A43729

O-RING

- plug

1шт.

46

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

47

A43569

BUSHING

PLATE - spacer

1шт.

48

A44199

LINK

- drive

1шт.

49

A45013

ROTOR

SET - pump (Replaces A44200)

1шт.

50

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSEMBLY - pump, not shown, Includes: Ref. 52 and 53

1шт.

52

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

53

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

54

A45693

SLEEVE,77.572mm ID x 82.804mm OD x 69.8mm L

- rotor (Replaces A45285)

1шт.

55

A45286

RETAINER

- rotor seal

1шт.

56

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drag link

1шт.

57

A45182

COVER

END COVER - rotor, includes pin (Replaces A43580)

1шт.

58

A44196

BOLT

- sealing, end cover

7шт.
