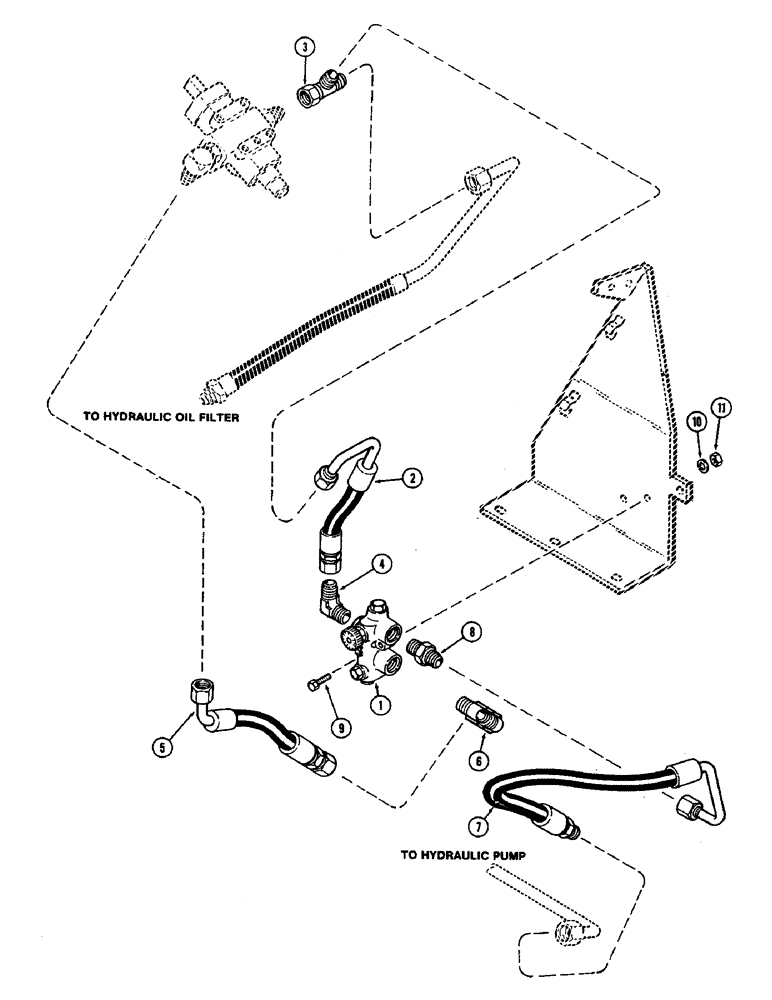

Запчасти Case IH 2470 (158) - FLOW DIVIDER KIT, REAR STEERING (05) - STEERING

A143952

PACKAGE

KIT - flow divider, Includes: Ref. 1 - 11

1шт.

1

A143938

VALVE

- flow divider

1шт.

2

A143957

HOSE

- divider, Serial Range: valve-tee

1шт.

3

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

3/4" tube 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

4

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 5/8" tube x 3/4" PT

1шт.

5

A145018

HOSE

- divider valve to rear steering valve

1шт.

6

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 5/8" tube x 3/4" PT

1шт.

7

A145027

HOSE

- 3 stage pump to flow divider

1шт.

8

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - 5/8" tube x 3/4" PT straight

1шт.

9

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
