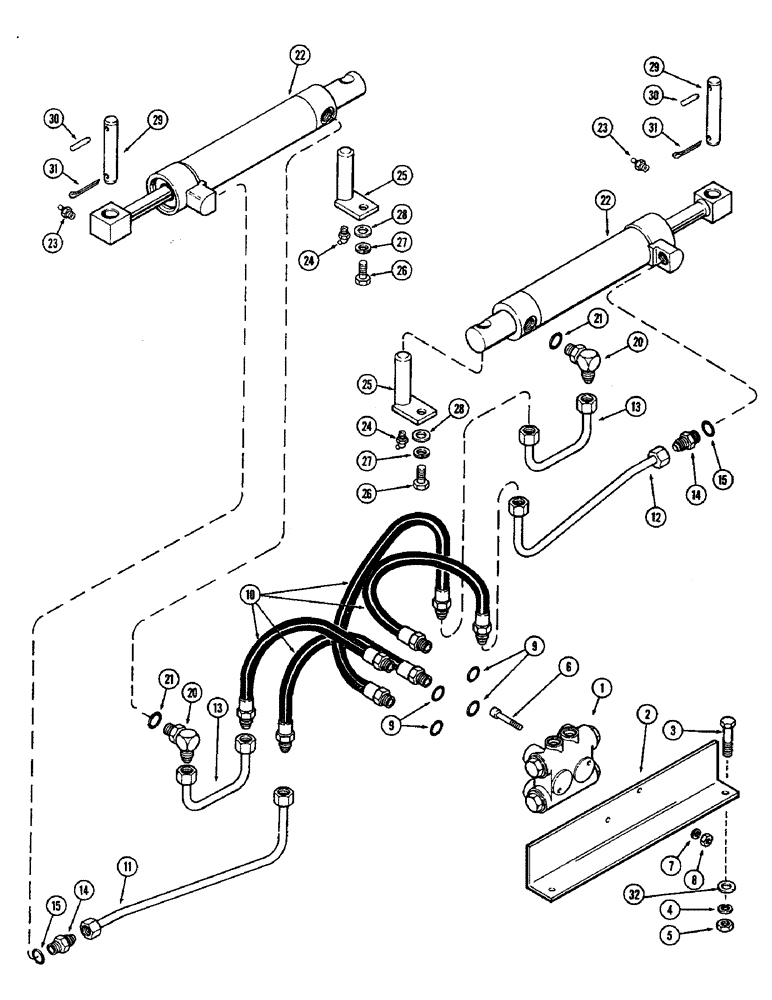

Запчасти Case IH 2470 (156) - REAR HYDRAULIC STEERING, CONTD (05) - STEERING

1

A77054

VALVE

ASSEMBLY - check, rear steering (See figure 164)

1шт.

2

A143377

ANGLE

- rear steering check valve mounting (replaces A77055)

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces 13-632) Hex, 3/8"-16 x 2", G5

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

(Replaces 25-106) 3/8"-16, G5

2шт.

6

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A77056

HOSE

- check valve to rear cylinder

4шт.

11

A77058

TUBE

- check valve to RH cylinder

1шт.

12

A77059

TUBE

- check valve to LH cylinder

1шт.

13

A77057

TUBE

- check valve to steering cylinder

2шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 15

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 21

2шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, rear (See figure 174 and 176)

2шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

25

A76545

PIN

- steering cylinder

2шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78)

2шт.

29

A160382

PIN,25.4mm OD x 132.08mm L

- steering cylinder (Replaces A75640)

2шт.

30

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, 1/4" x 1 1/2", Type E

2шт.

31

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

32

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.38 MM)

4шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.38 MM)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.38 MM)

1шт.
